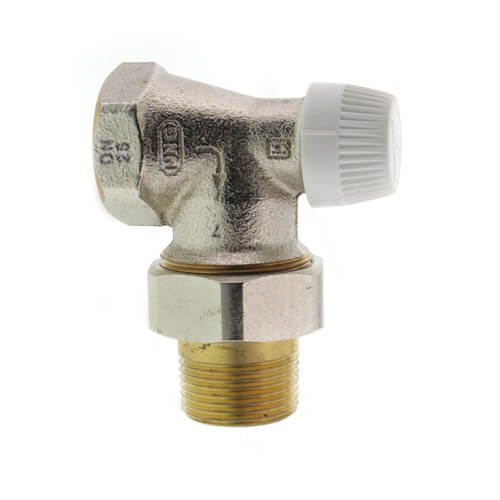

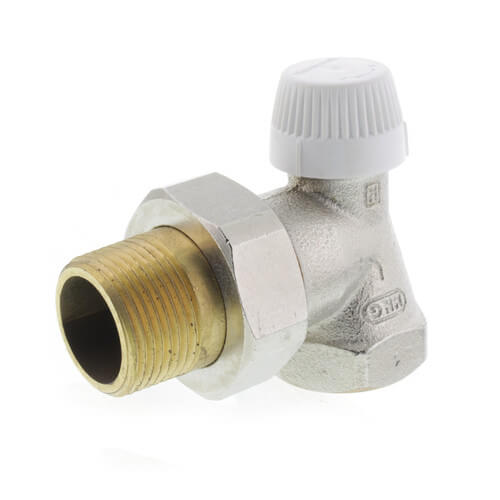

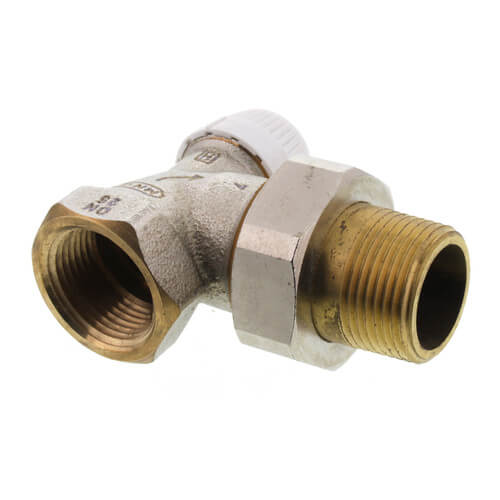

1" Vertical Angle Valve For Standard Capacity Radiator
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
V2040ESL25 has been discontinued
Discontinued August 26, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
1"
Threaded Connection
Normally Open
248°F Max
2.7 Cv
70500 BTU Capacity
Description
–
Product Overview:
- One-Pipe Steam Thermostatic Radiator Valves - Allow automatic temperature control in one-pipe steam or hot water systems for free standing radiators, convectors and other heating units with standard capacity requirements. Provide comfort and energy savings.
Product Features:- Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
- Adjustable balancing cartridge design made from resilient material (EPDM), ensures tight shut-off on steam and hot water systems.
- Nickel plated brass casted body.
- Replaceable cartridge for easy service with service tool.
- Controls include valve body, steam air vent.
- Used with T100 set point and capillary actuators.
- No electrical connection required for non-electric actuators.
- Normally open without control mounted.
Product Specifications:- Description: 1” Angle Pattern Valve for Standard Capacity Radiator
- Application Type : Use where installation space is limited
- Pipe Size (inch): 1 in.
- Pipe Size (DN): DN25
- Body Pattern: Angle
- Capacity: standard
- Capacity (Cv): 2.7 Cv
- Capacity (Btu/hr-steam): 70,500 Btu/hr
- Connection Type: Threaded
- Pressure Ratings (Hot Water (psi)): 150 psi maximum
- Pressure Ratings (Hot Water (kPa)): 1034 kPa maximum
- Pressure Ratings (Steam (psi)): 15 psi maximum
- Pressure Ratings (Steam (kPa)): 103 kPa
- Differential Pressure Ratings (psi): 17 psi maximum
- Differential Pressure Ratings (psi): With T100 or T200: 15 psi
- Differential Pressure Ratings (psi): With MV100: 36 psi
- Differential Pressure Ratings (psi): For low noise: 3 psi
- Temperature Ratings (F): 248 F Maximum
- Temperature Ratings (C): 120 C Maximum
- Dimensions (in.): 1 1/8 in. x 2 5/8 in.
- Materials (Body): Nickel Plated Bronze
- Cartridge Change Tool: Yes - Use VA8200A001
- Used With: T100
- Inlet Connection Size (in.): 1 in.
- Inlet Connection Type: NPT
- Outlet Connection Type: Threaded
Specs
–
| Application: | Hot Water |
|---|---|
| Size: | 1" |
| Connection Type: | Threaded |
| Position: | Normally Open |
| Temperature Range (F): | 248°F Max |
| Flow Capacity (Cv): | 2.7 |
| Capacity (BTU): | 70500 |
| BTU: | 70500 Btu/hr (steam) |
