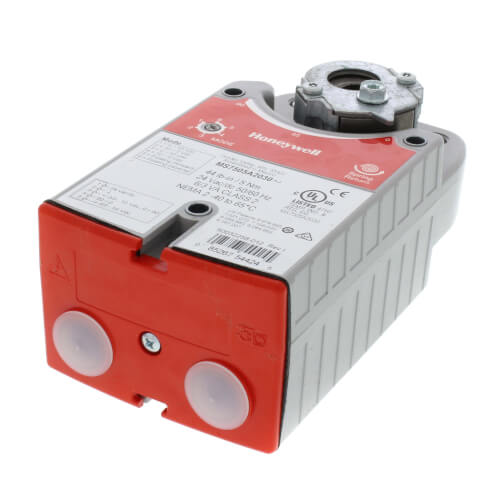

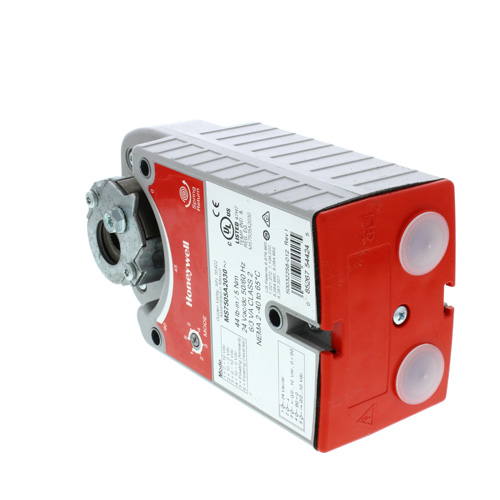

Floating Spring Return 44 lb-in., 5 Nm, Direct Coupled Actuator
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$352.52 each
In Stock
Get 27 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
44 lb-in Torque
-40°F to 149°F
Description
–
Includes: Mounting bracket, self-centering shaft adapter
Overview:
The MS7505 is a 44 lb-in (5Nm), spring return direct-coupled, low voltage actuator that accepts floating, on/off (SPDT), or modulating (0/2-10 Vdc) control and feedback for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.
Features:
Overview:
The MS7505 is a 44 lb-in (5Nm), spring return direct-coupled, low voltage actuator that accepts floating, on/off (SPDT), or modulating (0/2-10 Vdc) control and feedback for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.
Features:
- Brushless DC submotor with electronic stall protection on all models
- Self-centering shaft adaptor (shaft coupling) for wide range of shaft sizes
- Models available with combined floating and modulating control in a single device
- Models available with an internal end switch
- Access cover to facilitate connectivity
- Durable plastic housing with built-in mechanical end limits
- Spring return direction field selectable
- Shaft position indicator and scale
- UL (cUL) listed and CE compliant
- All models are plenum rated per UL873
Specs
–
| Actuator Type: | Damper Valve |
|---|---|
| Application: | HVAC |
| Torque: | 44 lb-in |
| Control Signal: | Floating SPDT On/Off Switch |
| Supply Voltage: | 24 Vac/dc |
| Temperature Range (F): | -40°F to 149°F |
| Product Type: | Actuator |
