$183.89 each
In Stock
Get 40 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 10870
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075, 825 RPM
Reversible
1/8, 1/3 HP
Description
–

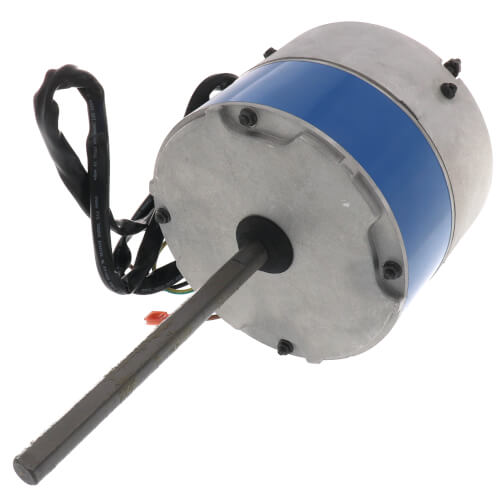

Azure is an electronically controlled motor (ECM) that replaces a multitude of
applications.
Azure motors are simple to install and Azure condenser fan motors connect the same as a standard PSC condenser fan motor, BUT WITHOUT the capacitor. Just plug the motor into a 115V power source (using supplied programming cable) and select 1 of 4 operating modes and then install the motor.
Unlike other ECM motors, an outboard surge protector is included with the Azure wiring harness. This is a replaceable device that is much less expensive to replace than replacing the entire motor in the event of a power surge.
Specifications:
Azure motors are simple to install and Azure condenser fan motors connect the same as a standard PSC condenser fan motor, BUT WITHOUT the capacitor. Just plug the motor into a 115V power source (using supplied programming cable) and select 1 of 4 operating modes and then install the motor.
Unlike other ECM motors, an outboard surge protector is included with the Azure wiring harness. This is a replaceable device that is much less expensive to replace than replacing the entire motor in the event of a power surge.
Specifications:
- Multi horsepower, self-adjusting
- 825/1075 RPM, single speed
- Reversible rotation
- High Efficiency ECM
- Mounting: 10874 - Shaft down only; 10870 - Shaft Up/down
- No capacitor required
- Water slinger on shaft
- UL Recognized
Specs
–
| Horse Power: | 1/8 1/3 |
|---|---|
| RPM: | 1075 825 |
| Voltage: | 208/230V |
| Bearings: | Ball |
| Rotation: | Reversible |
