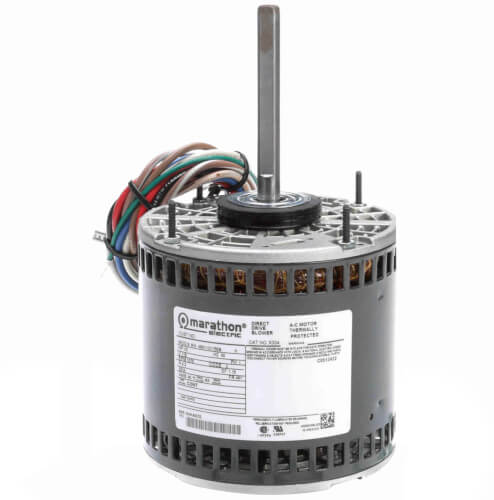

Main product image of Direct Drive Fan & Blower Motor - 1/2 HP, 1075 RPM, 1 PH, Selective CCW (115V)

Hover image to zoom

Direct Drive Fan & Blower Motor - 1/2 HP, 1075 RPM, 1 PH, Selective CCW (115V)

Name: Direct Drive Fan & Blower Motor - 1/2 HP, 1075 RPM, 1 PH, Selective CCW (115V)
Brand: Marathon Motors
SKU: X004
Price: 176.60 USD
Availability: InStock

Brand:

Marathon Motors

SKU:

X004

Rating:

(0)

Q&A:

(0)

Direct Drive Fan & Blower Motor - 1/2 HP, 1075 RPM, 1 PH, Selective CCW (115V)

Hover image to zoom

X004 has been discontinued

Discontinued May 4, 2022

This product was discontinued by the manufacturer.

MANUALS (1)

User Guide

Product Highlights

–

115V

1075 RPM

Selective CCW

1/2 HP

Resilient Ring - Extended Studs

6.2 Amps

Description

–

Direct Drive Fan & Blower Motor - 1/2 HP, 1625 RPM, 1 PH, Selective CCW (115V)

Features:

Open frames and brackets (except X011 and X012 have enclosed shaft end bracket)
Single and multi-speed models as noted
Grommeted lead exit
Weather resistant reversing plug
2-1/4" resilient ring mounting except where noted (base not included, see Accessories section)
2 1/2" adapter rings supplied, shipped loose in box
Extended thru-bolts on shaft end
30" long leads
Automatic reset thermal protector
Ball bearings
UL Recognized and CSA Certified
Capacitor not included, see Accessories section

***Note: Image may not be actual representation of item.

Specs

–

Type:	Fan & Blower
RPM:	1075
Amperage:	6.2
Horse Power:	1/2
Voltage:	115V
Phase:	1
Rotation:	Selective CCW
Mount:	Resilient Ring - Extended Studs
Bearings:	Ball
Frame:	48Y
Enclosure Type:	Open Air Over
Motor:	Permanent Split Capacitor
Duty:	Continuous
Poles:	6
Speeds:	3
Insulation Class:	B
Max Ambient Temp (°F):	104°F
Overload Protection:	Automatic Lock Rotor Only
Motor Orientation:	Horizontal
