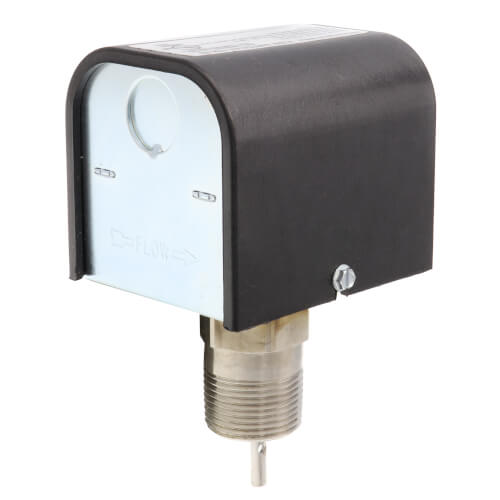

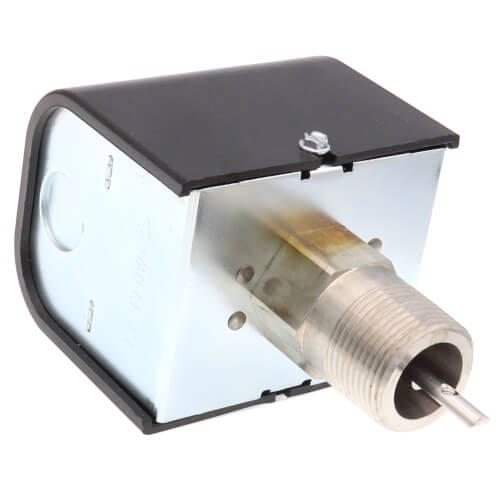

FS4-3S, 1" Flow Switch w/Stainless Steel Body, monel bellows
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$546.00 each
In Stock
Get 3 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: FS4-3S
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
1" Connection
7.4 Amps
120v, 240v
160 MAX PSI
32°F - 300°F
Description
–
Universal design serves the widest variety of applications. For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others
Features
Optional features Time delay (5 or 20 seconds)– Two SPDT switches to make or break two separate circuits Reinforced paddles Materials of construction suitable for corrosive liquids Fire sprinkler service - Model FS4-3F only BSPT threads Maximum temperature 300 Deg. F (149 Deg. C) Maximum pressure 160 psi (11.3 kg/cm2)
Features
- Replacement for common flow switches from Johnson/Penn, Potter/Taco, Watts, Hydrolevel and other manufacturers
- 1" NPT
- Two electrical knock-outs allows connection from either end
- Sensitivity adjusting screw makes flow adjustment easy
- Single pole, double throw snap switch
- Hardened stainless steel bearings minimize friction
- Sealed Monel bellows
- Four stainless steel paddles included -
1", 2", 3" & 6" (25, 50, 80, & 150mm)
Specs
–
| Size: | 1" |
|---|---|
| Connection Size: | 1" |
| Switch: | SPDT |
| Application: | Liquid Flow |
| Type: | General Purpose |
| Amperage: | 7.4 |
| Voltage: | 120v 240v |
| Max Pressure (PSI): | 160 |
| Hertz: | 50 60 |
| Temperature Range (F): | 32°F - 300°F |
