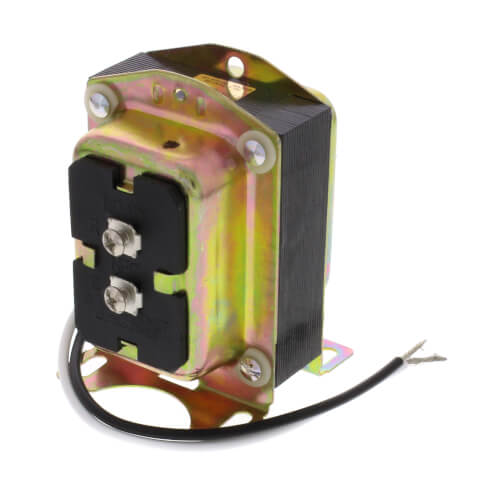

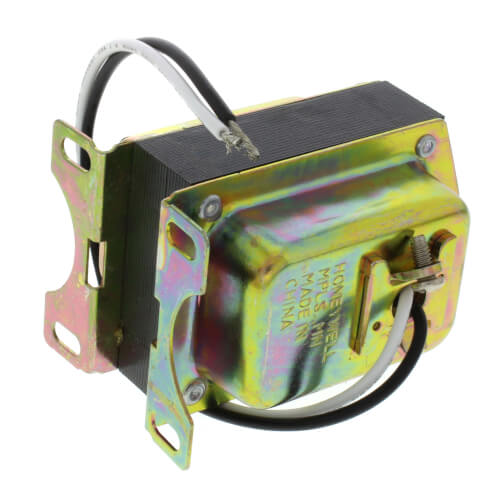

Foot Mounted, Plate Mounted, Clamp Mounted or Panel Mounted 120 Vac Transformer (40VA), AT140A1000
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$26.67 each
In Stock
Get 97 Mon, Jun 15
Order by today, receive Monday
MANUALS (3)
This item replaces: AT140A1034
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Plate, Foot, Clamp
-20°F - 105°F
3-3/16"
3-1/8" Depth
Description
–
Foot mounted, plate mounted, clamp mounted or panel mounted 120 Vac Transformer with Metal end bells. Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Specifications:
Features:
Specifications:
- Foot mounted, plate mounted, clamp mounted or panel mounted 120 Vac Transformer with Metal end bells
- Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
- 9 in. leadwires
- 229 mm leadwires
- Two Screw Terminals
- Dimensions (in.): 3-3/16 in. high x 2-3/8 in. wide x 3-1/8 in. deep
- Dimensions (mm): 81 mm high x 60 mm wide x 79 mm deep
- Approvals, Underwriters Laboratories Inc - UL Listed: A,C,F models. File # E14881
- Approvals, Canadian Standards Association - CSA Certified: A & B models.
- Includes Metal end bells
Features:
- Rated at 40 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Specs
–
| Mount: | Plate Foot Clamp |
|---|---|
| Application: | 24v Controls |
| VA Rating: | 40 |
| Voltage (Primary): | 120V |
| Voltage (Secondary): | 27 V.O.C. |
| Width: | 2-3/8" |
| Height: | 3-3/16" |
| Depth (Inches): | 3-1/8" |
| Wiring: | 2 Screw Terminals |
| Electrical Output: | 24 Vac at 40 VA |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
| Features: | Metal End Bells |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Mount
VA Rating
Voltage (Primary)
Voltage (Secondary)
CURRENT ITEM
Plate
Foot
Clamp
Foot
Clamp
40
120V
27 V.O.C.
You May Also Need
Product Reviews
4.95 out of 19 reviews
100% would recommend this product
5 star
95%
4 star
5%
3 star
0%
2 star
0%
1 star
0%

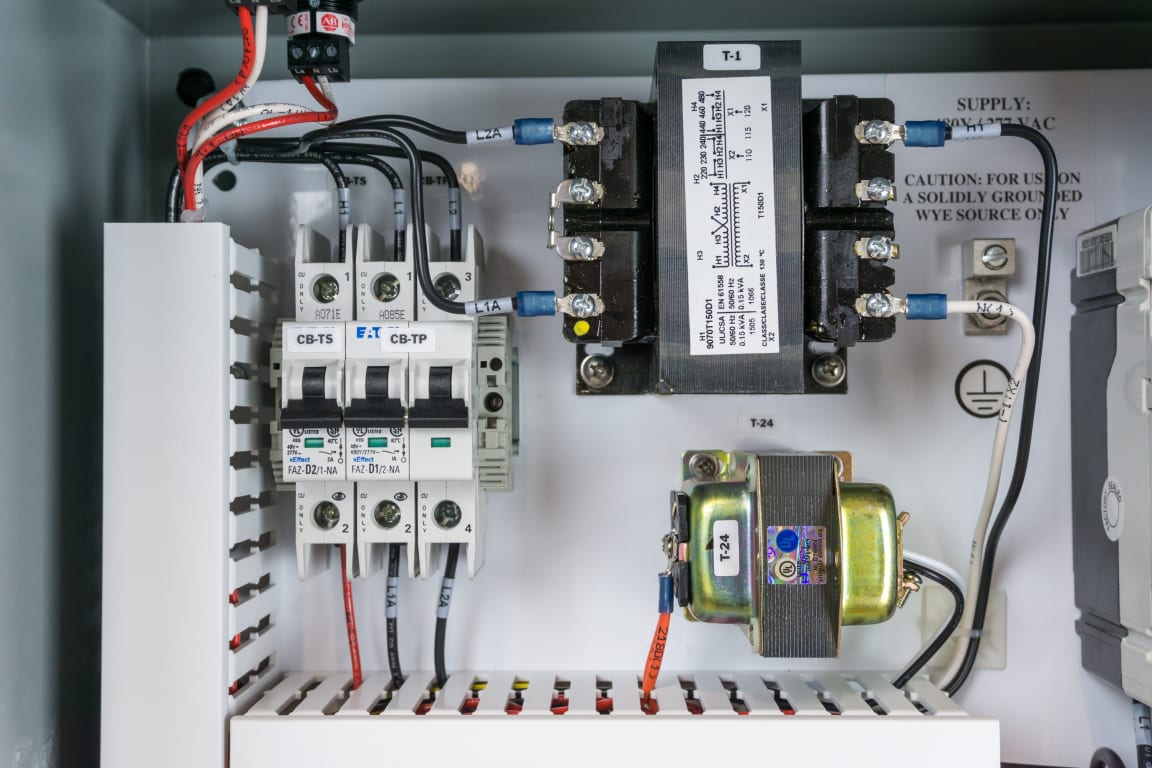

Customer Images
Showing 1-10 of 19 reviews
Easy Install
Easy to install, works fine.
Winds
MN
8 months ago
Verified Buyer
Was this review helpful to you?
Great service and products
Fast and swift shipping
joe
NY
1 years ago
Verified Buyer
Was this review helpful to you?
good quality
boiler
Spike
Somerset Ma.
2 years ago
Verified Buyer
Was this review helpful to you?
This is the second one that I purchased for two projects
I purchased one for a Google nest thermostat and the second for a video doorbell. They worked perfectly on both.
Vinny
Pawling NY
2 years ago
Verified Buyer
Was this review helpful to you?
Yes, I would buy this product again.
Easy install to fix my AC/Furnace.
Just do it
Arlington Heights, IL
6 years ago
Verified Buyer
Was this review helpful to you?
I always purchase these
A good solid Transformer, which are consistent and last.
PATRICk
NJ - New Jersey
7 years ago
Verified Buyer
Was this review helpful to you?
Works very well
Transformer works well. Produces very little heat and no buzzing sound. Fast shipping
Gary
AZ.
7 years ago
Verified Buyer
Was this review helpful to you?
Great website and great product!
Easy to install and works as illustrated
CE
Montgomery,Al.
8 years ago
Verified Buyer
Was this review helpful to you?
I would buy the transformer again
Humidifier on furnace
Mike
Baltimore
8 years ago
Verified Buyer
Was this review helpful to you?
Correct product for the job. Thanks
Service issue. Ordered the part and correct the problem
Adam
Michigan
8 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: Will this power 3 aube RC840's with 1 thermostat? I am trying to control 3 - 240v electric wall heaters with 1 thermostat
Asked by Jack 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffIt should be you should consult a technician.
Was this review helpful to you?
Q: i have a honeywell AT140A1004 transformer plate mounted. will this work as a replacement.
Asked by Ken 13 years ago
Add your answer
-
I'm assuming that the pictured xformer is the one you want to use as a replacement. It looks like that model can be used with a plate mount or stand alone so as long as the winding ratio, voltage and volt-amp (VA) ratings match it should work fine. That's a 5:1 (120Vac to 24Vac) step down control xformer if memory serves. I found the average output on that model to be 27Vac.
Was this review helpful to you?
Q: Can I use this transformer with v8043 E 1004? If so, how many zone valves can I connect to the transformer? I'm installing an 10 zone system expandable to 12 zones.
Asked by Shawn 13 years ago
Add your answer
- Joe
You can use more than one transformer per zone valve but I only use one because it will get overloaded if one valve starts binding up.
Was this review helpful to you?
-
A quick search shows each valve is 7.7 VA, wants to connect minimum 10. However transformer is 40VA, so if all acted at once there would be problems
Was this review helpful to you?
Q: will this transformer be adequate for both a v8043e1012 and a v8043f1051 valve simaltaneously
Asked by Sal 13 years ago
Add your answer
-
Each valve draws .3 amps. A 40va transformer can handle 1.6 amps at 24 volts. So your total of .6 amps is well within the limits of the transformer.
Was this review helpful to you?
- Joe
It may be OK, but do yourself a favor and use two power supplies so if there is a problem you know exactly where it is.
Was this review helpful to you?
