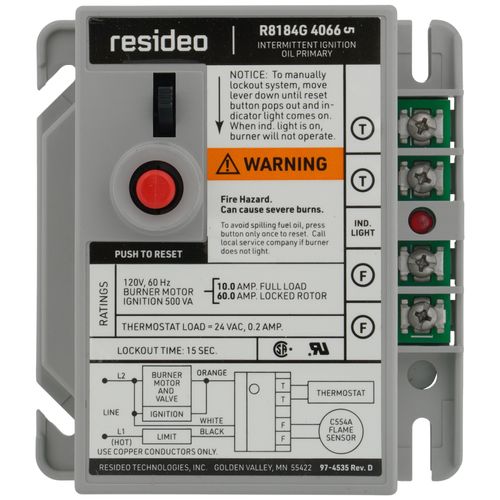

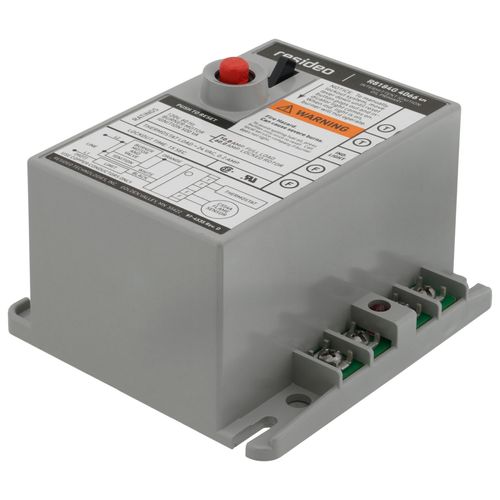

Protectorelay Oil Burner Control with 15 Seconds Lock Out Timing, R8184G4066
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$209.86 each
In Stock
Get 11 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Note: C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
Provides automatic, non-recycling control of an intermittent ignition oil burner system.
Features
Specifications
Provides automatic, non-recycling control of an intermittent ignition oil burner system.
Features
- Description: Protectorelay Oil Burner Control with 15 seconds lock out timing
- Ignition Type: Intermittent
- Timing, Safety Switch: 15 sec.

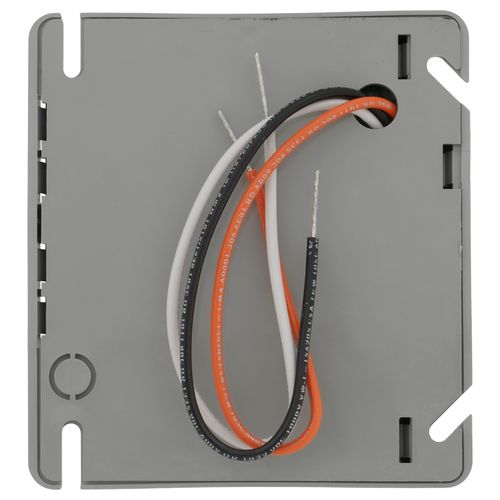

- Mounting Bracket: For mounting on a standard 4 in. X 4 in. junction box or direct mounting on burner housing.
- Electrical Ratings (Full Load): 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
- Electrical Ratings (Locked Rotor): 44.4 A @ 120 Vac; 22.2 A @ 240 Vac
- Alarm Load Ratings (Pilot Duty): 75 VA @ 120/240 Vac, 50-60 Hz; 25 VA @ 24V, 50-60 Hz
- Alarm Load Ratings (resistive): 1.5 A @ 120/240V, 50-60Hz; 3 A @ 24 V, 50-60 Hz
- Dimensions: 4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
- Temperature Range: -40 F to +130 F
- Comments: With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing.
Specifications
- Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
- Solid state flame sensing circuit.
- LED on terminal strip indicates system lockout.
- Remote lockout indication available on some models.
- Enclosed safety switch with external reset button.
- Manual trip lever opens safety switch for system maintenance.
- Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
Specs
–
| Lockout Timing: | 15 Seconds |
|---|
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Lockout Timing
CURRENT ITEM
15 Seconds
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
YES
Worked just as it should.
Mark
Washington
7 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: I'm looking to replace a oil primary part #R8184G 4074 seems to be discontinued. What can I use as a replacement. I looked for one with same specs but could not find one.
Asked by Pete 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffR7284U1004 is the closest replacement
Was this review helpful to you?
