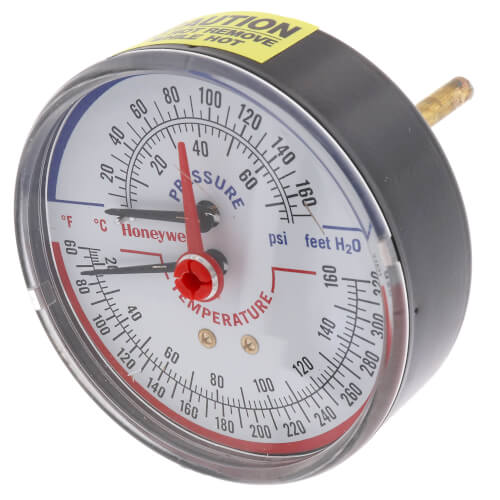

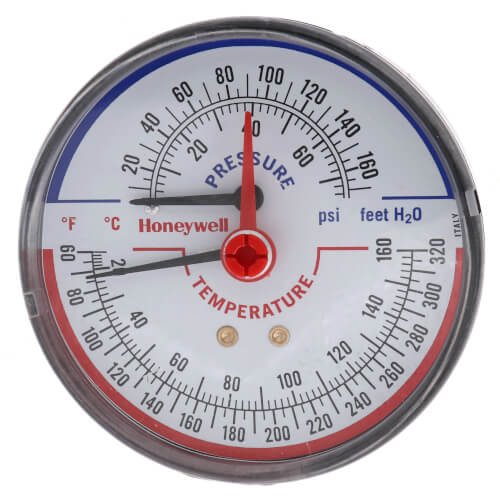

1/4" NPT, 3-1/8" Face, Long Probe Temperature & Pressure Gauge (Tridicator), TD-165
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
- Temperature Range (F): 60 F to 320 F
- Maximum Safe Operating Pressure (psi): 75 psi
- Dial Size (in.): 3-1/8"
- Connection Type: NPT
- Connection Size (in.): 1/4"
- Length (in.): 1-21/32"
- Weight (lb): 0.3 lb
- Comments: Pressure/temperature gauge with relief set point indicator
Specs
| Min Temp (F): | 60°F |
|---|---|
| Application: | Heating Pressure |
| Dial Size: | 3-1/8" |
| Measures: | Celsius Fahrenheit Pressure |
| Temperature Range: | 15° to 160°C |
| Temperature Range (F): | 60°F - 320°F |
| PSI Range: | 0-75 |
| Max Pressure (PSI): | 75 |
| Type: | Dry |
| Connection Type: | 1/4" NPT |
| Length: | 1-21/32" |
| Max Temp (F): | 320ºF |
| Mount: | Back |
Contact
Happy Independence Day!
Compare Similar Products
Fahrenheit
Pressure
You May Also Need
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Great product and customer service.
Most Liked Negative Review
Pressure gauge portion broke in 3 months
Good stuff
Pressure temperature valve
Fast shipping great service
This was a great choice!
Pressure gauge portion broke in 3 months
Great experience
T & P Pressure Gauge
Great service great prices
great gauge
Great product and customer service.
Product Q&A
3 QuestionsQ: What is the best the best way to tee this gauge into 1" copper pipe for a radiant floor heat manifold?
Asked by snidely 14 years ago
Add your answer
Buy a 1"X 1" X 1/2" copper tee. A female adapter 1/2". then a 1/2" X 1/4" black bushing. thread in the Gauge. This should be after the mixing valve on the supply. Have the same one in my house doing in floor. Good Luck
Q: How long is the probe beyond the threaded portion?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe probe beyond the threaded portion of this gauge measures 1-5/8".
exactly 1 1/2 inches
I have a 25 year old Burham boiler for my hot water heating system. A couple of years ago I noticed that the temperature-pressure gauge had corroded and was unreadable. I knew I needed a replacement with a long probe. I searched and searched and called and called, all to to avail. I finally ordered two that looked like they might work: the Weil Mclain (boiler sizes 85-125, SKU 510-218-097) and the Honeywell-Sparco TD-165. The Weil Mclain gauge was a perfect fit and I ended up discarding the Honeywell gauge. My recollection is that the probe is a couple of inches beyond the threaded portion. In-so-far as each is about $20, and depending on the need, you could do the same thing I did and try a couple that look like the best fit based on all available evidence short of having one in you hands. Howard Levy ***.****
Sorry for the late reply, I rarely use this email address. The probe is 1.5 inches long past the threaded portion I hope this helps...if it is not too late.
Q: We need a gauge that mounts from the bottom. Does this gauge do that?
Asked by Leon 16 years ago
Add your answer
Verified Reply- PexSupply StaffThis one is on the back.
