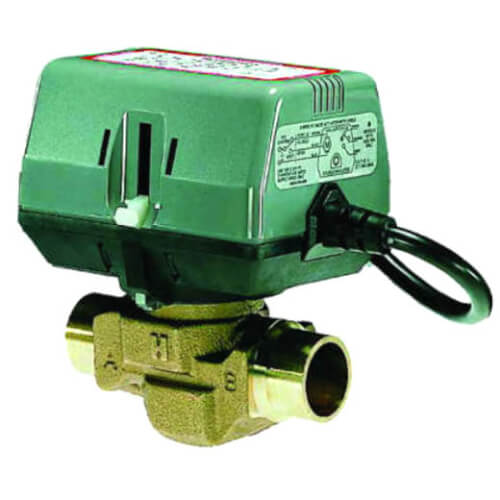

VC6831AM1111 has been discontinued
Discontinued August 16, 2022
This product was discontinued by the manufacturer.
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
–
2-Way
Sweat Connection
4.6 Cv
3/4"
24V
Normally Closed
Description
–
Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT or floating controller such as a room thermostat, Aquastat control, or flow switch.
Features
Features
- Two-way or three-way valves.
- Minimal actuator power consumption. ? Double insulated actuator.
- Quick-connect or one-meter cable electrical connections available.
- Safe for use with potable water.
- Quick and easy replacement of moving parts.
- Actuator head installation does not require draining the system.
- On/Off models with six second nominal timing (floating/modulating models available with 120 second timing).
Specs
–
| Ambient Temperature: | 32 to 140 F |
|---|---|
| Min Ambient Temp (°F): | 32°F |
| Product Type: | Valve Actuator |
| Size: | 3/4" |
| Max Ambient Temp (°F): | 140°F |
| Position: | Normally Closed |
| Actuator Type: | Floating |
| Flow Capacity (Cv): | 4.6 |
| Voltage: | 24V |
| Control Signal: | 24 Vac Floating |
| Timing: | 120 Seconds |
| Body Pattern: | 2-Way |
| Pipe Size: | 3/4" |
| Connection Type: | Sweat |
| End Switch: | No |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Position
Flow Capacity (Cv)
Voltage
Body Pattern
CURRENT ITEM
3/4"
Normally Closed
4.6
24V
2-Way
2 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
1 Question1 Question
Q: I am currently using an aq2000 controll panel with outputs to run a modulating valve 24v common open and close will this valve recieve and work with thoes inputs to modulate a mix temperature to a radiant loop
Asked by superbrain 15 years ago
Add your answer
Verified Reply- HoneywellYou need to use the AQ25242B or AQ25244B and assign the zone numbers for radiant heat as a secondary loop temp under zoning. That will enable the secondary pump and software to mix the temperature to the setting detected on the secondary loop sensor to the set point. The mixing valve terminals are 19, 20, and 21 for a floating mixing valve.
