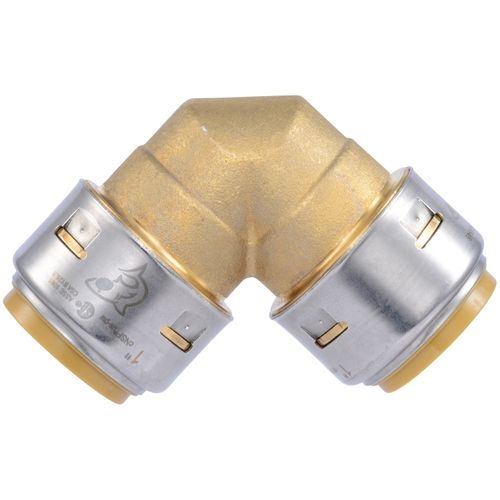

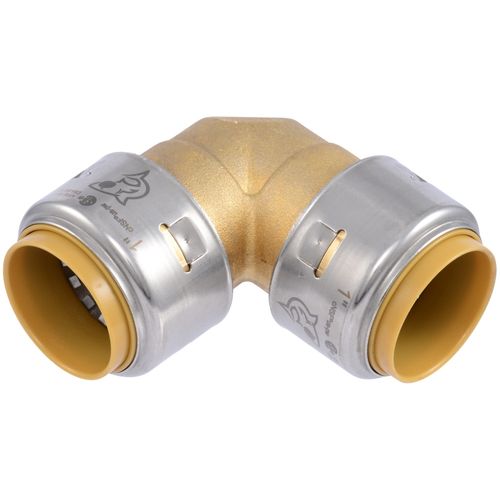

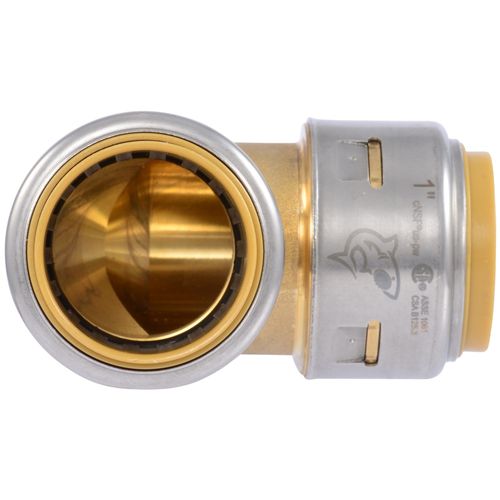

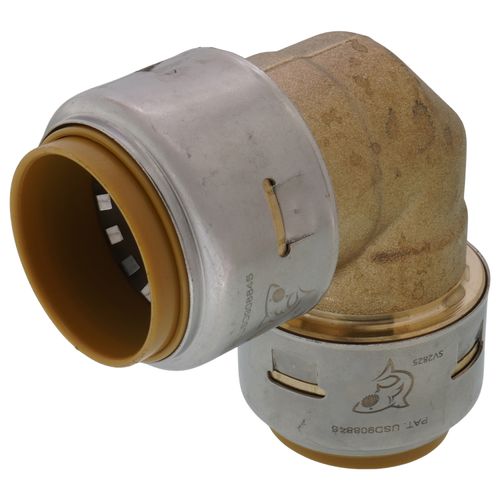

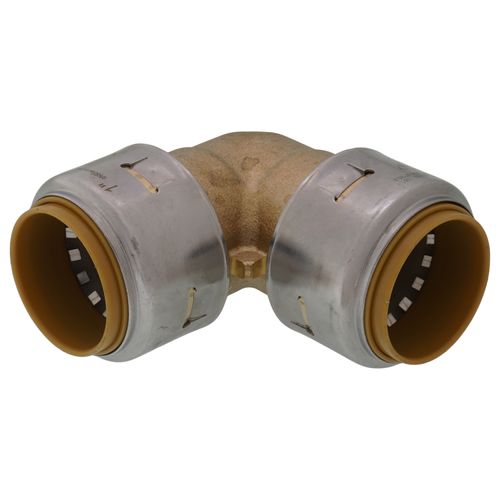

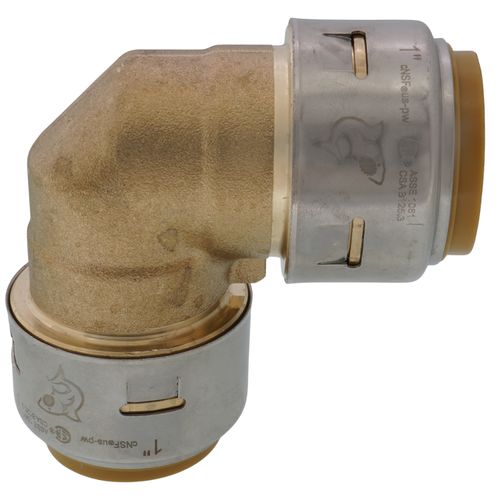

1" x 1" SharkBite Max 90-Degree Elbow (Lead Free), UR260A

Brand:
SharkBite
SKU:
UR260A
Rating:
(0)
Q&A:
(0)
1" x 1" SharkBite Max 90-Degree Elbow (Lead Free), UR260A
Magnifying glass
Hover image to zoom
$19.63 each
BOX UP & SAVE 10%
$53.01 box of 3
$17.67 each
In Stock
In Stock
Get 164 Thu, Jun 25
Order by today, receive Thursday

MANUALS (2)

Install Instructions

This item replaces: UR260

Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Size
1"
Product Highlight: Material
Brass
Product Highlight: Tubing Compatibility
OD Controlled Copper, PEX, CPVC
Product Highlight: Fitting System Compatibility
Push Fit
Product Highlight: Max Temp (F)
200°F Max Temp
Product Highlight: Warranty
25 Year Warranty

Description

Replaces UR260

The SharkBite Max 90-degree elbow offers an innovative push-to-connect design for quick and easy installation when connecting two pieces of potable water pipe. Ideal for working in tight spaces, the 90-degree brass push-to-connect elbow can be installed in wet lines with no special tools, crimping, soldering or glue required. Faster install time and ease of use reduces installation errors.


Features & Benefits:

  • Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
  • Half the insertion effort, double the pressure rating.
  • Can be installed on wet lines and pressure tested immediately.
  • Stainless steel retainer adds strength and durability.
  • High-performance DZR lead-free brass body.
  • No special tools, crimping, soldering or glue required.
  • Can be rotated after installation.
  • No tube liner required for PEX.
  • Rated to 200F and 400 psi.
  • 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT.
  • 5-year warranty when properly installed with HDPE SDR-9.
  • Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.


Common Applications:

  • Behind-the-wall with no access panels
  • Underground when wrapped in silicone tape


Approvals & Listings:

  • ASSE 1061
  • CSA B125.3
  • NSF/ANSI 14
  • NSF/ANSI/CAN 61
  • NSF/ANSI/CAN 372
  • ASTM E84
  • CAN/ULC S102.2
  • UL 263
  • ASTM E119
  • CAN/ULC S101

Specs

Max Temp (F):

200°F

Tubing Compatibility:

OD Controlled Copper

PEX

CPVC

Material:

Brass

Thread Size:

1"

Warranty:

25 Year

Size:

1"

Application:

Heating

Lead Free:

Yes

Max Pressure (PSI):

400

Fitting System Compatibility:

Push Fit
