$57.52 each
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 10188046, 88046, SB0254
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
2"
Brass
PEX, CPVC, Copper
Push Fit
Push-Fit x Push-Fit Connection
25 Year Warranty
Description
–
Note: A
SBTL54 Insert is required when making a connection to PEX. A PEX to PEX connection requires (2) SBTL54 Inserts, one for each end. This insert is sold separately.
Underground burial of SharkBite brass fittings requires that the fitting be wrapped using silicone wrap (25406A).

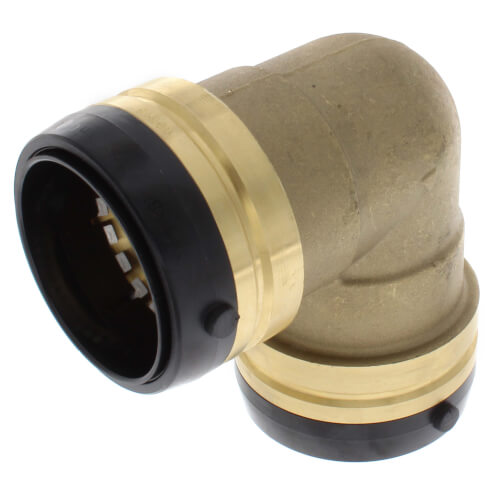

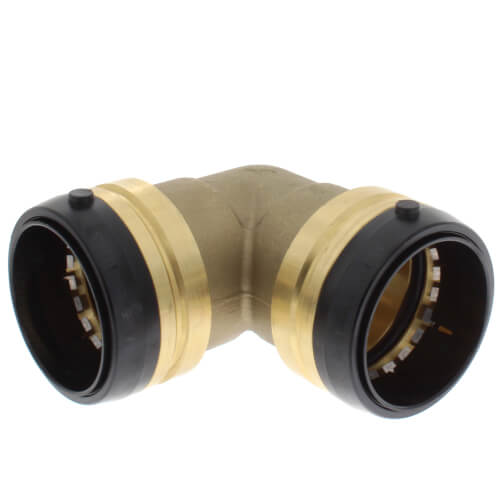

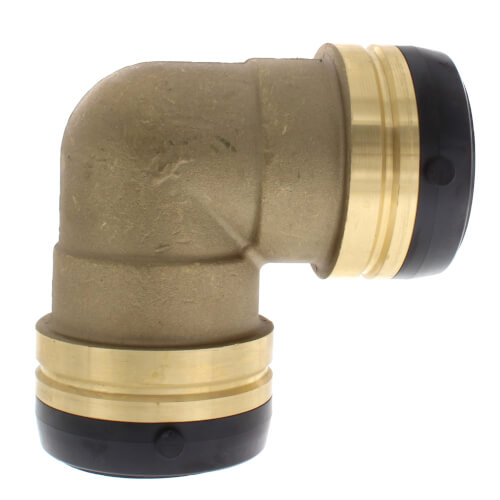

SharkBite Large Diameter Elbows allow the user to connect any combination of Copper, PEX CPVC, PE-RT, and HDPE pipe together to form a 90-degree connection. With no soldering, clamps, unions or glue required, it’s as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200°F and 200 psi.
Features:
Underground burial of SharkBite brass fittings requires that the fitting be wrapped using silicone wrap (25406A).
SharkBite Large Diameter Elbows allow the user to connect any combination of Copper, PEX CPVC, PE-RT, and HDPE pipe together to form a 90-degree connection. With no soldering, clamps, unions or glue required, it’s as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200°F and 200 psi.
Features:
- Quick Connect & Disconnect
- SAFE-Recessed Release Collar
- Easy Installation
- No Tools
- Provides Piping Support Against Lateral Pipe Forces
- Lead Free DZR Brass Material
- Environmentally Friendly
Specs
–
| Size: | 2" |
|---|---|
| Material: | Brass |
| Application: | Heating Plumbing |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | PEX CPVC Copper |
| Connection Type: | Push-Fit x Push-Fit |
| Warranty: | 25 Year |
| Insertion Depth: | 2-1/2" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.88 out of 8 reviews
100% would recommend this product
5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
LOVE THIS PRODUCT
2'' Sharkbite, I used it for polly to copper, worked PERFECT
TeamToyota
Los Angeles, CA
5 years ago
Verified Buyer
Was this review helpful to you?
Great price perfect fit.
Always fast shipping and a great online purchasing experience.
Christopher
PA
7 years ago
Verified Buyer
Was this review helpful to you?
Great product at very good price vs. other sources
These things work well and save time. Pricey, but worth it in many applications. Be sure to have the connect/disconnect tool with these.
RW
TN
10 years ago
Verified Buyer
Was this review helpful to you?
Costly but great to use when you have no other choice.
Installing couldn't be any easier. This is a great product when you cannot completely dry out your system. Went on in seconds.
Bob the Builder
Frenchtown, NJ
11 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
shark bite
I have used shark bite products before, with great success. . this one didnt work for me because I ordered the wrong part
jimmymb
boston, ma
12 years ago
Verified Buyer
Was this review helpful to you?
Amazing
What a product!!!!, was able to get inside places I would never be able to solder, Snapit in and you done, no leaks no cleaning needed
best of it's kind
Edman
NY
12 years ago
Verified Buyer
Was this review helpful to you?
Worked great!
Worked great going from 2" cpvc to 2" copper. The time savings outweighs the fitting cost.
Mark
Charleston, IL
12 years ago
Verified Buyer
Was this review helpful to you?
Great in boiler primary loop
Requires the use of the de-mount clip, but the mechanism of the new 2XL clips is so much better than the de-mount c-Clip for the smaller Sharkbites. It actually slides onto the fitting and uses a sort of "twist-to-unlock" sort of function to release the stainless teeth inside.
I am using it on the primary loop of my wood boiler (165F) in place of a 1-1/4" copper tee AND a 1-1/4" union (or 2...!) which would really add up $$.
This tee is much bigger than the 1-1/4" copper tee both in diameter and socket length but you gain the functionality of that union which would add more length.
Chris
Mahopac, NY
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: 1. Can the Sharkbite fittings be used to adapt to PVC pipe, as used in sprinkler systems ? 2. Do the larger size fittings, ie 1-1/4", work like the smaller sizes as far as being able to remove and reuse ?
Asked by Bob 14 years ago
Add your answer
Verified Reply- PexSupply StaffSharkBite fittings only work with copper, PEX, and CPVC, which all have the same outside diameters. They would not work with PVC pipe. You can remove and reuse SharkBite 2XL fittings. The 1-1/4" removal tool is part SBDC35.
