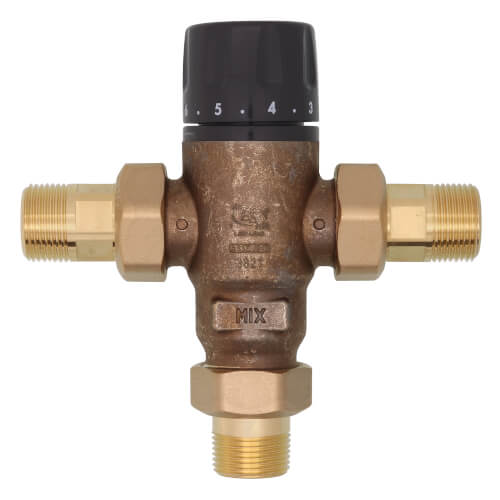

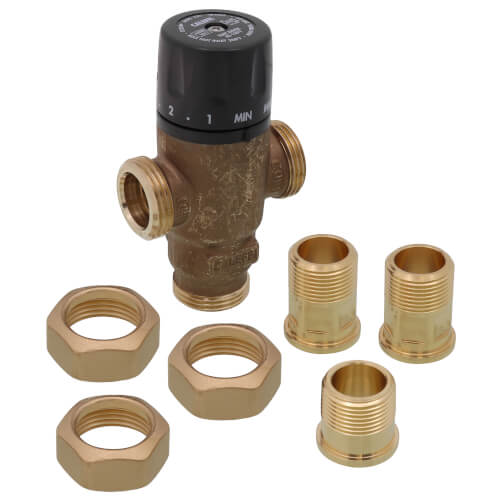

3/4" NPT MIXCAL 3-Way Thermostatic Mixing Valve w/ Check Valves (Lead Free)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$227.52 each
In Stock
Get 1 Fri, Jul 10
Size:
3/4"
Connection Type:
MNPT x MNPT
Features:
Standard
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
3/4"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
Note: This valve comes with a check valve.
Caleffi MixingCal 3-Way Thermostatic Mixing Valve, Low-Lead Brass 3/4" NPT Connections, 3 Cv
The Caleffi MixingCal 3-Way Thermostatic Mixing Valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set valve, compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The Caleffi MixingCal 3-Way Thermostatic Mixing Valve has an CV of 3.
Features:
Caleffi MixingCal 3-Way Thermostatic Mixing Valve, Low-Lead Brass 3/4" NPT Connections, 3 Cv
The Caleffi MixingCal 3-Way Thermostatic Mixing Valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set valve, compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The Caleffi MixingCal 3-Way Thermostatic Mixing Valve has an CV of 3.
Features:
- Maintain Temperature
- Compensates for both temperature and pressure fluctuations
Specs
–
| Features: | Standard |
|---|---|
| Size: | 3/4" |
| Connection Method: | Threaded |
| Connection Type: | MNPT x MNPT |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Lead Free: | Yes |
| Flow Capacity (Cv): | 3 |
