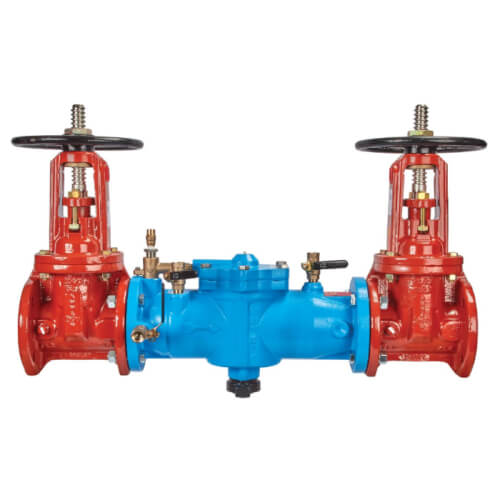

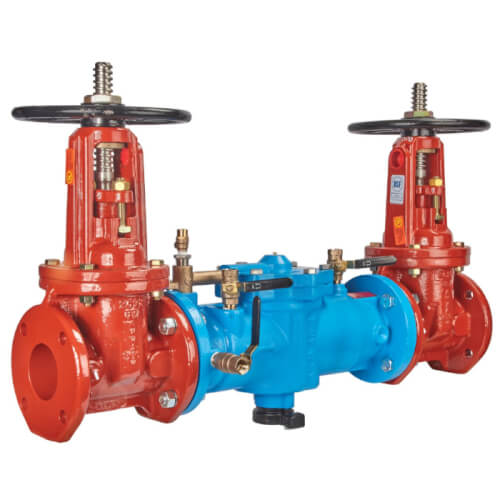

3" LF009-DOSY-FS Lead Free Bronze RPZ, Domestic OSY Shutoff, w/ Flood Sensor Connectivity

This 3" lead free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure. Ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards. This assembly consists of a cast iron body, UL and FM OSY domestic resilient seated gate valves, top mounted test cocks, two in-line independent check valves, captured springs and replaceable check seats with an internal relief valve for reduced space requirements. The coating on this backflow assembly uses ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This backflow assembly includes flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Cast Iron
• Inlet Connection Size: 3"
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 3"
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Series: LF009
