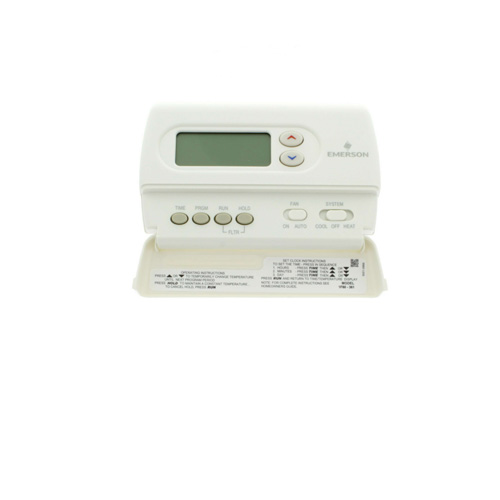

80 Series Programmable, 1H/1C, Digital Thermostat
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
1F80-361
5+1+1 Day Programmable Thermostat, Hardwired or Battery Powered
- Programmability: 5-1-1 Day Programmable
- Application: Gas, Oil or Electric; Millivolt
- Color: White
- User Interface: Soft Key
- Power Method: Battery or Hardwired
- Stages: 1 Heat/1 Cool
- Mounting: Horizontal
Specs
| Amperage: | 1.5 |
|---|---|
| Application: | Heat Pump Single-Stage (Heat/Cool) |
| Stages: | 1 Heat/1 Cool |
| Programmability: | 5-1-1 Day Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Large Display |
| Power Method: | Battery Hardwired |
| Changeover: | Manual |
| Temperature Range (F): | 45°F - 90°F |
| Voltage: | Low voltage 24V |
| Wattage: | 1.5 to 45 |
| Wiring: | Y W C O Rc B Rh G |
| Color: | White |
| Height: | 3-8/10" |
| Width (Inches): | 6-1/10" |
| Depth (Inches): | 1-1/5" |
| Wireless: | No |
| Humidity Control: | No |
Questions?
Compare Similar Products
Single-Stage (Heat/Cool)
Programmable
You May Also Need
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Thermostat Review
Most Liked Negative Review
Not the same as thermostat it replaced
Possibly I would probably go Nest for the next round
Thermostat
Cycle Click
Yes, would buy again.
I would purchase again from them
This thermostat is working well.
I would buy it again
It works!
Repeat purchase
Programmable Home Thermostat
Product Q&A
38 QuestionsQ: Is this a newer model of the Model No. P200? I have the P200 that I need to replace.
Asked by SCO 1 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, thanks for writing in. The P200 is actually SKU: TH2320U4006 - https://www.supplyhouse.com/Honeywell-Home-TH2320U4006-FocusPro-P200-Programmable-3H-2C-Heat-Pump-2H-2C-Conventional-Large-Display-Thermostat-TH2320U4006?srsltid=AfmBOoqStacPqMW4tHjVNPkjFahw-YdYNNhmORXSn-fNNbRY_EZLeP4d
Verified Reply- SupplyHouseHi SCO! I am not seeing this listed as a direct replacement for the P200, although it does seem to have comparable specs.
Q: Should this thermostat 1F80-361 be labeled White Rodgers or Emerson? The photo showed White Rodgers on the cover of the unit, but one customer said his had Emerson on it.
Asked by Pink 7 years ago
Add your answer
Verified Reply- Supplyhouse.com TeamEmerson is the parent company of White Rodgers so they are from the same company.
Q: How do I turn off the program for j1f80-361. I would like to only use the manual function.
Asked by Bube 8 years ago
Add your answer
Verified Reply- Supplyhouse StaffMomentarily press the HOLD button. "HOLD" will be displayed. Then choose the desired temperature by pressing the up or down arrow. The thermostat will hold the room temperature at the selected setting until you press the RUN button to start program operation again. Please see page 5 of the install instructions found here for further details: https://s3.amazonaws.com/s3.supplyhouse.com/product_files/White%20Rodgers%20-%201F80-361%20-%20Install%20Instructions.pdf
Q: I need to replace a couple White Rodgers 1F80-261 units. Will the 1F80-361 function as a direct replacement?
Asked by Brett 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it would.
Verified Reply- JonYes, the 1F80-361 is the direct replacement for the 1F80-261.
Verified Reply- DanYes, it will.
Q: Does a White Rogers F80-361 replace an older F80-51 thermostat? Does it come with all mounting hardware or do I need a wall plate for it?
Asked by Mike 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe 1F80-361 is the direct replacement for the 1F80-51 thermostat. There is a separately available wallplate part F61-2500 which can be used for mounting the unit.
Q: WE HAVE A WHITE RODGERS THERMOSTAT AND ALL THE TIME IT SAYS LO. SO I LOOK TO SEE THE TEMPERATURE AND IT IS WAY LOWER THAN WHEN I SET IT. IS THERE A BATTERY I SHOULD CHANGE AND HOW DO I DO THAT?
Asked by annie the librarian 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the "BATT" and "LO" in the minutes field are displayed when the batteries are low. To replace the batteries, install the two AA batteries along the top of the base of the unit.
Q: what does the WE mean above the temperature reading, and how can I get an instruction manual on line for the1f380-361. Thank you
Asked by Sally 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe "WE" is going to symbolize the programming for Wednesday. Here is the link for the install instructions for this thermostat http://www.supplyhouse.com/White-Rodgers-1F80-361-5-1-1-Day-Programmable-Thermostat-Hardwired-or-Battery-Powered-4727000-p
Q: Is this a replacement part for white-rodgers 1F80-24? thx.
Asked by Dtang 11 years ago
Add your answer
Verified Reply- SupplyHouse Staff1F80-0471 is the recommended replacement for the 1F80-24 thermostat. We have it available on our website here: http://www.supplyhouse.com/White-Rodgers-1F80-0471-Single-Stage-5-1-1-Day-5-2-Day-Programmable-or-Non-Programmable-Thermostat-24-Volt-or-Millivolt-system-3-wire-zone-5274000-p
Q: For heating? Is FAN suppose to be ON or AUTO?
Asked by tee 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyour choice if you want the fan to run all the time or not.
Q: how do i reset this thermostat so that i can run it manually all the time
Asked by butch 12 years ago
Add your answer
Push the "HOLD" button and your thermostat will act like a manual thermostat. Just push the up and down arrows to choose your temperature. Alan Berkeley, CA
Simply set your settings and any time you wish press the UP or DOWN Arrows to Change Temperaure Settings. Now you have a new adjusted Temp setting Sent from Samsung tablet
Simply set a safe general daily temp, lower for heat & warmer for cooling. Then adjust daily when you wish for cooler or warmer temps Sent from Samsung tablet
