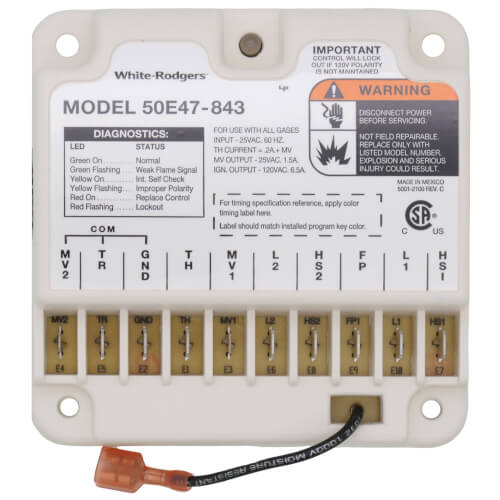

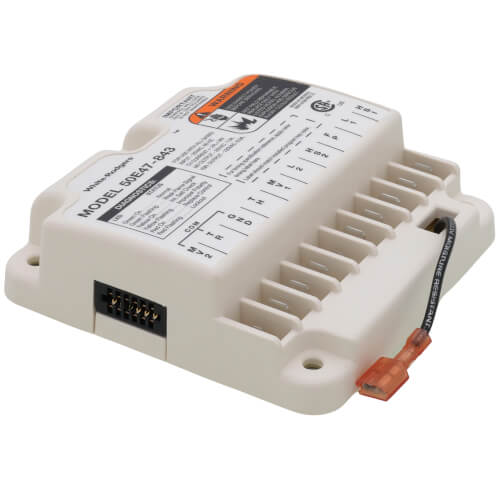

Universal Silicon Carbide Non-Integrated Replacement Module
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$192.85 each
In Stock
Get 3 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (6)
This item replaces: 50E47-10, 50E47-160, 50E47-30, 50E47-170, 50E47-60, 50E47-140, 50E47-150, 50E47-50, 50E47-70, 50E47-130, 50E47-850, 50E47-851
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Intermittent Hot Surface Pilot
Description
–
The 50E47-843 Universal Kit has everything needed for a fast and accurate replacement, including a complete module cross-reference and program keys to quickly customize the module to the furnace application.
Specifications
Features
Specifications
- Dimensions: 4.13"W x 4.13"H x 1.5"D
- Electrical rating: Input 18 to 30 VAC, 25 VAC nominal
- Max. input current @ 25 VAC; .250mA @ 28 VAC
- Relay load settings: Valve relay: 1.5 amps @ 28 VAC, 50/60 Hz, .6 pf
- Ignitor relay: 1.52A, 120 VAC, 50/60 Hz resistive
- Operating temperature: -40° to +175°F (-40° to +80°C)
- Humidity range: 95% RH (non-condensing) max.
- Mounting: Surface mount or 4" x 4 junction
Features
- Program keys for multiple timing selections.
- Tri-colored LED indicator for diagnostics.
- Direct and indirect flame sense compatible.
- Universal design for maximum versatility.
Specs
–
| Ignition Type: | Intermittent Hot Surface Pilot |
|---|
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
CURRENT ITEM
You May Also Need
Product Reviews
4.93 out of 55 reviews
100% would recommend this product
5 star
93%
4 star
7%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 55 reviews
Well engineered and easy to install.
Very straight forward instructions. As a universal replacement for an OEM controller it was easy adapt and is working perfectly.
Racer
Benton Harbor, Michigan
2 years ago
Verified Buyer
Was this review helpful to you?
Worked perfectly
Very fast shipping, great service, Thank you!
Jj
Iowa
2 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
good service
used it
rod
il
3 years ago
Verified Buyer
Was this review helpful to you?
good
good product
Mike
nh
3 years ago
Verified Buyer
Was this review helpful to you?
very helpful
I called with a problem, they figured it out and sent it on its way.
Theo
Milwaukie, Ore
3 years ago
Verified Buyer
Was this review helpful to you?
Works great!
Cost effective solution to a failed 30 year old controller, fit in perfectly.
Jeep
Idaho
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy it again.
It's great to be able to find these universal parts. Since my heater is an older model, everyone wants to sell you a new unit. With this part and the extensive instructions detailing the use for the many makes and models made installation rather easy.
Steve
Shelby, NC
4 years ago
Verified Buyer
Was this review helpful to you?
Fast Shipping - Easy Install
After diagnosing the issue with my TRANE 90XL It was pretty easy to find the replacement part here. Shipping was fast. Installation took 20 minutes, which could have been cut in half if it were not for my double checking prior to installing. It's great to have a working furnace again!
Ken DYI
Colorado
4 years ago
Was this review helpful to you?
yes
In my furnace
lee
cincinnati ohio
4 years ago
Verified Buyer
Was this review helpful to you?
Fulness parts
My go to place for furness parts. They always have what I need at a fair price. Quick delivery. Site is easy to navigate. No need to go anywhere else.
No nickname
Middletown N.J.
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
7 Questions7 Questions
Q: I have a Whiterodgers model 50E47-60 and need a replacement, having a hard time.
Asked by Isayes 8 years ago
Add your answer
Verified Reply- Dan50E47-843 is listed as the direct replacement for 50E47-60.
Was this review helpful to you?
Verified Reply- SupplyHouse Staff50E47-843 is listed as the direct replacement for 50E47-60.
Was this review helpful to you?
Verified Reply- JonThe 50E47-843 would function as the direct replacement for your 50E47-60.
Was this review helpful to you?
Q: Will this replace a Robertshaw HS780 34NL 306A
Asked by Mike 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe Robertshaw HS780 34NL 306A is replaced by the Robertshaw 780-785.
Was this review helpful to you?
Q: will this replace a 50D47-140 without to much trouble
Asked by ed 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, 50E47-843 is the direct replacement of the 50D47-140 module.
Was this review helpful to you?
Q: Will this unit replace a White Rodgers 50E47-060? Thanks.
Asked by Jeff 13 years ago
Add your answer
Verified Reply- PexSupply Staff50E47-843 is the direct cross reference of the 50E47-060.
Was this review helpful to you?
Q: need to repace white-rodgers model. 50E47-140
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis part, 50E47-843, is the manufacturer's suggested replacement for 50E47-140.
Was this review helpful to you?
- Danny U
This will do it.
Was this review helpful to you?
- Mike
Yes, I believe this one will work. It's a 'universal', I purchased it to replace 50E47-???, don't remember for sure. But that's what it's made for. There is programming keys, jumpers, and a schedule to help you make the conversion.
Was this review helpful to you?
- Chris
This should work, (just set the jumpers to match the "140" timing).
Was this review helpful to you?
Q: I have a White Rodgers I.C. #50D47-170 (W.M.# 511-330-129) 8 blade wire connections at bottom, 1 goes directly to grnd via a short wire, 2 or for the 115V Igniter, 2 go to the gas valve, 1 is FlameSensor, Believe 'TR' is the 24V Grnd, 'TH' is the 24V Hot. I've been told that a W.M. #510-811-502 may work or be the replacment, for my 1987 W.M. VHE-5 Series 3 Boiler. I have 2 Q's, 1) Does your cross-Ref/Replacement manuals?, show that the #510-811-502 is the replacment for my original stated above? 2) Will this #50E47-843 work wire-for-wire for my original? thanks very much.
Asked by Roger 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis is the manufacturer's suggested replacement part for the 50D47-170. We assume the wiring will match up, although we do not have access to the wiring diagram for the older unit.
Was this review helpful to you?
Q: I'm replacing a WR 50E47-070 - which I guess this will do - any particular problems with the settings or wiring??? Dennis
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThis is the listed replacement for the 50E47-070 unit. The wiring and settings should be compatible with the system you are installing it into.
Was this review helpful to you?
- Lew
These controls are electronic. Electronics don't do well in high heat locations. Move this control as far as possible from the heat source and it will last longer.
