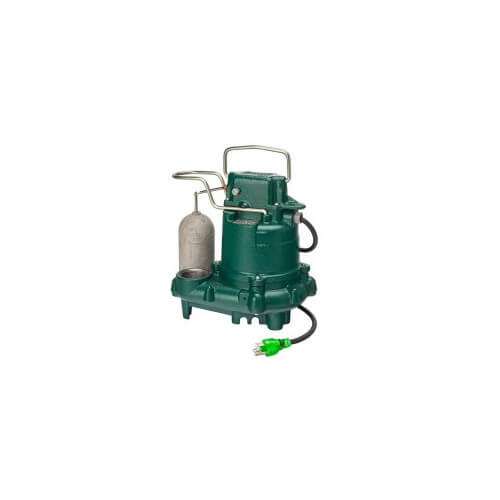

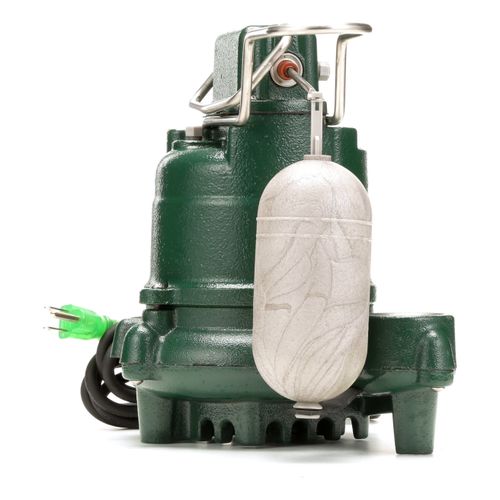

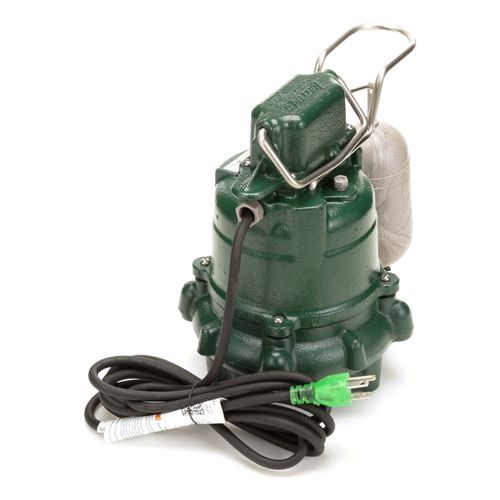

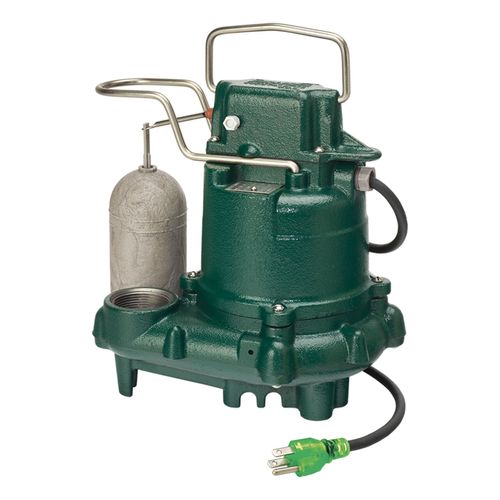

M63 Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch (3/10 HP, 115V, 1 PH)
Hover image to zoom

M63 Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch (3/10 HP, 115V, 1 PH)

Brand:
Zoeller
SKU:
63-0001
Rating:
(21)
Q&A:
(2)
M63 Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch (3/10 HP, 115V, 1 PH)
Hover image to zoom
$311.25 each
In Stock
In Stock
Get 111 Wed, Apr 24
More Available
Fast Track Logo
Order by 6PM, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
115V
Flow at 5 FT Head icon
43 GPM
Horse Power icon
3/10 HP
Cord Length icon
10'
Discharge icon
1-1/2" FNPT
Amperage icon
9.7 Amps

Description

The 63 series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater. Cast iron models include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump in this series, making it one of the most reliable in the industry.

Features:
  • 5-year warranty
  • Float-operated, submersible, 2-pole mechanical switch integrating advanced switch technology
  • Corrosion-resistant, powder coated epoxy finish

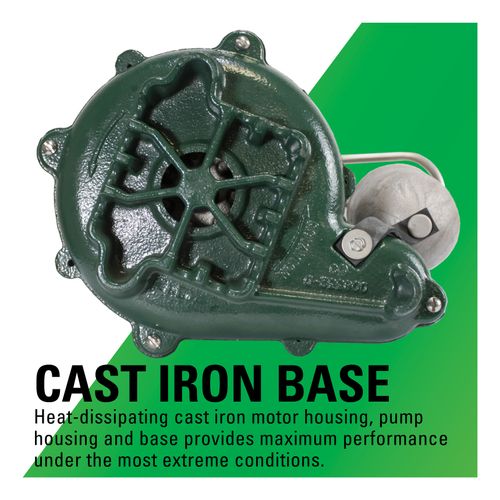

  • All cast iron construction
  • Viton outer switch boot
  • No sheet metal parts to rust or corrode
  • Stainless steel screws, switch arm, guard and handle
  • No screens to clog
  • Watertight, neoprene square ring between motor and pump housing
  • Solid, buoyant, polypropylene float
  • Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
  • Upper and lower sleeve bearings running in bath of oil
  • Entire unit pressure-tested after assembly
  • Carbon and ceramic shaft seal
  • Maximum temperature for effluent or dewatering: 130 °F (54 °C)
  • Passes 1/2” (12 mm) spherical solids

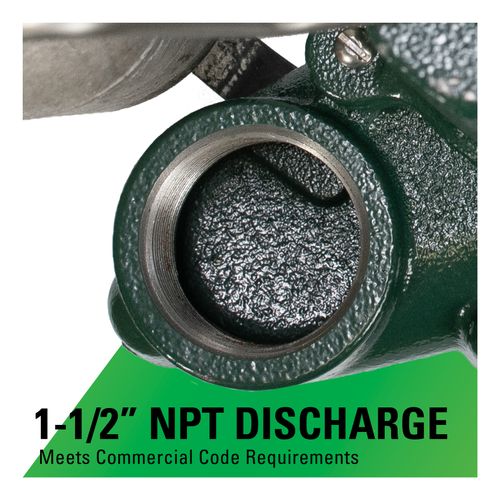

  • 1-1/2” NPT discharge
  • On point: 7-1/4” (18 cm)
  • Off point: 3” (8 cm)
  • Major width: 10-3/32" (26.2 cm)
  • Major height: 10-1/16" (25.6 cm)
  • Watertight and dust-tight
  • Permanently oiled bearings
  • Cast iron impeller

Specs

Type:

Shaded Pole

Application:

Plumbing

Amperage:

9.7

Horse Power:

3/10

Voltage:

115V

Hertz:

60

Cord Length:

10'

Phase:

1

RPM:

1550

Cord Type:

UL Listed, 3-Wire Cord & Plug

Discharge:

1-1/2" FNPT

Flow at 5 FT Head:

43 GPM

Flow at 10 FT Head:

34 GPM

Flow at 15 FT Head:

19

Shutoff Head (ft.):

19.25'
