20 Gallon EJCS-20 ProLine Residential Electric Water Heater, 6 Yr. Warranty - Compact (1PH, 2.5kW, 120V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$628.18 each
In Stock
Get 20 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Electric
6 Year Tank/6 Year Parts Limited Warranty
19 Gallons
24.75" Height
No
18" Diameter
Description
–
Product Details
- Delivers 11-gallons per hour recovery rate
- Single 2,500-watt commercial-grade heating element delivers reliable and efficient hot water
- Compact design side connections is ideal for installation under a counter, in a crawl space or in other tight spaces
- Patented Blue Diamond glass tank lining protects against corrosion
- DynaClean automatic cleaning system protects against sediment build-up
- Stainless steel CoreGard anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
- HUD compliant, approved for mobile homes and manufactured housing
- 6-year limited tank and parts warranty
- The ProLine Compact electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 19-gallon (nominal) tank and 1 element delivering 2500 watts, the EJCS-20 is designed to fit into tight spaces. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard anode rod and Blue Diamond glass lining, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. All of these features are accompanied by a 6-year limited tank warranty. A. O. Smith's ProLine water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.
Specs
–
| Intended Household: | 1 Person |
|---|---|
| Application: | Plumbing |
| Capacity (Gallons): | 19 |
| Fuel Type: | Electric |
| Kilowatts (KW): | 2.5 |
| Number of Elements: | 1 |
| Voltage: | 120v |
| Phase: | 1 |
| Max Input (KW): | 6 |
| Max Pressure (PSI): | 150 |
| ASME: | Yes |
| Recovery 90°F Rise: | 11 GPH |
| R-Value: | 8 |
| Energy Star Rated: | No |
| Depth (Inches): | 18" |
| Diameter (Inches): | 18" |
| Height (Inches): | 24.75" |
| Weight (lbs): | 68 lbs |
| Warranty: | 6 Year Tank/6 Year Parts Limited |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Intended Household
Application
Capacity (Gallons)
Fuel Type
Voltage
CURRENT ITEM
1 Person
Plumbing
19
Electric
120v
You May Also Need
4 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.3 out of 23 reviews
86% would recommend this product
5 star
70%
4 star
13%
3 star
4%
2 star
4%
1 star
9%
Customer Images
Most Liked Positive Review
Everything as advertised.
Didn't know such a thing existed (120v) until I walked with S.H. tech. It's easy to recommend the waterheater, but it is even easier to recommend Supply House.
They cared that I needed it quickly. When the first arrived damaged (in 2days), they were even quicker to replace the first, with a second, within two days. They're NY, I'm MI, it didn't matter. Thanks
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Both units damaged in shipping
Ordered two of these for a job with tight timeline. PRV's were both damaged subtly enough that quick visual inspection did not detect but once installed we found both valves were stuck open. Pins were just bent enough to pull the valve open slightly. Had to replace both valves. Didn't have time to send back. Water heaters had not protective packaging for shipping. Not even Styrofoam around fittings. Would not recommend.
Gave two stars instead of one only because Supply House delivered quicky as normal.
Showing 1-10 of 23 reviews
great brand
works great and fast shipping!
chris
Mississippi
1 years ago
Verified Buyer
Was this review helpful to you?
Exactly as ordered and one day shipping, FREE!!!
The water heater was $120 less than our largest supplier
Waldo pepper
OH
1 years ago
Verified Buyer
Was this review helpful to you?
Both units damaged in shipping
Ordered two of these for a job with tight timeline. PRV's were both damaged subtly enough that quick visual inspection did not detect but once installed we found both valves were stuck open. Pins were just bent enough to pull the valve open slightly. Had to replace both valves. Didn't have time to send back. Water heaters had not protective packaging for shipping. Not even Styrofoam around fittings. Would not recommend.
Gave two stars instead of one only because Supply House delivered quicky as normal.
Weber Marine
San Diego
2 years ago
Was this review helpful to you?
Perfect size for small space!
This heater has option of water inlet/outlets on the top or the side. We ended up using top and they are hard to find in this size. Heater fit perfectly into the small space under the stairs. Also electric 110/120 was perfect for historic building. Fast shipping too. Awesome!
AZGal
Tucson, AZ
2 years ago
Verified Buyer
Was this review helpful to you?
I don't buy this product anymore
My water heater don't work good ,short time hot water
I called manufacturer,send email but any body answer
Carlos
Florida
2 years ago
Was this review helpful to you?
I would buy again.
Great for small heaters and fast shipping.
David
Greenville SC
3 years ago
Verified Buyer
Was this review helpful to you?
They shipped two both were damaged
Would not buy hot water heater had two delivered and both were damaged
Jm
Florida
5 years ago
Was this review helpful to you?
Heater works great, packaging subpar

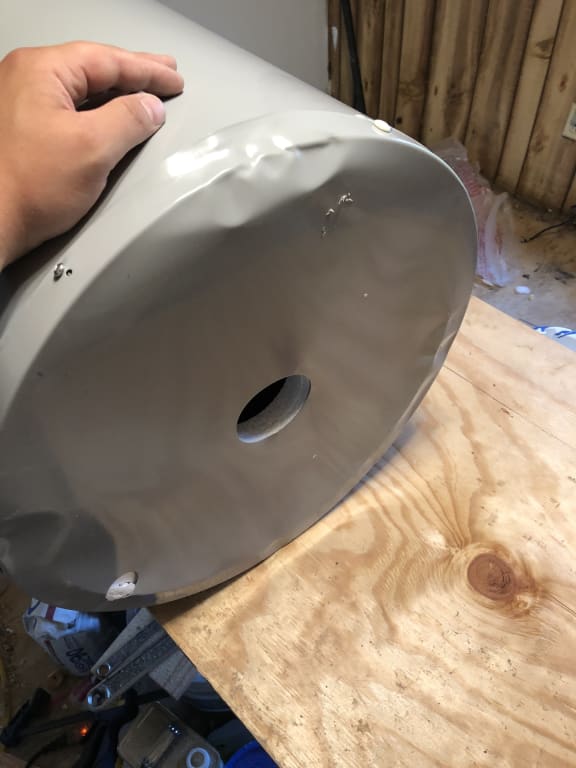

The heater has worked without problems. It is shipped in basically a retail box. Lots of dents, the TP Valve was destroyed and leaked, Cold water nipple threads damaged. Replaced TP Valve and nipple, banged out the dents and installed, worked.
Mimbres Mike
Mimbres NM
5 years ago
Verified Buyer
Was this review helpful to you?
I would recommend this product.
Nice replacement for my old Whirlpool.
Rob
NYC
5 years ago
Verified Buyer
Was this review helpful to you?
Nice product and great vendor
This first unit was damaged badly by UPS, but Supply House sent out a replacement that same day I called. Customer service was top notch. They didn't even make me wait until the return made it back. Water heater itself works really well and heats up quite fast. Comparative brands only have a 1500 w element, but chose this one with the 2500 w element for a faster recovery. Needs a 30 amp breaker though. I liked having top or side connection ports and also has a good quality drain valve.
Tfrick
Portland, OR
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
7 Questions7 Questions
Q: can I regulate the temp on this unit? or is a preset temp? thanks
Asked by randy 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe factory setpoint of the unit is 120 deg. F. The temperature may be adjusted by an adjustment knob. For the adjustment procedure please see pg 13 here: http://s3.supplyhouse.com/manuals/1296247231069/45536_PROD_FILE.pdf
Was this review helpful to you?
Q: what is overall ht. of unit
Asked by j 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe total height of this unit is 24.75".
Was this review helpful to you?
Verified Reply- Height (Inches): 24.75
Was this review helpful to you?
Q: I HAVE THE 1500 WATT A.O. SMITH MODEL EJCS 20 200. WHERE IS THE TEMP CONTROL SO ONE CAN ADJUST THE TEMP OF WATER?
Asked by MR ED 10 years ago
Add your answer
Verified Reply- SupplyHouse Staff1. Turn off the heater electrical supply. Do not attempt to adjust thermostat with power on. 2. Remove the thermostat access panels and covers from the thermostats. Do not remove the plastic personnel protectors covering the thermostats. 3. Using a flat tip screwdriver, rotate the adjustment knob to the desired temperature setting. 4. Replace the covers and access panels and turn on heater electrical supply.
Was this review helpful to you?
Q: I have a new hot water heater. This is the first year I need to drain it. I was told by the plumber when he installed it that you just have to turn the screw and it will drain. That is not happening. Any thoughts would be helpful. Thanks
Asked by Randy 13 years ago
Add your answer
Verified Reply- PexSupply StaffDraining procedure can be found on page 15 of the user guide, found here on our site : http://s3.pexsupply.com/manuals/1296247231069/45536_PROD_FILE.pdf
Was this review helpful to you?
- Bob
I have a different brand, same size. A lot of "dirt" builds up. I attach a short hose to clear the area then open valve while leaving the water supply on. Mine works like a charm. You might have to turn the valve off a couple of times and do it again so the "dirt" resettles to the bottom again. Good luck. Bob
Was this review helpful to you?
Q: Can the EJCS-20 water heater be wired to use 220 volt power?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffIf the unit was manufactured to be used on 240 volts it can be used on 240 volts. If the unit was manufactured for 120 volts, you can not rewire the unit and/or operate the unit on 240 volts.
Was this review helpful to you?
Q: does the model ejcs20 have a manual thrmostat to set the water temp?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis unit features a temperature adjustment knob. Please refer to page 13 of the following Installation Manual for further details: http://s3.pexsupply.com/manuals/1296247231069/45536_PROD_FILE.pdf
Was this review helpful to you?
Q: Hello, I am needing a tank for a bathroom in my garage where we'd take short showers and wash our hands. I nave electricity only available. Space is limited. How many gallons would I require for something like this application?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffYou need to estimate your average usage per hour and determine whether this heater will produce the amount of hot water you need based on the specifications. This heater will work for approximately one shower per hour depending on the water usage of your fixtures and the length of the shower.
Was this review helpful to you?
