Description

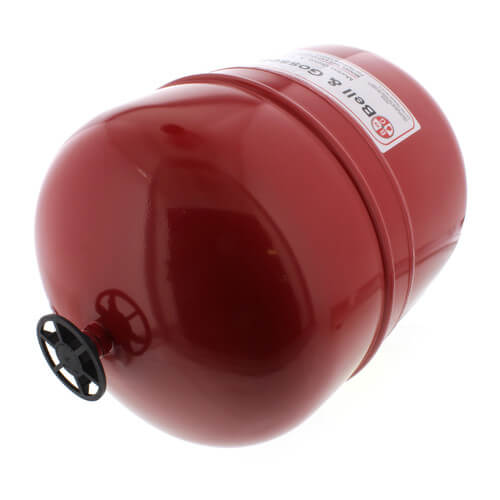

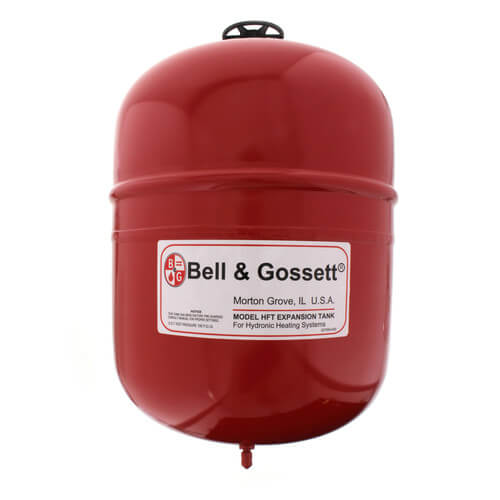

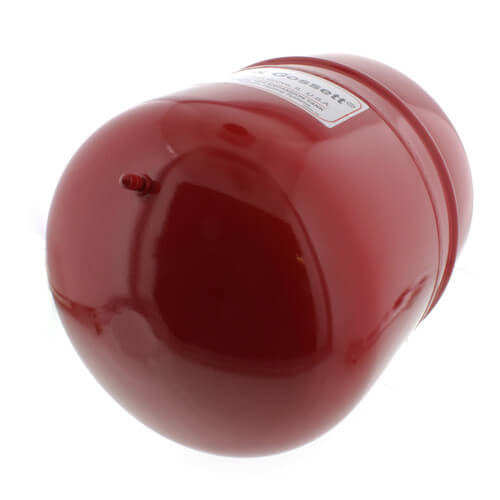

The Series HFT tank is designed to absorb the force of thermal expansion of heating water and to maintain proper pressurization in a closed hydronic system. The heavy duty butyl diaphragm separates system water from the air in the tank preventing water logging problems

The HydroClaw Expansion Tank Support Bracket provides a safe and reliable option if you prefer to mount your expansion tank. This expansion tank bracket is easy to install and will hold any tank with a diameter of 11" nominal.

Features:
  • Residential and light commercial applications
  • Helps prevent excessive pressures in heating systems
  • Increases system performance
  • Reduces oxygen corrosion
  • Prevents waterlogging
  • In-line and floor mount installation
  • Max. operating temp 240°F
  • Max. working pressure of 100 psi
Hide Description
Specs
Tank Volume:

4.4 Gallons

Max Accepted Volume:

2.5 Gallons

Weight (lbs):

9 lbs

Height (Inches):

15.5"

Diameter (Inches):

11"

Connection Size:

1/2"

Thread Type:

Male

Connection Type:

Threaded

Application:

Heating

Max. Working Pressure:

100 psi

Max Operating Temp:

240°F

Shell Material:

Carbon Steel

Diaphragm Material:

Heavy Duty Butyl Rubber

Precharged PSI:

12 psi

Series:

HFT

×
