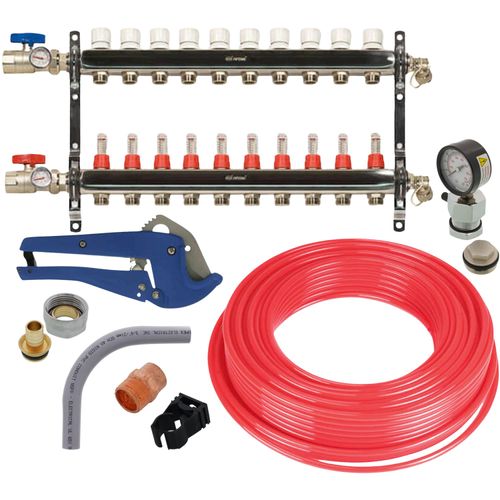

Bluefin Suspended Pipe Radiant Heat Package (1500 sq ft)

**NOTE: Material In This Package is Based on 16" Joist Bays**

This 1500 sq. ft. suspended pipe radiant heat package contains the following products: (Please note that the numbers in parentheses represent the quantity included in the package).

Tubing

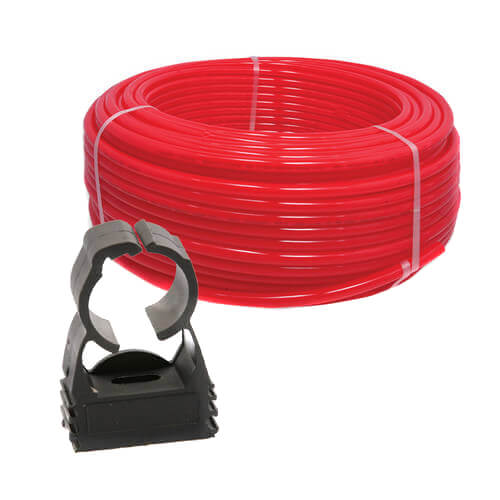

• (9) T050-300-OXY: 1/2" Bluefin Oxygen Barrier PEX Tubing (300 ft Coil)

Manifold

• (1) HM10: 10-Loop Stainless Steel Radiant Heat Manifold

• (2) 3610003: Loop End Cap

Fittings:

• (20) 4310500: 1/2" PEX to EK20 Loop Fitting Assembly
• (2) 30342: 1" Copper X Male Adapter

Accessories

• (18) A5250500: 1/2" Plastic Bend Support
• (1) 3610005: Pressure Test Kit
• (1) PXTBCUT1: PEX Ratchet Style Pipe Cutter (for Pipe up to 1")
• (8) F7051258: 1/2" PEX Clips, 100/box

**NOTE: This package does NOT include pumps, controls or valves that may be necessary to complete the installation.
