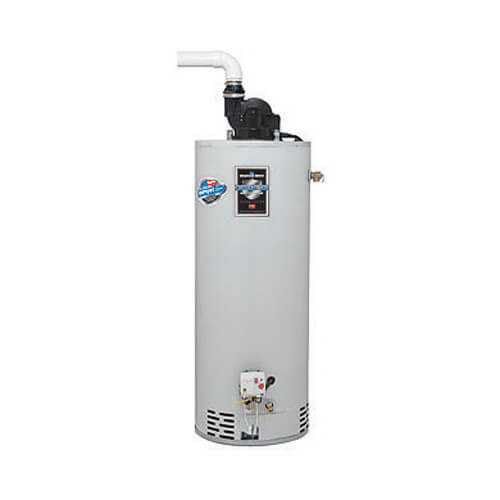

50 Gallon - 40,000 BTU TTW Power Vent Energy Saver Residential Water Heater (Nat Gas)

Hover image to zoom

Home

Plumbing Supplies

Water Heaters

Residential Water Heaters

Bradford White Residential Water Heaters

Bradford White Residential Gas Water Heaters

Bradford White TTW1/TTW2 Through-The-Wall Water Heaters

50 Gallon - 40,000 BTU TTW Power Vent Energy Saver Residential Water Heater (Nat Gas)

Name: 50 Gallon - 40,000 BTU TTW Power Vent Energy Saver Residential Water Heater (Nat Gas)
Brand: Bradford White
SKU: RG1PV50S6N
Price: 1965 USD
Availability: InStock
Rating: 4.3 (34 reviews)

Brand:

Bradford White

SKU:

RG1PV50S6N

Rating:

(34)

Q&A:

(0)

Hover image to zoom

$1,965.00 each

In Stock

Get 11 Wed, Apr 30 - Fri, May 2

MANUALS (4)

Product Overview

Install Instructions

Warranty Info

Replacement Parts List

Product Overview

Install Instructions

Warranty Info

Replacement Parts List

This item replaces: M-1-TW-50S6FBN

Replacement Parts

View All

Lift Gate

–

This product weighs 164.4 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.

Free Shipping This item ships free

Easy Returns No restocking fee for 90 days

Product Highlights

–

Natural Gas

Power Vent

6 Year Limited Tank/ 6 Year Limited on Component Parts Warranty

50 Gallons

58.25" Height

Description

–

Rebates:
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. Bradford White Rebate Center

The TTW Models Feature:

Bradford White ICON System - Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot. This results in savings of pilot gas during standby periods (120 V.A.C.).
Enhanced Performance - Proprietary algorithms provide enhanced First Hour Delivery ratings and tighter temperature differentials.
Advanced Temperature Control System - Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels.
Intelligent Diagnostics - An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting.
Power Vented Water Heater - Designed for installations where atmospheric units cannot be used. Exhaust gases are vented under positive pressure directly out of the building through the roof or the wall.
Powerful Blower Motor - Our significantly quiet design has greater resistance to outside winds and the power to vent in many difficult venting situations.
Horizontal and Vertical Venting - PVC, ABS or CPVC (Maximum equivalent vent length on reverse side).
Advanced ScreenLok Technology Flame Arrestor Design - Flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater (excluding RG1PV55H6N & RG2PV75H6N).
Flammable Vapor Sensor - Electronic sensor prevents burner operation if flammable vapors are detected. The sensor will also prevent operation if there is ongoing flammable vapor burn inside the combustion chamber
Maintenance-Free - No regular cleaning of air inlet openings or flame arrestor is required under normal conditions
Sight Window - Offers a view into the combustion chamber to observe the operation of the pilot and burner.
lFactory-Installed Hydrojet Total Performance System - Cold water inlet sediment reducing device helps prevent sediment build-up in tank. This increases first hour delivery, while minimizing temperature build-up at top of tank.
Vitraglas Lining - Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water. This formula (Vitraglas) is fused to the steel surface by firing at a temperature of over 1600°F (871ºC).
Non-CFC Foam Insulation - Covers the sides and top, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies, and jacket rigidity.
Water Connections - 3/4" NPT factory-installed true dielectric fittings.
Factory-Installed Heat Traps - Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation.
Protective Magnesium Rod.
T&P Relief Valve - Installed.
Low Restriction Brass Drain Valve - Durable tamper-proof design

Specs

–

Intended Household:	2-3 Person
Fuel Type:	Natural Gas
Warranty:	6 Year Limited Tank/ 6 Year Limited on Component Parts
Capacity (Gallons):	50
Application:	Plumbing
BTU Input:	40000
Water Connection:	3/4"
1st Hour Delivery (Gallons):	86
Gas Connection:	1/2"
Vent Type:	Power Vent
Height (Inches):	58.25"
Vent Size:	2" 3"
Recovery Efficiency:	80%
Diameter (Inches):	22"
Energy Factor:	0.65
Energy Star Rated:	No
