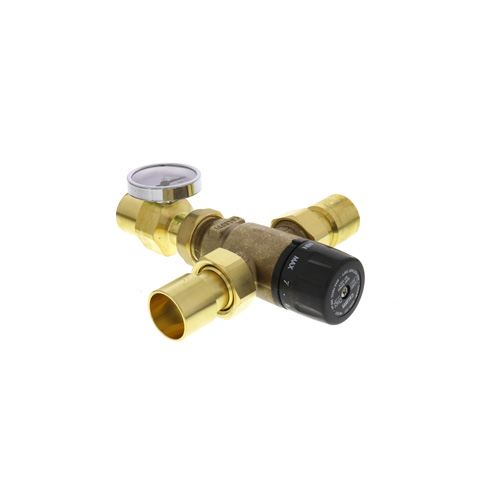

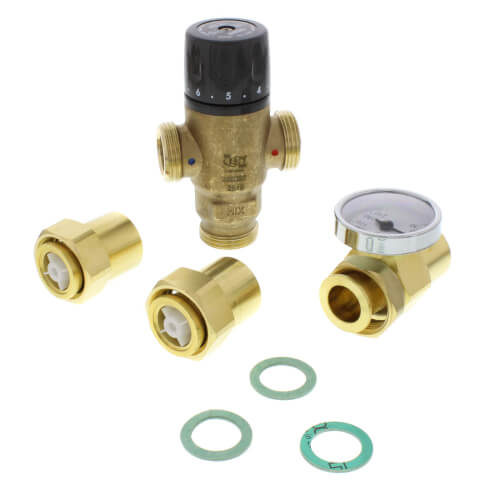

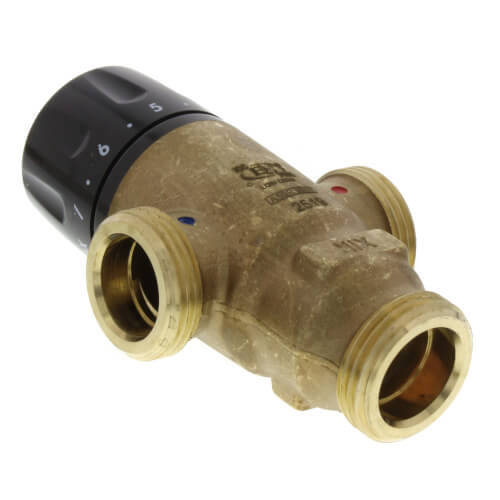

1" Sweat MIXCAL 3-way Thermostatic Mixing Valve w/ Temperature Gauge & Check Valve
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$218.79 each
In Stock
Get 11 Tue, Jul 7
Order by today, receive Tuesday
Size:
1"
Connection Type:
C x C
Features:
Gauge
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
1"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
The Caleffi MixCal three-way thermostatic mixing valve is used in systems producing domestic
hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set value compensating for both temperature and pressure fluctuations of incoming hot and cold water. The MixCal is fail cold: for any failure of cold or hot inlets or valve function, the hot water port closes.
Features:Adjustable thermostatic and pressure balanced mixing valve for point of distribution in domestic water systems and radiant hydronic heating systems.
Low-lead brass body.
Internal anti-scale materials.
Locking set point knob.
Max working pressure: 200 psi
Max inlet temp: 200°F
Adjustable range: 85° - 150°F
Gauge scale: 30° - 210°F
ASSE 1017 Listed.
Lead Plumbing Law Certified by IAPMO R&T:
0.25% max weighted average lead content
Features:
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 1" |
| Connection Type: | C x C |
| Connection Method: | Sweat |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Max Temp (F): | 150°F |
| Flow Capacity (Cv): | 3 |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Connection Type
Connection Method
Standards Met
Application
CURRENT ITEM
1"
C x C
Sweat
ASSE 1017
Point of Source
You May Also Need
1 Replacement Part
Check Valve Insert for 521
SKU: R39204
Caleffi
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.5 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-2 of 2 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I actually did buy again and again
First installation the hot inlet screen blinded off with debris from existing pipes. Bought a second valve and plumbed them in parallel for in floor radiant system. The 2nd valve shipped with one of three flat flange gasket. Contacted manufacturer to request missing parts. Still waiting on shipment, fanned my own from Ace. High quality valves, dialed the temperatures right in 👍
Steelhead Bob
Benzie County Michigan
5 years ago
Verified Buyer
Was this review helpful to you?
Excellent product.
I use this in DHW and radiant applications. I like the integrated temp gauge. High quality product as usual from this mfg.
Zach
New City, NY
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: What exactly is the check valve and what purpose does it serve? i am trying to compare this product and the one that appears to be identical, but without a check valve.
Asked by dogology 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffA check valve is a one way valve, so it only allows flow in one direction.
Was this review helpful to you?
Q: What exactly is the check valve and what purpose does it serve? i am trying to compare this product and the one that appears to be identical, but without a check valve.
Asked by dogology 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffCheck valves ensure that water is only flowing in one direction, preventing unwanted backsiphonage.
Was this review helpful to you?
