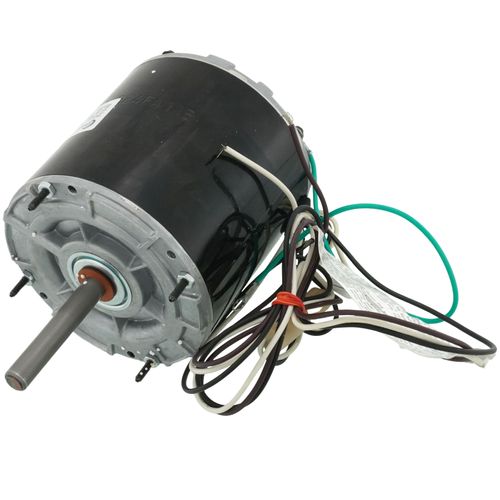

5" Multi Fit Condenser Fan Motor (208-230V, 1625 RPM, 1/4, 1/5, 1/6 HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$211.46 each
In Stock
Get 15 Tomorrow, Jul 3
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V, 208V, 230V
1625 RPM
Reversible
1/5, 1/6, 1/4 HP
Extended Studs
1.6 Amps
Description
–
Features:
- Replaces Hundreds of 1/6 - 1/4 HP Applications
- All angle mount
- Class B insulation
- Reversing plug
- Totally enclosed
- 36 inch leads
- 60ºC ambient
- Single speed
- Multi-mounting system
- Double sealed ball bearings
- Energy efficient PSC design
- One simple connection eliminates the need to select various horsepower or change capacitor sizes
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/5 1/6 1/4 |
| Voltage: | 208/230V 208V 230V |
| Bearings: | Ball |
| Duty: | Air Over |
| RPM: | 1625 |
| Poles: | 4 |
| Mount: | Extended Studs |
| Enclosure Type: | Totally Enclosed |
| Rotation: | Reversible |
| Hertz: | 60 |
| Speeds: | 1 |
| Frame: | 42 |
| Amperage: | 1.6 |
| Phase: | 1 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Diameter (Inches): | 5" |
| Max Ambient Temp (°F): | 140°F |
| Motor Orientation: | Any |
Contact
+
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Special Hours
8am–6:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Works great
Condensor motor on my outdoor unit was acting up, it would turn clockwise once and anticlockwise the next. I thought it might be the capacitor, but it wasn't. I ended up doing my research for my model no TTB024C100A2 and found this motor to be exact replacement. Took 30 mins to install and changed the cap while at it too. All perfect, saved alot of money by DIY'ng and not hiring out.
Amah
Connecticut
2 years ago
Verified Buyer
Was this review helpful to you?
Condenser fan motor
My order was delivered a day sooner than expected in good condition. It installed easily and worked perfectly. Great job guys!
Steve
Paragould, AR
5 years ago
Verified Buyer
Was this review helpful to you?
Good product
Replacement for a Trane XR 11 ac condenser fan motor with bad bearings. This motor has 3 mounting options with the included hardware. Easy to install has been running for 2 weeks now with no problems.
Bigspark
Milford Ct
6 years ago
Verified Buyer
Was this review helpful to you?
