$205.44 each
In Stock
Get 111 Tomorrow, Jul 3
Order by 6PM, receive Tomorrow
This item replaces: 3466, FDL6002
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1075 RPM
Reversible
3/4 - 1/5 HP
Resilient Ring - Extended Studs
9.1 Amps
Description
–

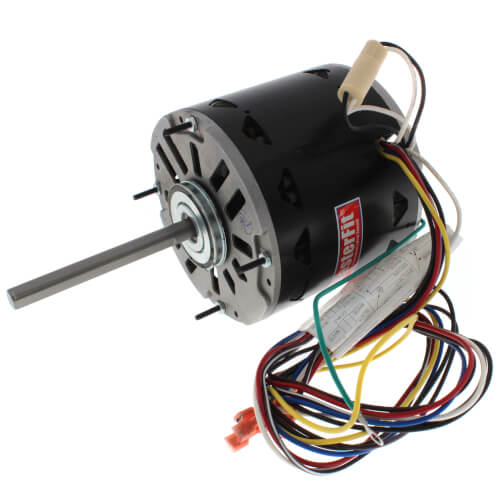

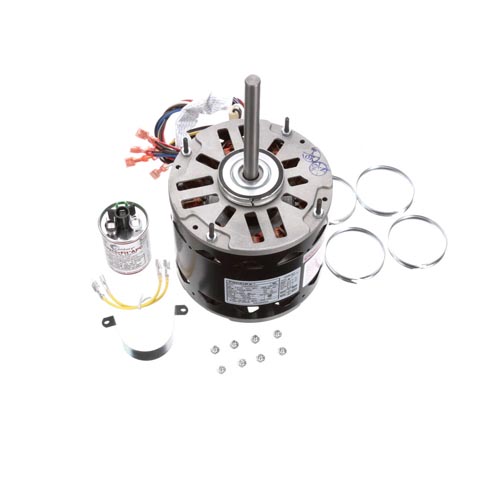

4-Speed PSC Motor, 3/4 - 1/5 HP, 1075 RPM (115V)
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Product Type: | Motor |
| Horse Power: | 3/4 - 1/5 |
| Voltage: | 115V |
| Duty: | Air Over |
| Speeds: | 4 |
| Mount: | Resilient Ring - Extended Studs |
| Phase: | 1 |
| RPM: | 1075 |
| Poles: | 6 |
| Enclosure Type: | Open Air Over |
| Rotation: | Reversible |
| Bearings: | Ball |
| Frame: | 48 |
| Hertz: | 60 |
| Insulation Class: | B |
| Amperage: | 9.1 |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
Contact
+
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Special Hours
8am–6:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Type
Horse Power
Voltage
Speeds
Phase
CURRENT ITEM
Permanent Split Capacitor
3/4 - 1/5
115V
4
1
You May Also Need
Product Reviews
4.86 out of 7 reviews
100% would recommend this product
5 star
86%
4 star
14%
3 star
0%
2 star
0%
1 star
0%
Showing 1-7 of 7 reviews
Direct fit replacement
Servicing an older York residential HVAC system, the bushings on the original motor had been making noise for a while. Chased down the A O Smith p/n to find this unit. Motor was direct fit replacement and is working great. Comes with a universal capacitor, (3 and 5mfd I think) system had a 10mfd unit, had to purchase separately. Back to quietly operating now.
Ned M.
Portland OR
1 years ago
Verified Buyer
Was this review helpful to you?
Fast shipping
Replaced AC blower motor for 1/4 of the price as compared to oem manufacturers!!
John
Wisconsin
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
This motor fit and worked as it should. Price was very good also. Shipped fast and had no issues with this one.
Tom
CT
4 years ago
Verified Buyer
Was this review helpful to you?
yes I would buy again
used in my furnace blower. works well sounds good . Wired and mounted easy. Thinking of buying another one as a back up.
Dave
Gettysburg PA
5 years ago
Verified Buyer
Was this review helpful to you?
furnace blower motor
Supply house usually has the parts I need at a fair price and the quick shipping keeps me coming back
Charley Wireman
K.C. Mo
5 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
All wires match up plugs right in.
Only reason I give 4 stars instead of 5 is it doesn't seem to blow as hard as the original motor. Otherwise it's super quiet and works fantastic.
Tommy B
Wittmann, AZ
5 years ago
Verified Buyer
Was this review helpful to you?
So far so good

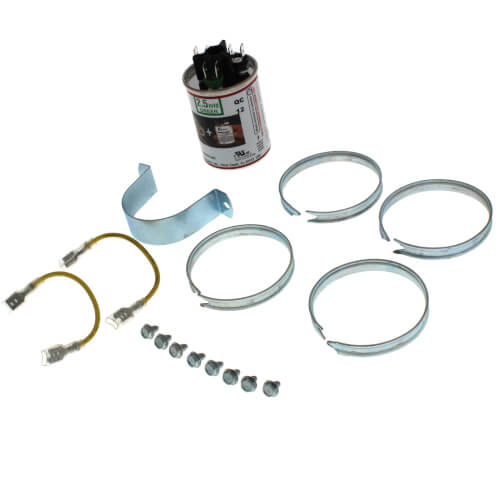

Bought this to replace stupid ESC motor (which would cost arm+2 legs to replace, and all just because the potted controller couldn't get rotor position feedback). So now have something robust, cost-effective and long lasting. Fits right in to the existing blower assembly. Comes with the run cap, which is multiple values in one package, and kind of nifty since you get some extra terminals to play with, which makes wiring a bit easier.
SJH
Woodland, CA
6 years ago
Verified Buyer
