Description

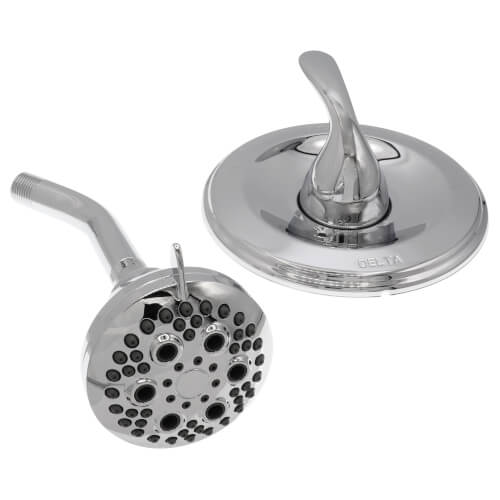

Classic Monitor 13 Series Shower Trim

Features:
  • WaterSense certification promotes water conservation
  • Pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and handshower with the touch of a finger
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Spray settings include: Full Body
  • Assembled dimensions: 9-1/2 in. H x 7-15/32 in. D x 7 in. W
  • Single function operation
  • Single lever handle for ease of temperature control
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Spray settings include: Full Body

Standard Specifications:
  • Monitor® 13 Series pressure balanced bath mixing valve.
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
  • For use with MultiChoice® Universal rough valve body. (R10000 Series)
  • Back-to-back installation capability.
  • Solid brass fabricated body.
  • Temperature only controlled with metal lever handle.
  • Field adjustable to limit handle rotation into hot water zone.
  • 120° maximum handle rotation.
  • All parts replaceable from the front of the valve.
  • Models with "LTS" suffix supplied with 7" long non-diverter slip-on spout (RP36498).
  • T13220-H2O uses RP46384.
  • T13220-H2OT uses RP54752.
  • DPE = 1" deeper escutcheon (RP21633).
  • Note: Product will be marked with flow rate of specific showerhead.
  • Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
  • 5 Year Limited Warranty for usage in all industrial, commercial and business applications.
Read more
Specs
Type:
Trim Kit
Material:
Brass
×
