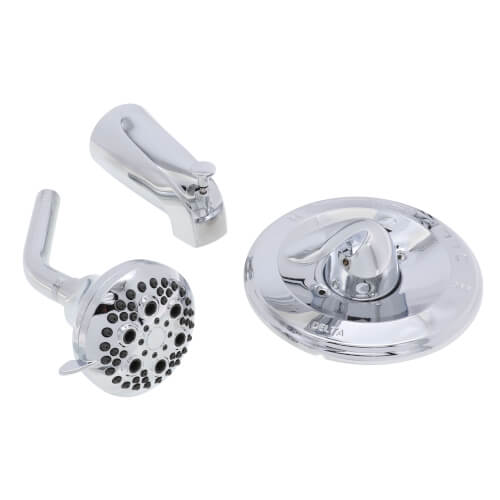

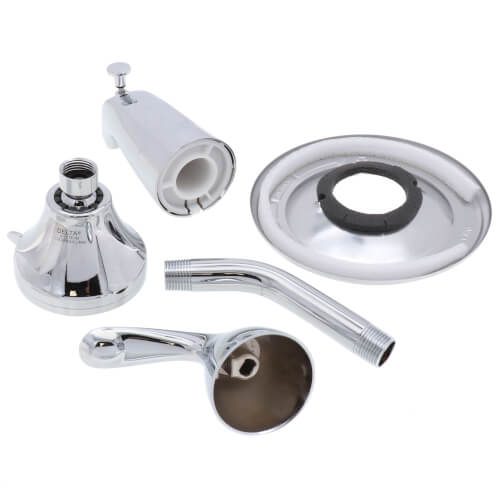

Classic Monitor 13 Series Tub and Shower Trim w/ Cartridge, T13420

Classic Monitor 13 Series Tub and Shower Trim with Cartridge

Features:

• WaterSense certification promotes water conservation
• Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
• Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and handshower with the touch of a finger
• Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
• Spray settings include: Full Body
• Single function operation
• Single lever handle for ease of temperature control
• Meets standards set by Americans with Disabilities Act (ADA)
• Spray settings include: Full Body

Standard Specifications:

• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice® Universal rough valve body. (R10000 Series)
• Back-to-back installation capability.
• Solid brass forged body.
• Temperature only controlled with metal lever handle.
• Field adjustable to limit handle rotation into hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
• Models with "SOS" suffix supplied with slip-on spout for 1/2" C.W.T.
• Models with "PD" suffix supplied with 6" long pull-down diverter spout (RP17453).
• Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
• Note: Product will be marked with flow rate of specific showerhead.
• Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
• 5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.
