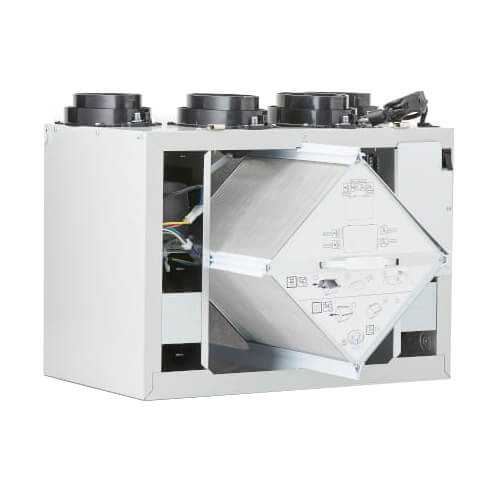

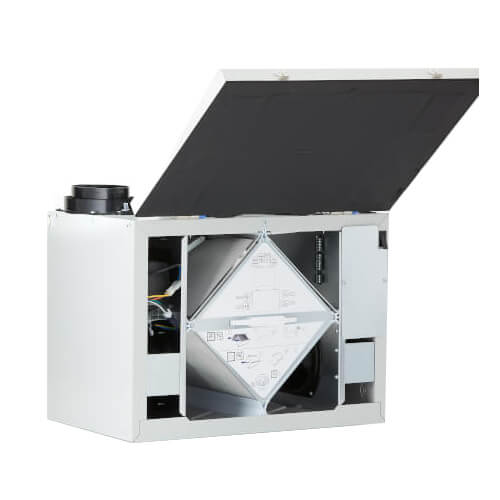

FLEX 100H ES Heat Recovery Ventilator w/ TurboTouch (104 CFM)

Application:

As Fantech's masterpiece of versatility, features and efficiency, the Flex 100H ES is ideal for high-rise apartment applications, condominiums, single and multi family homes. With its compact top port design featuring 5 inch oval collars and the included EZ-MountTM wall bracket, the Flex 100H ES can be installed in spaces as small as 24 inches, such as a closet or maintenance room.

How it works:

Unlike traditional HRVs that require excessive power to meet supplemental ventilation needs, the compact, yet powerful Flex 100H ES allows for sizing based entirely on principal ventilation requirements. With its exclusive TurboTouchTM feature, the Flex 100H ES can deliver up to 50% more exhaust capacity to easily meet supplemental ventilation needs whenever additional airflow is required.

A Heat Recovery Ventilator is a complete whole house ventilation system that incorporates a supply motor and an exhaust motor in one unit. It is designed to bring a continuous supply of fresh air into the home while exhausting an equal amount of contaminated air. HRVs use what is known as a "sensible" heat recovery core. The special aluminum core transfers heat from the exhaust air stream to the incoming air stream. Fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs. HRVs are designed for colder areas of the country that have longer heating seasons as well as drier desert areas of the South.

Features:

• Airflow up to 104 cfm @ 0.4" PS serves 1 to 7 bedroom homes
• Top-mounted ports for easier duct connectivity
• Unobstructed front access
• The TurboTouch feature delivers up to 50% more exhaust capacity
• Aluminum core provides superior heat transfer capability
• Integrated airflow measurement system allows for rapid and accurate reading of airflow during installation
