Description
  • Airflow up to 159 cfm @ 0.4" PS serves 2 to 5 bedroom homes
  • Side port connections
  • Compatible with Fantech's low-voltage controls

Application

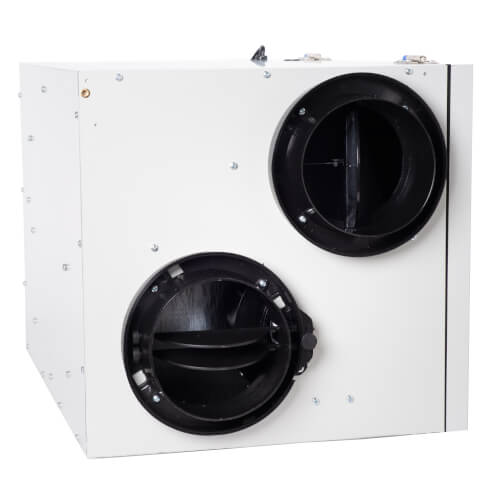

Fantech's side port connection HRV for budget conscious house projects. The SHR 150 is ideal for projects that demand a higher efficiency, the unit is designed for higher static pressure applications.

How it works

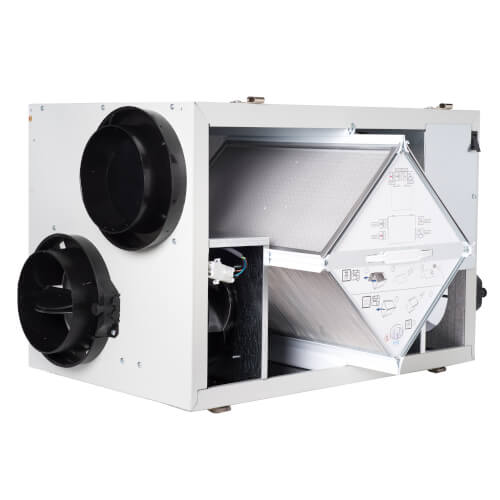

The unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs, while during summer, the incoming air is pre-cooled if the house is equipped with an air cooling system. The SHR 150 is equipped with automatic defrost mechanisms so you can use your HRV all year long.

Defrost cycle

A preset defrost sequence is activated at an outdoor air temperature of 23°F (-5°C) and lower. During the defrost sequence, the supply blower shuts down & the exhaust blower switches into high speed to maximize the effectiveness of the defrost strategy. The unit then returns to normal operation, and continues cycle.
Read more
Specs
Duct Size:
6"
Voltage:
120v
Hertz:
60
Amperage:
1.4
Wattage:
150
Max Airflow (CFM):
159
Speeds:
3
Weight (lbs):
46 lbs
Warranty:
Limited Lifetime Warranty on Aluminum Core
5 Year Parts
7 Year Motor
×
