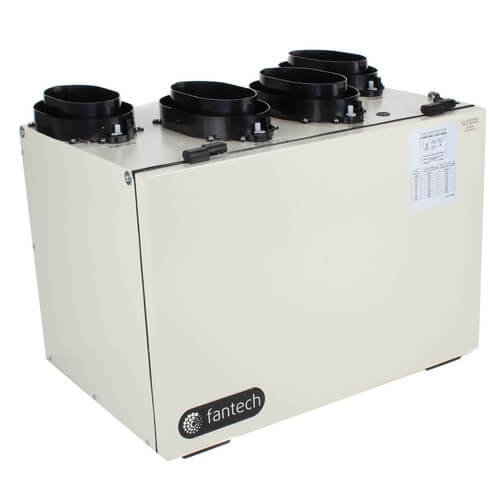

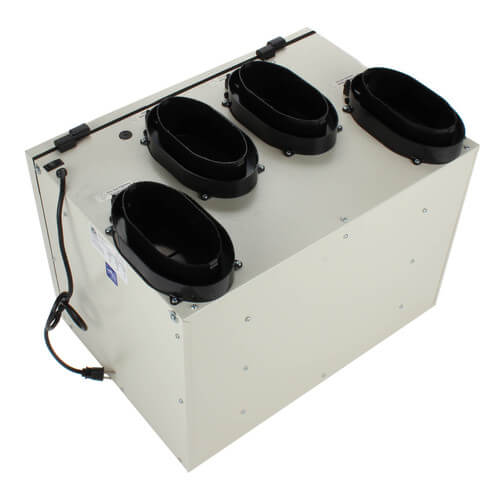

VHR Series Heat Recovery Ventilator w/ Fan Shutdown Defrost, 6" Top Ports
VHR Series Heat Recovery Ventilator w/ Fan Shutdown Defrost, 6" Top Ports
A preset defrost sequence is activated at an outdoor air temperature of 23°F and lower. During the defrost sequence, the supply blower shuts down & the exhaust blower switches to high speed to maximize the effectiveness of the defrost strategy. The unit then returns to normal operation, and continues the cycle.
Features:
- Airflow up to 159 CFM (75 L/s) @ 0,4"Ps (100 Pa)
- 6" (152mm) oval duct connections with integrated airflow measurement
- Compact design, only 23.75" (603 mm) wide
- Backward curved RadiCAL blade motors
- Electrostatic filters (washable)
- Aluminum heat recovery core
- Removable screw terminal for easy connection
- Easy Core Guide Channels For Removing Core
- Only weighs 45 lbs (20Kg)
| Duct Size: | 6" |
|---|---|
| Speeds: | 3 |
| Max Airflow (CFM): | 159 |
| Min Airflow (CFM): | 85 |
| Voltage: | 120v |
| Hertz: | 60 |
| Phase: | 1 |
| Length (Inches): | 23-3/4" |
| Width (Inches): | 17-3/16" |
| Height (Inches): | 16.25" |
| Weight (lbs): | 45 lbs |
| Warranty: | 5 Year (Parts) 7 Year (Motor) Limited Lifetime (Aluminum Core) |
Questions?
7 Year (Motor)
Limited Lifetime (Aluminum Core)
Reviewed by 5 customers
ventilator
Rated 4 out of 5 starsVerified Buyer
Comments about VHR Series Heat Recovery Ventilator w/ Fan Shutdown Defrost, 6" Top Ports
I recently ordered the heat recovery ventilator from your company. The product is working out fine.They promised it December 24th, I did not see the product til well into January. I called to find out the status and the said they never called me back to give me an idea of where it was . I also would have liked to have been sold the duct work for it as well, cause my guy had to leave and come back with some ( extra day) That was a bit disappointing but the product is now installed and work fine.
I would buy this again
Rated 5 out of 5 starsVerified Buyer
Comments about VHR Series Heat Recovery Ventilator w/ Fan Shutdown Defrost, 6" Top Ports
good service
great product
Rated 5 out of 5 starsVerified Buyer
Comments about VHR Series Heat Recovery Ventilator w/ Fan Shutdown Defrost, 6" Top Ports
fast shipping and no hassle to purchase from
Unit damaged at factory and still shipped out.
Rated 3 out of 5 starsVerified Buyer
Comments about VHR Series Heat Recovery Ventilator w/ Fan Shutdown Defrost, 6" Top Ports
The first unit I received was badly damaged. A big dent in one side and a seized fan. There was no damage at all to the shipping box which clearly came from the factory, so the damage definitely was not caused in shipping. You could not have caused this amount of damage to the unit in transit without seeing damage to the outside of the box. So this leads me to believe it must have left the factory like that. Someone there likely dropped the unit and did not want to get into trouble so they just stuck it in a box and sent it along. I say all this to warn others to be careful about inspecting their unit and checking it's functionality before installing. Quality control at the manufacturer is obviously suspect. That being said, Supply House shipped out a new unit and had the damaged unit picked up promptly, so I'm still a loyal customer with them. The replacement unit seems operate as expected. Too soon to comment on reliability.
I haven't gotten around to installing it yet.
Rated 5 out of 5 starsVerified Buyer
Comments about VHR Series Heat Recovery Ventilator w/ Fan Shutdown Defrost, 6" Top Ports
It showed up real quick and in perfect shape.
