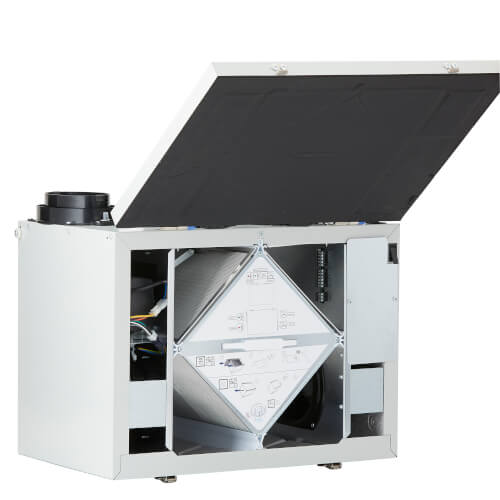

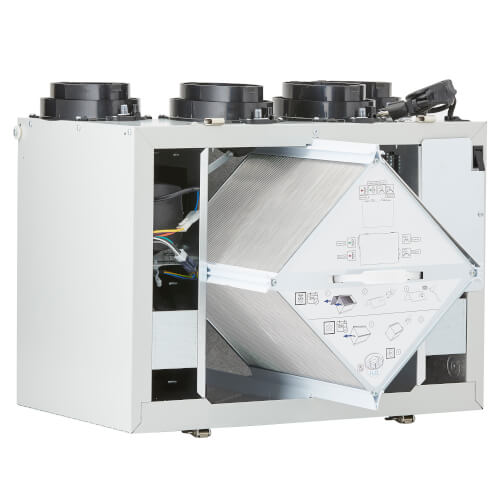

VHR Series Heat Recovery Ventilator w/ WinterGuard Recirculation Defrost, 5" Top Ports, 104 CFM
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
VHR100RES has been discontinued
Discontinued December 30, 2021
This product was discontinued by the manufacturer.
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
HERO 120H Heat Recovery Ventilator w/ WinterGuard Recirculation Defrost, 5" Top Ports, 118 CFM
Product Highlights
–
5"
Yes
104 CFM
168 Watts
120v
1.4 Amps
Description
–
A great mid-range heat recovery ventilator, the VHR100R ES is ideal for
high-rise apartment applications, condominiums, single and multi-family
homes. With its compact top port design featuring 5 inch oval collars
and the included EZ-MountTM wall bracket, the VHR100R ES can be
installed in spaces as small as 24 inches, such as a closet or
maintenance room.
The VHR100R ES is equipped with an automatic recirculation defrost mechanism so that even if you live in the coldest climates you can use your HRV all year long.
Features
The VHR100R ES is equipped with an automatic recirculation defrost mechanism so that even if you live in the coldest climates you can use your HRV all year long.
- Airflow up to 104 cfm @ 0.4" PS serves 1 to 7 bedroom homes
- Top-mounted ports for easier duct connectivity
- Unobstructed front access
- Aluminum core provides superior heat transfer capability
- Integrated airflow measurement system allows for rapid and accurate reading of airflow during installation
Features
- Removable screw terminal for easy connection
- Lightweight: only 39 lbs (17.7 kg) including core
- Super compact size
- Top port design fits in tight spaces
- Includes EZ-Mount wall bracket
- Aluminum heat recovery core
- Multiple speed operation
- Internal recirculation defrost
Specs
–
| Duct Size: | 5" |
|---|---|
| Speeds: | 3 |
| Energy Star Rated: | Yes |
| Air Flow Capacity (CFM): | 104 |
| Wattage: | 168 |
| Voltage: | 120v |
| Hertz: | 60 |
| Phase: | 1 |
| Amperage: | 1.4 |
| Weight (lbs): | 39.2 lbs |
| Warranty: | 5 Year (Parts) 7 Year (Motor) Limited Lifetime (Aluminum Core) |
