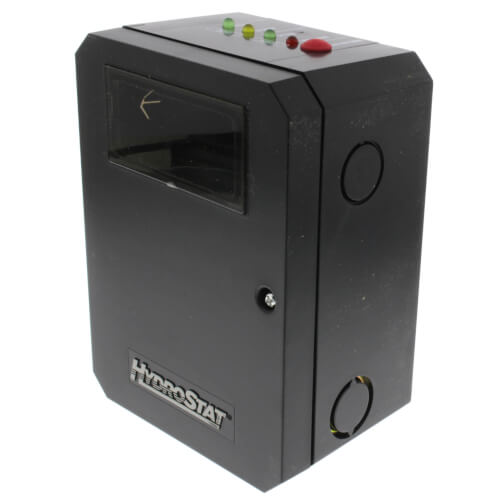

Model 3150 HydroStat for Oil Boilers (Temperature Limit & LWCO)
Hover image to zoom

Model 3150 HydroStat for Oil Boilers (Temperature Limit & LWCO)

SKU:
48-3150
Rating:
(10)
Q&A:
(1)
Model 3150 HydroStat for Oil Boilers (Temperature Limit & LWCO)
Hover image to zoom
$163.48 each
In Stock
In Stock
Get 210 Wed, Feb 28
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
120v

Description

NOTE: Provides temperature functionality only when installed on existing standard immersion well. LWCO functionality activated when installed on Electro-Well (sold separately!) Replaces: L7124, L7124C, L7148A, L7224A, L7224C, L7224U, L7248C, L8124A, L8124C, L8148A, L8148C

Overview
By installing the control on an existing immersion well, HydroStat® can be used as a universal replacement for common Aquastat® models. (see "Note" at bottom for models this will replace) Whether it's a cold start or a tankless coil boiler, Hydrostat® will provide all the temperature functions of the control being replaced.

Or, install HydroStat® on a Hydrolevel Electro-Well (sold separately) to automatically activate the low water cut-off function. With HydroStat® you can add low water cut-off protection to new or existing installations without the added time and cost to install a separate control.

Features
  • Replaces Cold Start and Triple-Action Aquastats®
  • Install it on existing immersion well for full temperature functionality, or
  • Install it on an Electro-Well to add low water cut-off protection
  • Simple Dial Type Temp and Differential Settings
  • Easy to wire - uses the same terminal designations as common Aquastat® models
  • Dynamic Temperature Display
  • Four on-board diagnostic indicating lights

Specifications
  • Burner Contacts: 7.4 FLA, 44.4 LRA@120VAC
  • Circulator Contacts: 5.8 FLA, 34.8 LRA@120 VAC
  • Operating Range - Low Limit: OFF or 110°F - 200°F
  • Operating Range - High Limit: 100°F - 220°F
  • Operating Range - Low Differential: 10°F - 30°F
  • Operating Range - High Differential: 10°F - 30°F

Specs

Voltage:

120v

Hertz:

60
