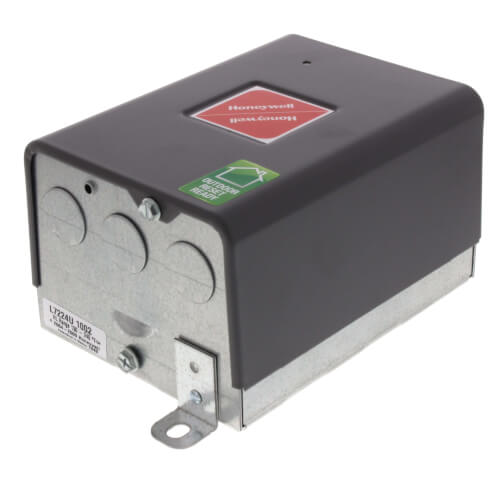

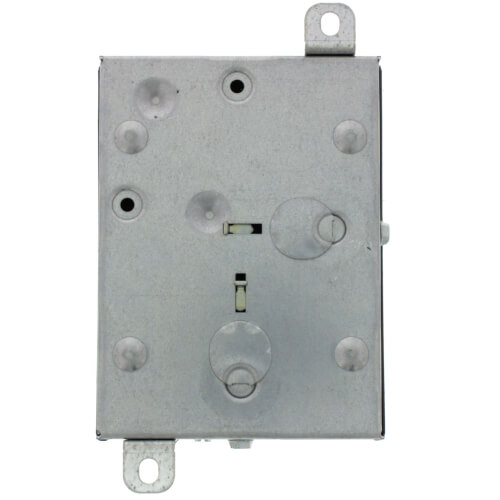

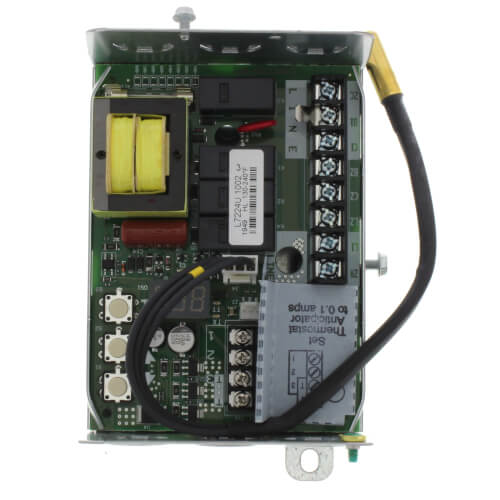

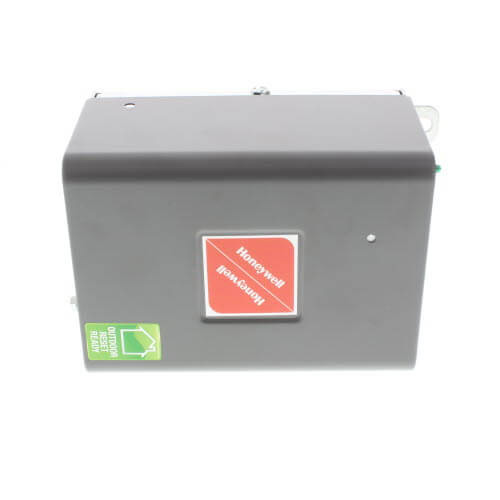

120 Vac Oil Electronic Aquastat
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$195.05 each
In Stock
Get 478 Wed, Jun 14
More Available
Order by today, receive Wednesday
MANUALS (3)
This item replaces: L8124A1114
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Circulator: 7.4 A @ 120 Vac, 44.4 A inrush, Burner: 7.4 A @ 120 Vac
Adjustable, 10° to 25°F (Low Limit), 5° to 20°F
Flush, Horizontal, Vertical
110°F to 220°F
7-1/8"
2-5/8" Depth
Description
–
Specifications
- Burner Control Circuit at 120V (A): 7.4
- Application: Hydronic Heating Systems, Domestic Hot Water Service
- Differential: 130 to 240 F
- Full Load Amps at 240VAC: 3.8
- Full Load Amps at 120V: 7.5
- Locked Rotor Amps at 120V:44.4
- Mounting:Vertical
- Temp. Range:5 to 20 F
- Locked Rotor Amps at 240V:22.2
- Item:Aquastat Controller
- Height (In.):7-1/8"
- Depth (In.): 2-5/8"
- Width (In.): 4-1/4"
- Type: Oil Electronic Primary
- Includes: High Limit Protection With Low Limit And Circulator Control
- Requires: 25 Volt Thermostat
- Weight: 2.60
Specs
–
| Application: | Oil Aquastat Controller |
|---|---|
| Temperature Range (F): | 110°F to 220°F |
| Electrical Rating: | Circulator: 7.4 A @ 120 Vac 44.4 A inrush Burner: 7.4 A @ 120 Vac |
| Min Temp Differential: | 5°F 10°F |
| Max Temp Differential: | 20°F 25°F |
| Differential: | Adjustable 10° to 25°F (Low Limit) 5° to 20°F |
| Height: | 7-1/8" |
| Width: | 4-1/4" |
| Depth (Inches): | 2-5/8" |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Max Ambient Temp (°F): | 150°F |
| Min Ambient Temp (°F): | -30 F |
| Mount: | Flush Horizontal Vertical |
| Voltage: | 120v |
| Frequency: | 60 Hz |
| Max Power Consumption: | 2000 VA |
