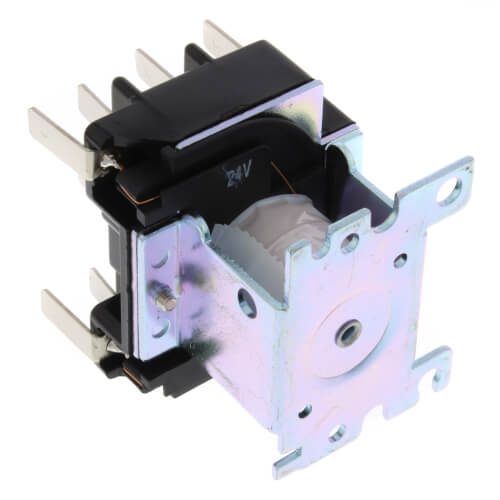

2PDT HVAC Relays
Jard 2PDT (Double Pole Double Throw) relays are primarily used for various
applications in heating, air conditioning and refrigeration.
They are also suitable for general purpose switching
applications in appliances, vending machines, fan controls,
and business machines provided the device being controlled
is within the electrical limits of the relay.
Features:
- Replaces Honeywell, White-Rodgers/RBM
- 2.13" x 1.88" x 2.25"

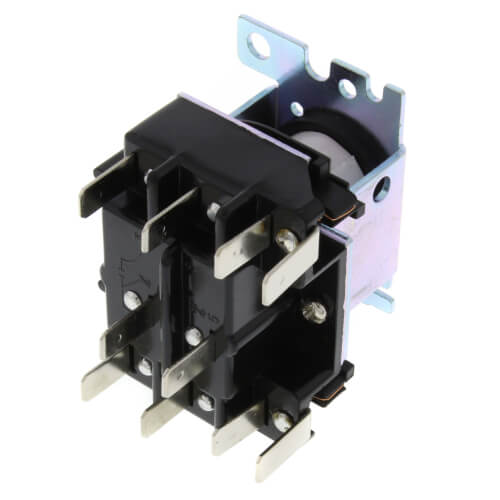

- Quick-connect terminals
- Base designed for easy replacement of competitive relays

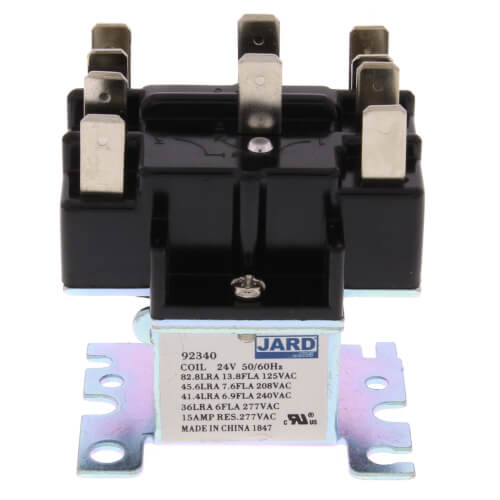

- Molded terminal numbers and circuit diagram on top of relay
- UL and CUR
Specifications
- Coil Voltage: 24
- Terminals 1-2-3: Power
- Terminals 4-5-6: Power
- Replaces Essex/RBM: 90-340
- Replaces Honeywell: R8222D1014
