Mini 3-1, Point-of-Use, Tankless Electric Water Heater
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$219.00 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (5)
This item replaces: MINI3
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Electric
2 MAX GPM
10 Year Limited/3 Year Parts Warranty
6.5"
7-1/2" Width
3-1/4" Depth
Description
–
Stiebel Eltron Mini 3-1, Point-of-Use, Tankless Electric Water Heater
Stiebel Eltron has been a world leader in advanced water heating technology for almost 90 years. Our engineering excellence and high-quality manufacturing results in products fulfilling the highest expectations of performance & reliability. Mini Series tankless models are ideal for residential and commercial point-of-use hand-washing sink applications including: bathrooms, cabins, offices, stores, warehouses, and restaurants. Minis are 99% efficient, heating water instantaneously and endlessly and, unlike tank water heaters, have no stand-by energy losses. No venting is necessary. The sleek, super-compact design allows installation with the unit visible. The temperature of the water delivered by a Mini depends on the incoming cold water temperature, the water flow through the unit, and the size of the Mini model that is installed. Mini models excel at supplying water at a constant temperature but must be carefully matched to the flow rate of the sink being plumbed to operate properly.
Stiebel Eltron has been a world leader in advanced water heating technology for almost 90 years. Our engineering excellence and high-quality manufacturing results in products fulfilling the highest expectations of performance & reliability. Mini Series tankless models are ideal for residential and commercial point-of-use hand-washing sink applications including: bathrooms, cabins, offices, stores, warehouses, and restaurants. Minis are 99% efficient, heating water instantaneously and endlessly and, unlike tank water heaters, have no stand-by energy losses. No venting is necessary. The sleek, super-compact design allows installation with the unit visible. The temperature of the water delivered by a Mini depends on the incoming cold water temperature, the water flow through the unit, and the size of the Mini model that is installed. Mini models excel at supplying water at a constant temperature but must be carefully matched to the flow rate of the sink being plumbed to operate properly.
- Professional installation recommended
- Can be mounted with fittings pointed up or down
- Pre-wired pigtail included
- Refer to the Mini Sizing Guide to determine which size you need; call Stiebel Eltron at 800.582.8423 with any sizing questions
- Mini 3-1 tankless electric water heaters are designed to provide warm water around 100 degrees F /38 degrees C for hand washing at 1 standard flow (0.5 gpm) sink
- Mini 3-1 models require 120 volt electric service, 1 dedicated 30 amp breaker, 10 gauge copper wiring, and have 3/8" plumbing connections
- Mini 3-1 models are shipped with a 0.5 gpm pressure compensating flow reducer/aerator that fits on most faucets and should be installed

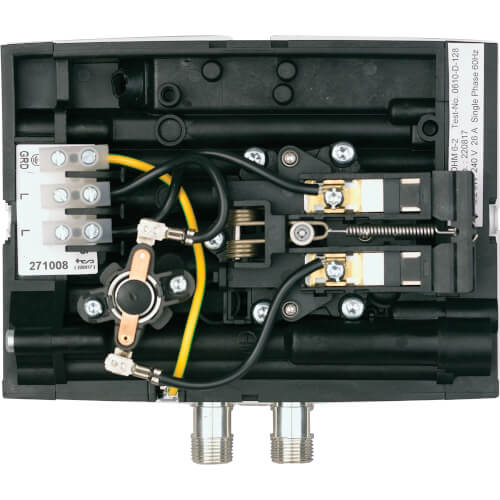

- The Nichrome (nickel-chromium) Direct Coil™ heating element in all Mini Series models is controlled by a flow switch to prevent dry-firing and failure, and is additionally equipped with a safety high-limit with manual reset
Specs
–
| Application: | Point of Use 1 Sink |
|---|---|
| Fuel Type: | Electric |
| Max Flow (GPM): | 2 |
| Wire Size: | 10 |
| Breaker: | 25 |
| KW (120V): | 3 |
| Min Flow (GPM): | .4 |
| Height: | 6.5" |
| Width (Inches): | 7-1/2" |
| Depth (Inches): | 3-1/4" |
| Voltage: | 120v |
| Height (Inches): | 6.5" |
| Warranty: | 10 Year Limited/3 Year Parts |
| Water Connection: | 3/8" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Fuel Type
KW (120V)
Depth (Inches)
Voltage
CURRENT ITEM
Point of Use
1 Sink
1 Sink
Electric
3
3-1/4"
120v
You May Also Need
Product Reviews
4 out of 1 review
100% would recommend this product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Small and effiecent Point-of-use
The unit is small and fit anywhere in the Bathroom Vanity Cabinet, I had to install a dedicated 30A breaker with 10G cable.
This unit was install in addition to my Tankless water heater. Over all, good product, would be great if a 12"-16" hose was included.
Oil2Gas
NJ
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: will this unit work on hot water line until water gets hot from large heater about 80 ft. away
Asked by jojo 12 years ago
Add your answer
-
Well yes it would work. However there is no thermal shutdown so even when the water from the main heater gets got, this unit will keep heating as well. Possibly lead to unit failure, skin burns etc etc. This is a very simple unit, magnetic relay activates with water flow and turns heater on. I would recommend getting a hot water circulation pump and valve, simple to install, cheap ones have timers, expensive ones have smart timers which learn when you use hot water the most and adjust their timings appropriately.
Was this review helpful to you?
Q: can thiis unit handle 2 sinks in a church bathroom. hand washing only?
Asked by Kim 12 years ago
Add your answer
-
It should be able to handle 2 sinks as long as its only hand washing, although if you use them simultaneously you may only get warm and not hot water.
Was this review helpful to you?
-
Yes for hand washing 2 sinks should not be a problem.
Was this review helpful to you?
