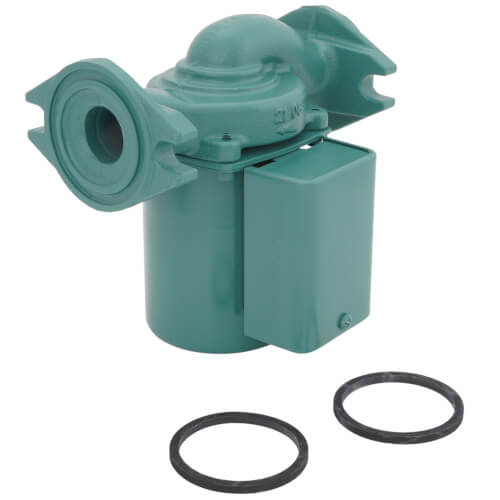

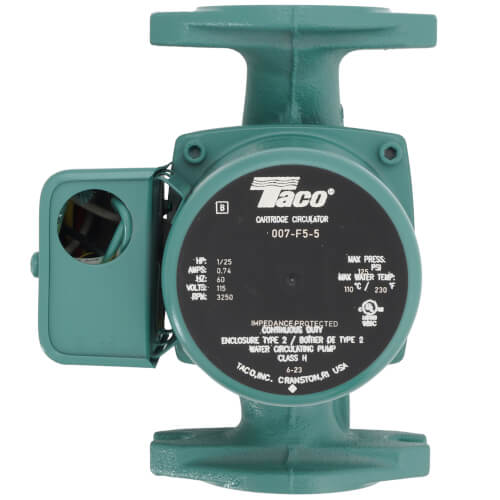

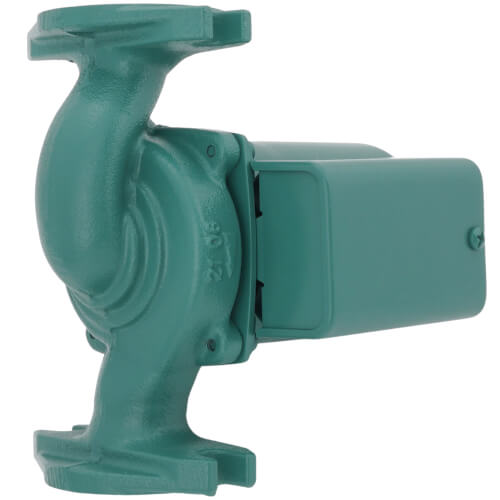

007 3/4" - 1-1/2" Rotated Flange Cast Iron Circulator, 1/25 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/25 HP
3 Year Warranty
Flanged x Flanged Connection
23 MAX GPM
125 PSI
Description
–
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The Taco 007-F5 circulator pump is one of the industry’s top-selling hydronic circulators, and for good reason. It features a unique cartridge design that’s completely field serviceable plus a self-lubricating system that’s virtually maintenance-free. With this boiler circulating pump, Taco has eliminated many of the typical circulator pain points to create a quiet, efficient and reliable option. It’s designed for use with residential hydronic and radiant heating systems..
Features:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 007-042RP
The Taco 007-F5 circulator pump is one of the industry’s top-selling hydronic circulators, and for good reason. It features a unique cartridge design that’s completely field serviceable plus a self-lubricating system that’s virtually maintenance-free. With this boiler circulating pump, Taco has eliminated many of the typical circulator pain points to create a quiet, efficient and reliable option. It’s designed for use with residential hydronic and radiant heating systems..
Features:
- Standard High Capacity Output Compact Design
- Quiet, Efficient Operation
- Unique Replaceable Cartridge Design-Field Serviceable
- Direct Drive-Low Power Consumption
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability --Maintenance Free
- Universal Flange-to-Flange Dimensions
- Cast Iron Construction
- Hydronic Heating
- Radiant Heating
- Hydro-Air Fan Coils
- Indirect Water Heating
- Chilled Water Cooling
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 007-042RP
Specs
–
| Application: | Zoning |
|---|---|
| Material: | Cast Iron |
| Amperage: | 0.71 |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/25 |
| Connection Size: | 1-1/2" 1" 3/4" |
| Flow Range (GPM): | 0-23 |
| Max Flow (GPM): | 23 |
| Head Range (ft.): | 0-10 |
| Max Head (Ft): | 10 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3250 |
| Temperature Range (F): | 40°F - 240°F |
| Connection Type: | Flanged x Flanged |
| Warranty: | 3 Year |
| Replaces: | 007-F3 007-F4 |
