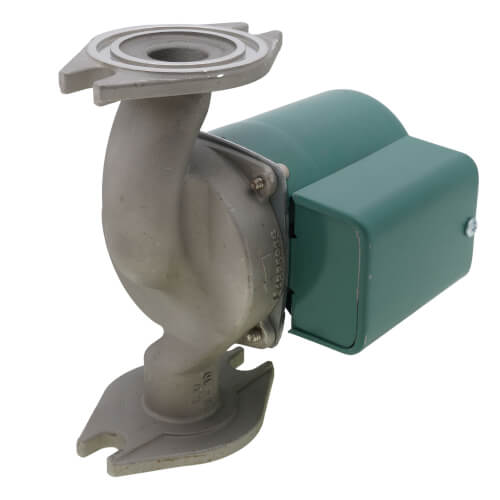

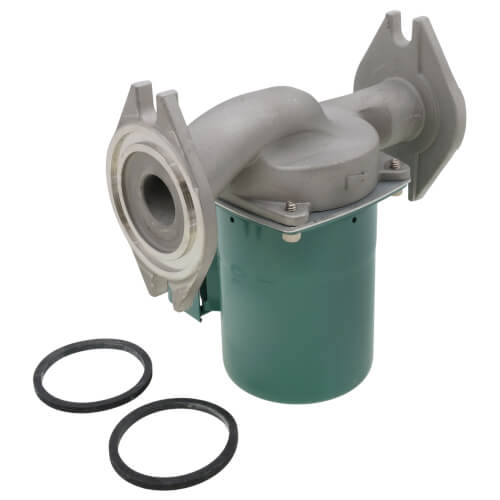

008 Stainless Steel Circulator w/ Integral Flow Check, 1/25 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$611.68 each
In Stock
Get 4 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (4)
This item replaces: 008-ZSF6-IFC
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/25 HP
3 Year Warranty
Flanged x Flanged Connection
12.5 MAX GPM
125 MAX PSI
Description
–
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
The redesigned 008-IFC features a larger removable Integral Flow Check, designed to improve pump performance, simplify piping and reduce installation costs. The spring loaded IFC replaces a separate in-line flow check to ensure protection against reverse flow and gravity flow. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.
Application:
Features:
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 008-045RP
Valve Assembly Trans/Relay: 0010-025RP
The redesigned 008-IFC features a larger removable Integral Flow Check, designed to improve pump performance, simplify piping and reduce installation costs. The spring loaded IFC replaces a separate in-line flow check to ensure protection against reverse flow and gravity flow. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.
Application:
- Hydronic Heating/Cooling
- Hydro-Air Fan Coils
- Radiant
- Domestic Water Recirculation (Bronze / Stainless Steel)
- Indirect Water Heaters
Features:
- Integral Flow Check: Simplifies piping, Prevents reverse flow and gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
- Unique replaceable cartridge-field serviceable
- Unmatched reliability-maintenance free
- Quiet, efficient operation
- Self lubricating, No mechanical seal
- Wide range of applications
- Flanged connections
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 008-045RP
Valve Assembly Trans/Relay: 0010-025RP
Specs
–
| Application: | Heating |
|---|---|
| Material: | Stainless Steel |
| Horse Power: | 1/25 |
| Type: | Pump |
| Voltage: | 115V |
| Hertz: | 60 |
| Phase: | 1 |
| Amperage: | 0.84 |
| RPM: | 3250 |
| Head Range (ft.): | 0-15 |
| Max Head (Ft): | 15 |
| Flow Range (GPM): | 0-12.5 |
| Max Flow (GPM): | 12.5 |
| Temperature Range (F): | 40°F to 230°F |
| Max Pressure (PSI): | 125 |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 3/4" 1-1/2" 1" 1-1/4" |
| Warranty: | 3 Year |
