Product Highlights
–
3/4"
Press Connection
Brass
Full Port
400°F Max Temp
-40°F Min Temp
Description
–

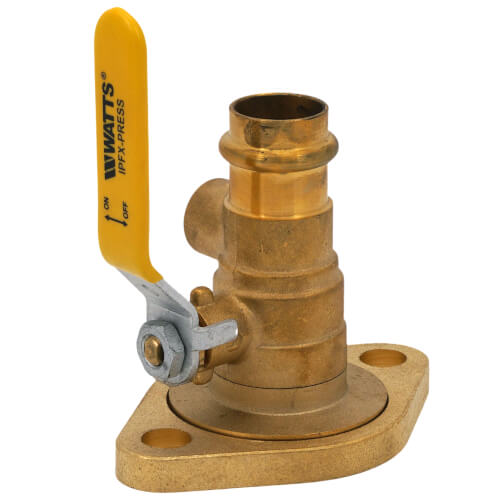

The 3/4" IPFX-Press is a full port isolation pump valve which features a swivel flange and press end connections. This flanges allows for the installer to position the handle of the valve in an optimal orientation for use.
Features:
Features:
- Lever Handle
- Swivel Flange
- Press Connection
- Leaded Valve
- Actuation: No
- Assembled Dry: Yes
- Balance Stop Plate: No
- Ball Material: Brass
- Body Finish: Brass
- Body Material: Brass
- Buy American Act Compliant: NO
- Control Type: Lever Handle
- EAN: 098268185843
- Inlet Connection Size: 3/4"
- Inlet Connection Type: Flanged joint
- Maximum Temperature-Fahrenheit: 400
- Minimum Temperature-Fahrenheit: - 40
- Outlet Connection Size: 3/4"
- Outlet Connection Type: Press
- Seat Material: PTFE
- Series: IPFX
- Stem Packing Material: PTFE
- Stem Shaft: Material Brass
- Stem Type: Bottom Loaded Blowout Proof
- Valve Style: 2-piece
- WOG Rating: 600 PSI
Specs
–
| Size: | 3/4" |
|---|---|
| Max Temp (F): | 400°F |
| Connection Type: | Press |
| Min Temp (F): | -40°F |
| Material: | Brass |
| Type: | Isolation Flange |
| Port Type: | Full Port |
