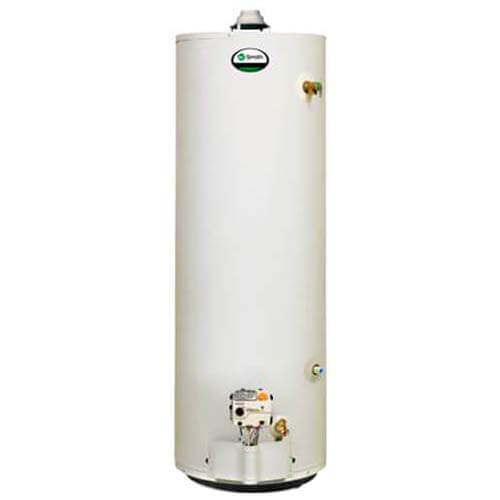

40 Gallon GCRL-40 40,000 BTU ProLine Residential Gas Water Heater - Short (NG)

Note: The gallons listed in the product name above represent the unit's nominal capacity. The gallons listed in the product specifications below represent the rated capacity of the unit.

Note: ProMax name is now ProLine.

The ProLine® 400/401 Series gas water heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value.

Featuring a 40-gallon tank and a 40,000 BTU gas burner, the GCRL-40 Standard Vent delivers a first hour rating of 70 gallons and a recovery rate of 41 gallons per hour. With an 0.62 Energy Factor, this water heater is not ENERGY STAR® qualified. It carries a 6-year limited tank warranty, and meets Low NOx emission requirements.

Features:

• INTELLIGENT CONTROL LOGIC
  • The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance.
  • Uses a thermopile to generate the power needed to operate the electronic gas control without requiring an external power source.
  • The electronic gas control incorporates an LED status indicator that monitors system operation and service diagnostics.
  • *Not available on 60,000 BTU input models (GCRX-50 and GCRX-55).

GREEN CHOICE GAS BURNER

• Patented eco-friendly burner design reduces NOx emissions by up to 33% and complies with Low- NOx emission requirements of less than 40 ng/J.
• DYNACLEAN DIFFUSER DIP TUBE
  • Reduces lime and sediment buildup and maximizes hot water output. Made from long-lasting PEX cross-linked polymer.
• COREGARD ANODE ROD
  • Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods.
• PUSH-BUTTON PIEZO IGNITOR
  • Makes lighting the pilot fast and easy with one hand push-button spark ignition.
• HEAT TRAP NIPPLES
  • Factory-installed for faster installation.
• BLUE DIAMOND GLASS COATING
  • Provides superior corrosion resistance compared to industry standard glass lining.
• ENHANCED FLOW BRASS DRAIN VALVE
  • Our residential water heaters have a solid brass, tamper resistant, enhanced flow, ball type, drain valve.
  • Uses a standard female hose fitting that allows for fast and easy draining during maintenance.
  • Designed for easy operation, this valve includes an integral screwdriver slot that features a 1/4 turn (open/close) radius, which not only permits full straight-through water flow but also a quick and positive shut off.
• CODE COMPLIANCE
  • Meets UBC, CEC and HUD National Codes.
  • Meets the thermal efficiency and standby loss requirements of the U. S. Department of Energy and current edition of ASHRAE/IENSA 90.1.
  • Complies with the Federal Energy Conservation Standards effective April 16, 2015, in accordance with the Energy Policy and Conservation Act, (EPCA), as amended.
• HIGH ENERGY FACTORS
  • Eco-Friendly non-CFC foam insulation, external heat traps and specially designed combustion chamber combine to produce a high Energy Factor for maximum savings on operating costs.
• CSA CERTIFIED AND ASME RATED
• T&P RELIEF VALVE
• MAXIMUM HYDROSTATIC WORKING PRESSURE 150 PSI
• DESIGN-CERTIFIED BY CSA INTERNATIONAL
  • Certified at 300 PSI test pressure and 150 PSI working pressure. Listed according to ANSI Z21.10.1-CSA 4.1 standards governing storage tank-type water heaters.
