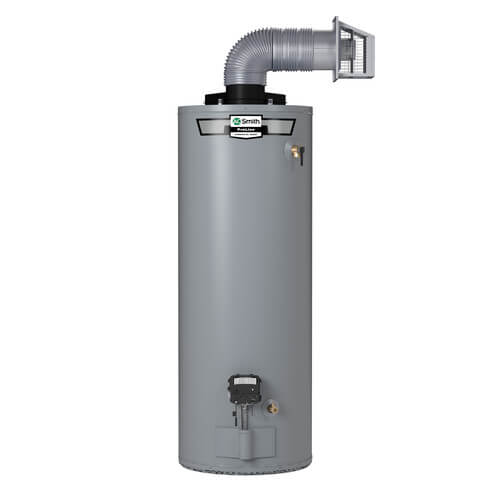

50 Gallon GDV-50 40,000 BTU ProLine Direct Vent Residential Gas Water Heater w/ Side Connections - Tall (NG)

Brand:
AO Smith
SKU:
GDV-50L
Rating:
(8)
Q&A:
(9)
50 Gallon GDV-50 40,000 BTU ProLine Direct Vent Residential Gas Water Heater w/ Side Connections - Tall (NG)
Magnifying glass
Hover image to zoom
$2,680.89 each
Backorder
Backorder
Get it Wed, Aug 5 - Fri, Sep 4

Lift Gate

This product weighs 200 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Fuel Type
Natural Gas
Product Highlight: Vent Type
Direct Vent
Product Highlight: Warranty
6 Year Tank/6 Year Parts Limited Warranty
Product Highlight: Capacity (Gallons)
48 Gallons
Product Highlight: Height (Inches)
76" Height
Product Highlight: Energy Star Rated
No

Description

The FVIR-compliant ProLine 50-Gallon Direct Vent Natural Gas Water Heater heater is to designed to draw air from outside the home, eliminating problems caused by insufficient indoor ventilation. The unit has horizontal air intake and venting on all models up to 80” from the outside wall with no electrical power needed. Featuring a 50-gallon (nominal) tank and a 40,000 BTU gas burner, the GDV-50L Direct Vent delivers a first hour rating of 77 gallons and a recovery rate of 43 gallons per hour. It carries a 6-year limited tank warranty, and meets Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard anode rod, Blue Diamond glass lining and DynaClean automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith's ProLine water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

Features:
  • Delivers 77-gallon first hour rating
  • 40,000 BTU input direct vent design delivers up to 0.66 Uniform Energy Factor
  • Patented eco-friendly Green Choice Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Push-button piezo ignitor makes lighting pilot fast & easy
  • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
  • Patented Blue Diamond glass tank lining protects against corrosion
  • DynaClean automatic cleaning system protects against sediment build-up
  • Stainless steel CoreGard anode rod protects against corrosion longer than ordinary anodes
  • Commercial-grade brass drain valve for durable and easy operation
  • 6-year limited tank and parts warranty
  • Specs

    Intended Household:

    3-4 Person

    Application:

    Plumbing

    Capacity (Gallons):

    48

    Energy Factor:

    0.62

    BTU Input:

    40000

    Energy Star Rated:

    No

    Fuel Type:

    Natural Gas

    Vent Size:

    4"

    5"

    6"

    3"

    Vent Type:

    Direct Vent

    Water Connection:

    3/4"

    ASME:

    No

    Max Pressure (PSI):

    150

    Gas Connection:

    1/2"

    1st Hour Delivery (Gallons):

    87

    Recovery 90°F Rise:

    45 GPH

    Max Altitude (Feet):

    7700

    Diameter (Inches):

    22-1/4"

    Height (Inches):

    76"

    Depth (Inches):

    25-1/4"

    Weight (lbs):

    185 lbs

    Warranty:

    6 Year Tank/6 Year Parts Limited

    Contact

    +
    Help Face

    Happy Independence Day!

    Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
    Call or text 888-757-4774
    Special Hours
    Closed Now
    MondayThursday
    8am7:45pm
    Friday
    9am7:45pm
    SaturdaySunday
    9am5:45pm


    Compare Similar Products

    Brand
    Intended Household
    Application
    Capacity (Gallons)
    Energy Factor
    BTU Input

    You May Also Need

    Product Reviews

    4.75 out of 8 reviews
    100% would recommend this product
    4.75
    out of 8 Reviews
    100% would recommend this product
    WRITE A REVIEW
    5 star
    75%
    4 star
    25%
    3 star
    0%
    2 star
    0%
    1 star
    0%
    WRITE A REVIEW
    Showing 1-8 of 8 reviews

    I would buy again

    Nice having a sealed burner water heater that will work even with no electric power. Seems like a simple working water heater and it works great
    Jack
    Denver
    2 years ago
    Verified Buyer Icon
    Verified Buyer
    Was this review helpful to you?

    Yes

    Good product
    perez
    Washington DC
    4 years ago
    Verified Buyer Icon
    Verified Buyer
    Was this review helpful to you?

    Great product and customer service

    Easy install, great customer service experience and delivery! Will definitely recommend to others.
    Shar
    Bristol, CT
    6 years ago
    Verified Buyer Icon
    Verified Buyer
    Was this review helpful to you?

    Great company and customer service

    Very good customer service and so far the water heater is wonderful
    Ed
    Bristol, CT
    6 years ago
    Was this review helpful to you?

    So far so good

    I bought this water heater to replace my old one 50 gallon direct-vent water heater. No complaints so far.
    Toby
    Fremont, CA
    10 years ago
    Verified Buyer Icon
    Verified Buyer
    Was this review helpful to you?

    flex duct gives added install flexibility

    So far so good. AO Smith has an excellent reputation and only time will tell how long this unit lasts. My previous heaters were over 20 years old. I like the flex duct design as it allows for more flexibility than the rigid vent of my previous unit. I was trying to match an existing hole and the dimensions of the water heaters have changed due to higher tank insulation standards. Having the flex duct meant not needing to cut another 7" hole in my wall. The piezo valve is nice and it shows you that it is running with a blinking led (no electricity required). This type of water heater is one of the few that can be vented directly through a wall and requires no electricity to run. If you have outages, these heaters are a must. Please be advised that this unit has a plastic air tube that is exterior to the tank and runs up the back. This makes it quite challenging to strap the tank per code to the wall as you must shim it around the plastic tube. That's the hardest part of the install IMHO is figuring out how to shim it away from the wall to leave a gap for the tube and still have it snug enough to pass code in earthquake country. Pay attention to the instructions. I read one review by a person who was concerned about heat from the exhaust duct. My guess is that s/he failed to add the restrictor plate which is necessary for shorter vents. I found the portion of the duct which has the O-rings to be very difficult to seat. I put all of my weight on it and still could not get it to slide far enough for the spring clip to lock in the groove on the collar. I noticed it had a very slight amount of grease. I had some high temp silicone brake grease that I applied to the mating surfaces and it made them go together much easier. I have two quibbles with the manufacturer. First, as this is among the most expensive tank models of this type it should carry their longer 10 year warranty and not the miserly 6 year. Second, the packing leaves no space between the thin sheet metal and the box. Any slight impact to the box and the heater will arrive looking like scratch and dent merchandise. If you make a quality product, and undoubtedly AO Smith does, why not provide comparable packaging?
    Linkysys
    Seattle, WA
    10 years ago
    Verified Buyer Icon
    Verified Buyer
    Was this review helpful to you?

    ProMax Direct Vent Natural gas Residential Water Heater

    Runs without electricity. So far seems very efficient.
    steve
    Arimo,Idaho
    11 years ago
    Verified Buyer Icon
    Verified Buyer
    Was this review helpful to you?

    Nice Unit - Delivered to Door

    I bought this unit to replace a State Industries direct vent that was leaking after 12 years. Reviews seemed to indicate a relatively short life for the State WH, so I decided to try the AO Smith DV50. Delivery Delivery was to my driveway and was easy, accurate (they were there when they said) and the unit was in excellent condition. Installation (done by me) was straightforward and the manual was well written and the illustrations good. I reused the State wall penetration since it was still in excellent condition and changing the wall penetration is time consuming and complex. The pipes matched perfectly and the unit operates fine. Lighting was straightforward - a note urging patience (up to 90 seconds to purge air from the gas pipe) was very helpful as it did take 55-60 seconds. The outer exhaust pipe got quite warm during initial heating run but no problems was seen. Unit has been in and operating for a week now with no problems. In 15-20 years I'll know whether or not the unit's longevity matches the other reviews. If it does, I'll add the fifth star.
    BoilerMakerBob
    Indianapolis
    12 years ago
    Verified Buyer Icon
    Verified Buyer
    Was this review helpful to you?

    Product Q&A

    9 Questions
    9 Questions
    ASK A QUESTION

    Q: does it have a pilot light burning all the time?

    Asked by sean 9 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- SupplyHouse Staff

    Yes, it does.

    Was this review helpful to you?

    Q: Can I duct it into my garage?

    Asked by schmuck1 10 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- SupplyHouse Staff

    No, the exhaust should be vented to the outside.

    Was this review helpful to you?

    Q: Will this unit operate at higher elevations without any modifications? We are at 8000'

    Asked by offgrid 10 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- Supplyhouse Staff

    When installed at elevations above 7,700 feet (2,347 meters), input rating should be reduced at the rate of 4 percent for each 1,000 feet (305 meters) above sea level which requires replacement of the burner orifice in accordance with "Natural Gas and Propane Installation Code" CAN/CSA-B149.1. Contact your local gas supplier for further information.

    Was this review helpful to you?

    Q: I am planing on replacing my current FDV-50 with this GDV-50. The vent run will be under 30" and over 17". According to the guide I need to use the vent restrictor. What is that and does it come with the unit?

    Asked by wheats 11 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- Supplyhouse Staff

    The restrictor setting is adjustable to accommodate all the different venting scenario's. The different positions are limits the amount of air flow into the unit for proper combustion to take place and allows for consultancy. And yes, it appears the restrictor plate is provided.

    Was this review helpful to you?

    Q: What is the height?

    Asked by 14 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- PexSupply Staff

    GDV-50 units measure 63-3/4" to the top of the water heater and 76" to the center of the vent termination. Please refer to page 2 of the manual linked below for full dimensional information. http://s3.pexsupply.com/manuals/1277918330238/33774_PROD_FILE.pdf

    Was this review helpful to you?

    Q: how long is the duct vent

    Asked by 14 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- PexSupply Staff

    The duct vent measures up to 80 inches from the outside wall.

    Was this review helpful to you?

    Q: How come I cannot get the temp regulated? When set to recommended setting I run out of hot water and when I set it up a notch its so hot at times it will burn your skin.

    Asked by Rosie 15 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- PexSupply Staff

    It sounds like you may need to install a tempering valve in the system to prevent scalding.

    Was this review helpful to you?

    Q: Does the heater include all ducting required?

    Asked by 16 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- PexSupply Staff

    Yes, the heater does include all required ducting.

    Was this review helpful to you?

    Q: Will this be sufficient for a radiant heat system?

    Asked by 16 years ago

    Add your answer

    * Required Field
    Verified Author and ReplyVerified Reply- PexSupply Staff

    Normally a boiler is used, but you can use AO Smith 50 Gallon ProMax Direct Vent Residential Water Heater for radiant heat.

    Was this review helpful to you?
