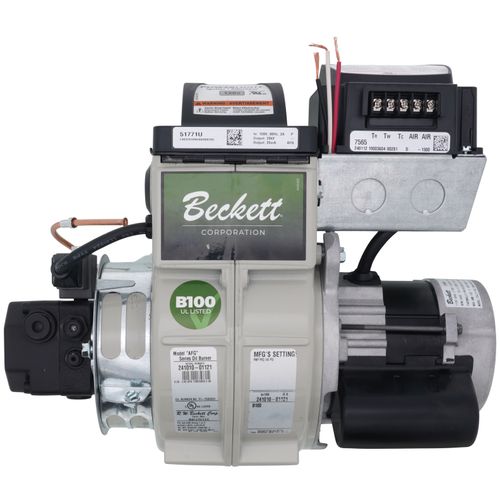

AFG B100 Compliant Residential Oil Burner
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$649.00 each
In Stock
Get 12 Wed, Jun 24
Order by today, receive Wednesday
MANUALS (4)
This item replaces: B3001, B2007
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Oil
3450 RPM
120v
5.8 Amps
Description
–
Note: LICENSED CONTRACTOR REQUIRED
This product must be installed by a qualified and licensed contractor using properly calibrated combustion test equipment. Failure to adhere to this requirement may result in significant property damage, serious personal injury, or death.
This product is an AFG Chassis w/ GeniSys Burner control, PSC Motor, Beckett Ignitor, and Single Stage Beckett CleanCut Pump.
Air Tubes (different lengths), Mounting Flanges, End Cones (Firing Rates),and Oil Nozzles are sold separately.
Please check the Manuals section to view the Air Tube Selection Chart.
Beckett AFG burners utilize technically advanced components to meet increased demand for improved burner performance and reliability in modern, high-efficiency appliances. These performance-enhancing features will help you meet today's toughest heating system challenges.
Specifications
- Capacity: 0.40 - 3.00 GPH - 56,000 - 420,000 btu/hr input
- Fuels: No.1 or No.2 heating oil (ASTM D396) only
- Fuel Unit: Single-stage Beckett CleanCut
- B100 Complaint
Electrical Characteristics
- Power Supply: 120V AC, 60 Hz, single phase
- Primary Control: GeniSys 7565 w/15 sec pre-, 2 min post-purge
- Motor: 1/7 HP, 3450 rpm PSC type
- Igniter: Beckett PowerLight Solid state
- Operating Load: 5.8 Amps Max.
Dimensions
- Height: 12-1/2”
- Width: 15”
- Depth: 9-1/4”
Specs
–
| Fuel Type: | Oil |
|---|---|
| Pre-Purge Time: | 15 Seconds |
| RPM: | 3450 |
| Voltage: | 120v |
| Amperage: | 5.8 |
