L300 has been discontinued
Discontinued January 4, 2024
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces: L300MG, AK280LS, QT300, AK300LS
'/%3E%3C/svg%3E){kind=small}
Suggested Alternative:

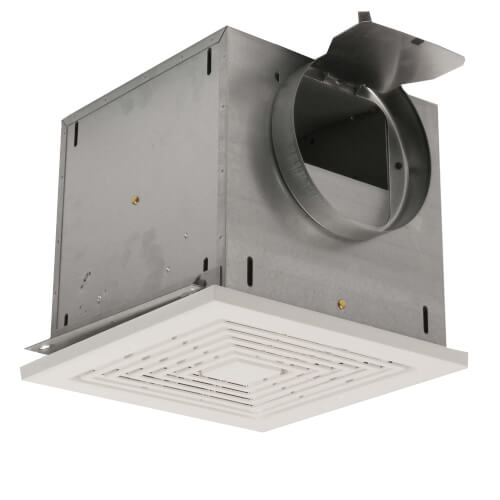

L300 Ceiling Mount Ventilation Fan, 8" Round Duct (308 CFM)
Product Highlights
–
308 CFM
8"
2.9 Sones
12-1/4" x 12-1/4" x 11-3/4"
14" x 14"
1 Year Warranty
Description
–
**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Specifications document for vertical ducting data.
Features:
Features:
- 308 CFM, 2.9 Sones (AMCA), horizontal ducting
- Can be ducted horizontally or vertically (313 CFM, 3.0 Sones with vertical ducting). In-line ducting available with separate adapter
- 8" round duct connector
- Low profile, white polymer grille
- Single, impact-resistant centrifugal blower wheel
- 20 gauge galvanized steel housing
- UL Listed for use over bathtubs and showers when connected to a GFCI branch circuit
- Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
- Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"
- Grille Dimension: 14" x 14"
Specs
–
| Product Type: | Ceiling Mount Ventilation Fan w/ Round Duct |
|---|---|
| Duct Size: | 8" |
| Voltage: | 120v |
| Air Flow Capacity (CFM): | 308 |
| Hertz: | 60 |
| Sone: | 2.9 |
| Housing Dimension: | 12-1/4" x 12-1/4" x 11-3/4" |
| Amperage: | 2.6 |
| Grille Dimension: | 14" x 14" |
| Ducting: | Horizontal Vertical |
| Wattage: | 212 |
| Grille Finish: | White |
| Nominal RPM: | 905 |
| Warranty: | 1 Year |
| Grille Material: | Polymeric |
