$152.00 each
In Stock
Get 121 Mon, Jun 22
Order by today, receive Monday
MANUALS (1)
This item replaces: 9722-CENTURY, MOT13265
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V, 208V, 208/230V
1075 RPM
Reversible
1/8, 1/10, 1/12 HP
Extended Studs
0.9 Amps

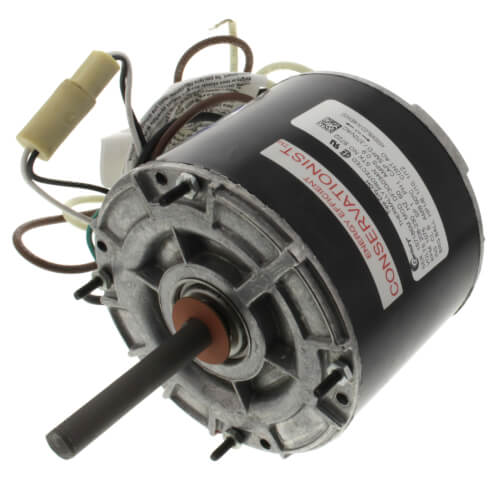

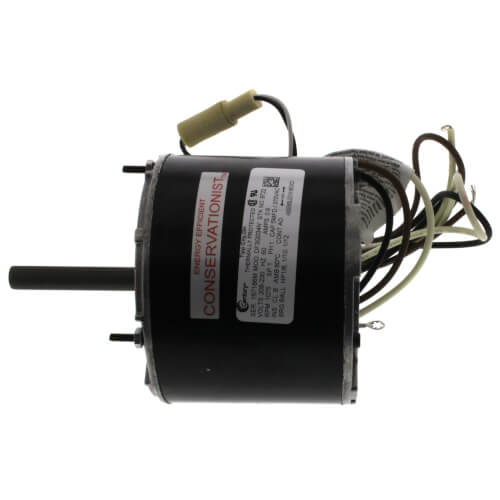

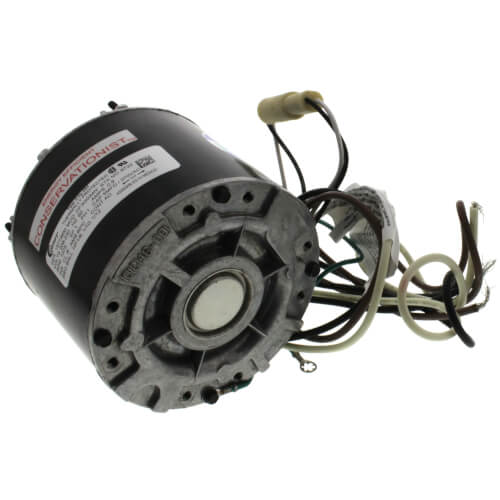

Description
–
Features:
- Multi-Mounting System
- Single speed multi-horsepower replacement motor uses one simple connection
- Energy-efficient PSC design
- Easy-to-read connection diagram attached to white lead wire
- Water-resistant reversing plug
- Double sealed ball bearings for dependable long life
- Rubber shaft slinger keeps water and dirt out of motor
- Water-resistant rubber grommet at lead opening
- 60°C max ambient
- Class B insulation
- Lead length 36"
- 60 Hertz
- Totally enclosed
- Continuous duty, air over
- All-angle mount
- UL and CSA recognized
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/8 1/10 1/12 |
| Voltage: | 230V 208V 208/230V |
| Bearings: | Ball |
| Duty: | Air Over |
| RPM: | 1075 |
| Mount: | Extended Studs |
| Poles: | 6 |
| Rotation: | Reversible |
| Enclosure Type: | Totally Enclosed |
| Speeds: | 1 |
| Hertz: | 60 |
| Amperage: | 0.9 |
| Frame: | 42 |
| Phase: | 1 |
| Insulation Class: | B |
| Overload Protection: | Automatic |
| Diameter (Inches): | 5" |
| Max Ambient Temp (°F): | 140°F |
| Motor Orientation: | Any |
