Product Highlights
–
0.72
167 CFM
5 Year Warranty
4"
115V
2900 RPM
Description
–
CAUTION: For General Ventilation Use Only.
Do Not Use To Exhaust Radon, Hazardous Or
Explosive Materials And Vapors

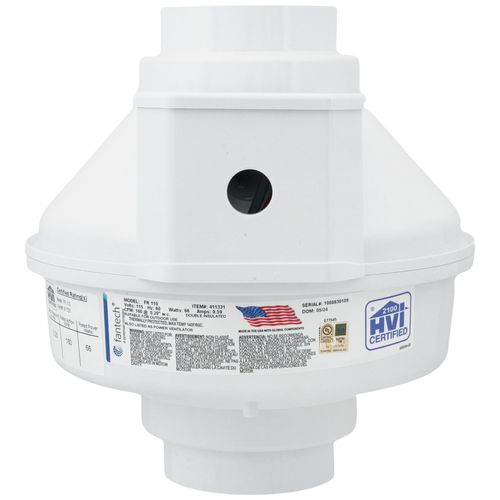

Fantech's versatile FR Series Inline Fans provide the ideal answer for a variety of air movement problems in residential and commercial applications. The fans feature a plastic housing constructed of UL-recognized, UV protected thermoplastic resin. This tough protected shell allows the fan to be mounted in outdoor and wet locations. FR fans feature external rotor motors that have proven dependable year after year. Fan is fully caulked to prevent moisture from entering the housing.
Features:
Fantech's versatile FR Series Inline Fans provide the ideal answer for a variety of air movement problems in residential and commercial applications. The fans feature a plastic housing constructed of UL-recognized, UV protected thermoplastic resin. This tough protected shell allows the fan to be mounted in outdoor and wet locations. FR fans feature external rotor motors that have proven dependable year after year. Fan is fully caulked to prevent moisture from entering the housing.
Features:
- Prewired and supplied w/ a mounting bracket for easy installation
- UL Listed; CSA Certified
- Approved for residential and commercial applications and for wet locations
- Suitable for airstream temperatures up to 140°F
- Easy connection using external wiring box with waterproof gasket
- 100% speed controllable
- 5-Year factory warranty
Specs
–
| Duct Size: | 4" |
|---|---|
| Voltage: | 115V |
| RPM: | 2900 |
| Rated Watts: | 80 |
| Wattage Range: | 62-80 |
| Max. Amps: | 0.72 |
| Housing Material: | Molded Housing |
| Warranty: | 5 Year |
| Energy Star Rated: | Yes |
| Air Flow Capacity (CFM): | 167 |
| 0" Ps: | 167 CFM |
| 0.2" Ps: | 150 CFM |
| 0.4" Ps: | 133 CFM |
| 0.6" Ps: | 113 CFM |
| 0.8" Ps: | 88 CFM |
| 1.0" Ps: | 63 CFM |
| 1.5" Ps: | 4 CFM |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Duct Size
Voltage
RPM
Rated Watts
Max. Amps
CURRENT ITEM
4"
115V
2900
80
0.72
You May Also Need
2 Replacement Parts
Mounting Bracket, 497750
SKU: 497750
FantechCapacitor for PB270H-2
SKU: 411222
Fantech
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.88 out of 52 reviews
98% would recommend this product
5 star
92%
4 star
6%
3 star
0%
2 star
2%
1 star
0%
Customer Images
Most Liked Positive Review
Love Fantech
This is our 2nd vent fan from Fantech. Both have performed flawlessly. It's not silent, in fact it's quite loud, but this is probably my own fault for installing the fan too close to the bathroom venting location. In our case it's about as loud as any other standard bathroom vent fan. The instructions say to install the fan farther away from the room being vented but I couldn't do this because of space limitations. I also don't like the way you mount the fan to the mounting bracket. You have to drill the mounting screws directly into the plastic fan housing and to me this seems a bit dicey. Would be better if they included a more secure way to attach the fan to the mounting bracket. Anyways, not complaining... just mentioning this as a possible improvement to an already great product. Highly recommended!
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
runs like a lawn mower
Very disappointed. The noisy fan I removed ran at 58 decibels. This new one: 67 decibels. Way noisier than I was told. I now have to engineer a way to relocate this fan and re-duct it to an area much further away from the source: a ceiling bath fan grate.
Showing 1-10 of 52 reviews
Yes
Quick shipping
Great price
Steve
Boston MA
1 years ago
Verified Buyer
Was this review helpful to you?
Great inventory, easy order, quick delivery.
Supply House is my go to resource when I need equipment and supplies.
They helped me finish my work on time.
Jim K
Portland ME
1 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
Working great as a continuous duty bath fan. Quiet and remote. Moves plenty of air.
Brian
Indianapolis, IN
1 years ago
Verified Buyer
Was this review helpful to you?
great item does what i needed it to do
item arrived quickly and was exactly what i needed . I would recommend this product
Bob
new hampshire
1 years ago
Verified Buyer
Was this review helpful to you?
runs like a lawn mower
Very disappointed. The noisy fan I removed ran at 58 decibels. This new one: 67 decibels. Way noisier than I was told. I now have to engineer a way to relocate this fan and re-duct it to an area much further away from the source: a ceiling bath fan grate.
Bob
Austin, TX
2 years ago
Verified Buyer
Was this review helpful to you?
These guys are the best. Do not hesitate to use their servic
I had some warranty work and they were quick to respond. I'm all squared away now. Couldn't be happier.
Dave
Gaithersburg Md.
2 years ago
Verified Buyer
Was this review helpful to you?
This product is just the right unit for my purposes
radon fan works great
Peter
Santa Fe NM
2 years ago
Verified Buyer
Was this review helpful to you?
Quiet, simple install.
Needed this inline fan for a tricky install where there wasn't room inside a bathroom ceiling for a standard fan. This fan is quiet, and installation was super simple. Great product for the price.
FanMan
NY
2 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again.
Just what we needed, works well.
Nancy Lee
MA
3 years ago
Verified Buyer
Was this review helpful to you?
Heat or cold these fans work!
I have installed a variety of these axial fans in attics with no call-backs over the past ten years. They run quietly & are suitable for remote locations without re-lubrication.
Bob the Builder
Boston MA area
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Is this fan adequate for Radon Abatement?
Asked by David 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, however a better alternative designed specifically for radon abatement is the HP190 fan unit. We carry this unit here: http://www.supplyhouse.com/Fantech-HP190-HP-Series-Inline-Radon-Fan-4-5-Duct-157-CFM
Was this review helpful to you?
Q: looking for a fan to install in crawl space and exhaust outside. Will 4" pvc attach to this fan
Asked by Bruce 13 years ago
Add your answer
-
Yes .there should be a rubber boot suplied
Was this review helpful to you?
-
Yes, simply use a 4" PVC rubber coupling adapter with hose clamps. My fan has a rubber reducer 4" to 3" PVC since I went 3" PVC pipe. I have a pic if interested.
Was this review helpful to you?
-
Yes...while iy u not fit directly it will at the very least fit with a rubbed clamp joint often used to attach plastic pipe to iron. Good chance it will fit directly.
Was this review helpful to you?
-
Yes. We attached one to 4" PVC on both ends. We used scews instead of glue so we could take it apart to service screens we put in the pipe.
Was this review helpful to you?
