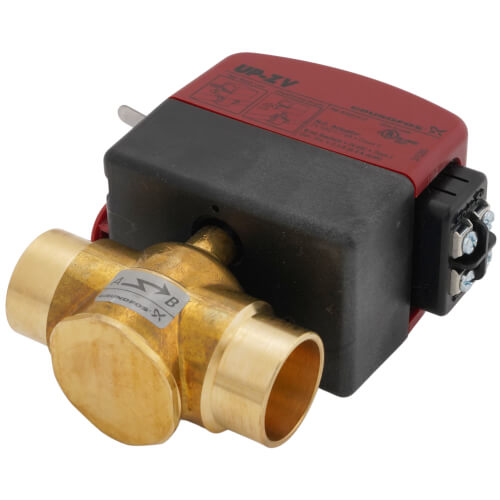

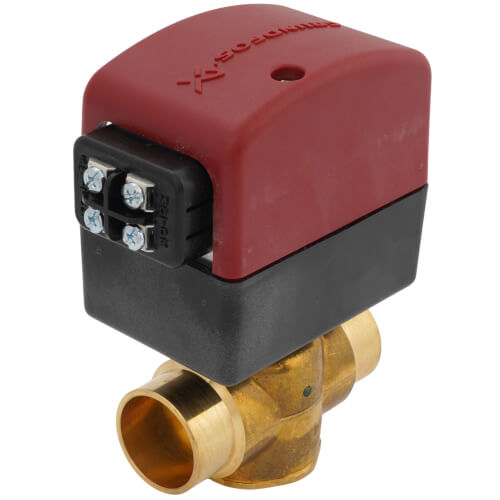

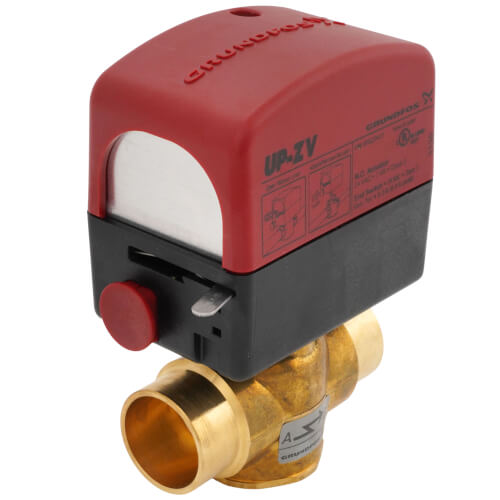

1" Sweat UP-ZV 2-Way, Normally Closed Zone Valve with End Switch
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$194.15 each
In Stock
Get 5 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Sweat Connection
7.5 Cv
1"
24V
Normally Closed
Description
–
The Grundfos UP Zone Valve incorporates the latest in robust motor and gearing technology, ensuring long life and quiet operation.
Features:
Features:
- In-line removable actuator for ease of installation and service
- Silent Close-Off Technology
- Compact / Economical design
- Sychronous Hysteresis Motor: 7VA, 5W
- Valve position indicator and Manual Open/Close lever
- Easy Push Actuator Removal Button
- Sealed End Switch: Normally closed
- Enlarged Geared Transmission/Coil Spring: Delivers 20 PSI Close Off @ 7.5 Cv
- Stainless Steel Valve Stem: Closed and Open System Rated
- Durable Forged Brass Body: 300 PSI Rated
- High temp. EPDM Paddle and O-rings: 32°F to 240°F Rated and 50% Glycol Rated
- Convenient Clean Out Cap
Specs
–
| Type: | Zone Valve |
|---|---|
| Connection Type: | Sweat |
| Size: | 1" |
| Voltage: | 24V |
| Position: | Normally Closed |
| End Switch: | Yes |
| Min Fluid Temp: | 33°F |
| Max Fluid Temp: | 240°F |
| Flow Capacity (Cv): | 7.5 |
| Body Pattern: | 2-Way |
