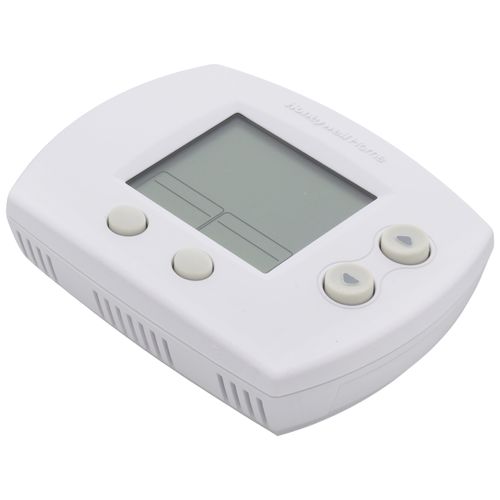

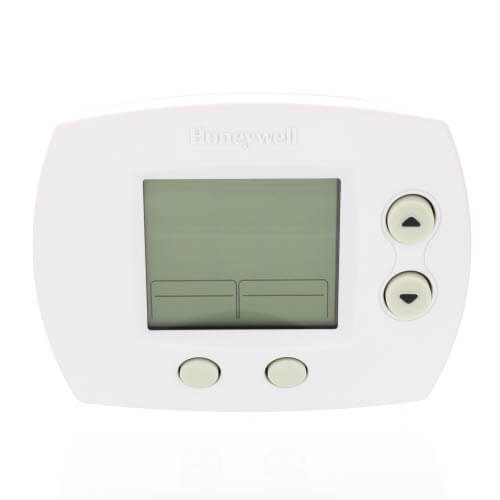

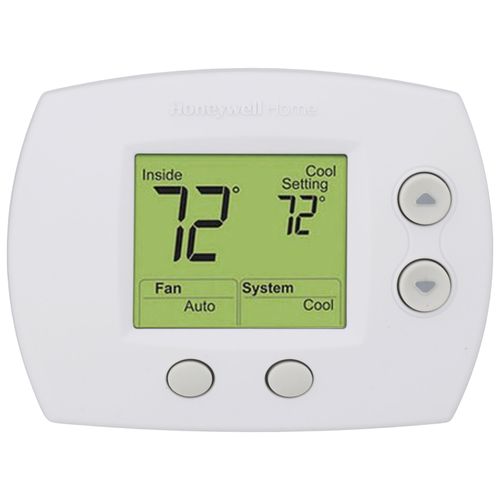

FocusPro Non-Programmable, 1H/1C, Large Display Thermostat, TH5110D1022
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (5)
Product Highlights
Description
Large Screen Premier White Heating & Cooling Thermostat with R, Rc, C, W (O/B), Y, G terminals. The FocusPRO non-programmable digital thermostat provides electronic control of 24 Vac conventional and heat pump systems or 750 mV heating systems.
Features
- Non-programmable digital thermostat.
- Large, clear, backlit display, easy to read in various lighting conditions.
- Display size options - available in large screen or standard.
- Precise comfort control (+/- 1ªF) maintains consistent comfort to the highest level of accuracy.
- Easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat.
- 5-year limited warranty.
Specs
| Amperage: | 1 |
|---|---|
| Application: | Heat Pump Single-Stage (Heat/Cool) |
| Stages: | 1 Heat/1 Cool |
| Programmability: | Non-Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Large Display Fan Control Auto Changeover |
| Power Method: | Hardwired Battery |
| Changeover: | Auto Manual |
| Temperature Range (F): | 40°F - 99°F |
| Max Temp Differential: | 1°F |
| Operating Humidity: | 5 to 90% RH, non-condensing |
| Wattage: | 10 to 30 |
| Wiring: | Rc C G Y W(O/B) |
| Frequency: | 60 Hz 50 Hz |
| Color: | Premier White |
| Height: | 3-7/16" |
| Width (Inches): | 4-1/2" |
| Depth (Inches): | 1-5/16" |
| Voltage: | 24V 750mV Low voltage |
Questions?
Compare Similar Products
Single-Stage (Heat/Cool)
Battery
You May Also Need
Product Reviews
I would buy this again and again
PERFECT REPLACEMENT THERMOSTAT
I would buy this again.
Best thermostat!
Great thermostat
When needed, yes.
yes
I would buy this again!!
Perfect replacement for old thermostat
Great product
Product Q&A
11 QuestionsQ: How do I get the light on the display
Asked by Schmitter 14 years ago
Add your answer
It only lights when you push the up and down arrows to increase or decrease the temperature, it does not stay lit all the time.
If you push one of the arrow keys on the right the display light will turn on.
Anytime you press one of the buttons on it , the display should light up, if it doesn't, the unit may be defective.....wally
Q: How do you change the battery
Asked by kid 14 years ago
Add your answer
To change the battery there is a push on the top right of the thermostat the it will come up and to the right. It does say the words push on the battery tray.
Press and pull flip out door on right side to replace batteries.
Q: I'm getting a dual fuel system. Will this work on it. Thanks
Asked by Shaggy 14 years ago
Add your answer
Verified Reply- PexSupply StaffWhether it is a dual fuel heatpump or a dual fuel furnace, a TH5110D will not work. You can use a TH5220D for this. If you have a dual fuel heatpump and want options for more control over it you can use the TH9421C or Prestige models. They have options to cater to dual fuel systems.
Q: My present thermostat is an old (42 yrs) Honeywell, and want to replace it with a anon-programmable unit. My present thermostat only has 2 wires; red and white. Would this unit hook up the same ?? R. Kelch
Asked by Ralph 14 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the replacement for this thermostat sounds like it may be a low voltage thermostat for heating only system, given the age of the application. If you could verify the voltage requirements for the system and if it is a heating only application then they can make an accurate suggestion for replacement. They hesitate to advise based on colors of wire. An 18 gauge wire would work for the application regardless of what color is wrapped around the wires. If you could advise on this they would be glad to make a suggestion. The TH5110D1022 may work but you should contact the manufacturer to confirm.
Q: to turn the temperature up do i push the first button at the top on the right of the thermostat? thank you
Asked by casey74 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, that is correct.
Q: Can this thermostat be used for air conditioning
Asked by Bill 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, this thermostat can accommodate one stage of cooling.
Can be used with heating or air conditioning systems.
Q: terminals r g w y and rc. g w y are ok. where does the r go, on r or rc. when r is on r the ac does not work. when I put the old t/s on it has a jumper between r and rc, a/c works fine. do I need a jumper on this t/s or is it pre wired. still not using my new honeywell t/s
Asked by babe 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to page 3 in the following Installation Guide: http://s3.pexsupply.com/manuals/1249544874360/Honeywell_TH5110D1022_Install_Guide.pdf
Q: i have a TH5220D1029 -0936 IS THERE ANY INSTRUCTIONS ON HOW TO WIRE ONE UP?
Asked by JAMES 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the Installation Guide below. http://s3.pexsupply.com/manuals/1249544874360/Honeywell_TH5220D1003_Install_Guide.pdf
Q: I own a house boat with a heat pump system. I had a service tech come out because i was having trouble with thermostat. He concluded that it was the thermostat that was causing my problem. He suggested model number TH8320U1008. I don't need a programable thermostat. Will this model work on my unit? thanks
Asked by popeye 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis model works with heat pump systems, but keep in mind that it is only 1H/1C.
Q: If thermostat is hard wired, what does the battery do?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffBatteries are optional if the thermostat is wired to run on AC power when installed. They provide backup power to the thermostat.
