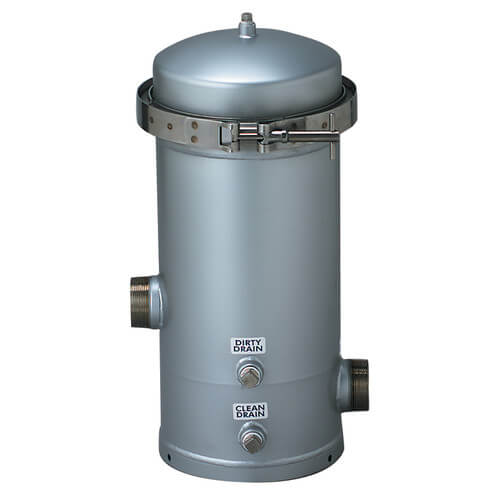

ST-BC-4, 2" Heavy-Duty Stainless Steel Housing (28 GPM)

ST-BC-4, 2" Heavy-Duty Stainless Steel Housing (28 GPM)

ST-BC Series Stainless Steel Filter Housings offer a variety of solutions for your large-scale, heavy duty filtration needs. Simple to install and maintain, these housings are ideal for schools, restaurants, farms, institutions and industrial use. Holding from 4 to 20 cartridges, ST-BC Series Housings provide flow rates from 28-125 gpm (106-473 Lpm).

Housings are constructed of 304 stainless steel with a gray-silver epoxy finish. They include drains on both the “clean” and “dirty” sides of the sump.

ST-BC Series Housings are compatible with a complete range of filter cartridges, adding to their versatility.

Features:

• Heavy duty units for large scale commercial/industrial applications
• Brushed 304 stainless steel construction with a gray-silver epoxy finish
• Ideal for high-temperature applications
• Accepts complete range of standard double open end (DOE) cartridges

Specifications:

• Housing – Brushed 304 stainless steel
• Exterior finish – Epoxy
• Temperature Rating– 40-300ºF (4.4-149ºC)
• Maximum Pressure – 125 psi (8.6 bar)
• Pipe Size – 2" NPT
• Sealing Gasket – Buna-N

Note: Image may not be actual representation of item.

Replacement Filter Cartridge Options:

• EPM-10, Modified Epsilon Carbon Block Drinking Water Filter Cartridge (10 Microns)
• PCF1-10MB, 10" Deionization Specialty Filter Cartridge
• CFB-PB10, Modified Molded Carbon Block Drinking Water Filter Cartridge (0.5 Microns)
• R30-478, Pleated Polyester Fibers Sediment Filter Cartridge (30 Microns)
• W5P, Spun Polypropylene Fibers Sediment Filter Cartridge - 2 Pack (5 Microns)
• W25P, Spun Polypropylene Fibers Sediment Filter Cartridge, 25 Microns (2 Pack)
• WPD-110, Polydepth Thermally Bonded Polypropylene Sediment Filter Cartridge (5 Microns)
• WPD-25, Polydepth Thermally Bonded Polypropylene Sediment Filter Cartridge, 25 Microns (2 Pack)
• W30PE, Pleated Polyester Fibers Sediment Filter Cartridge, 2-Pack (30 Microns)
• W50PE, Pleated Polyester Fibers Sediment Filter Cartridge, 50 Microns (2 Pack)
• WGC478, Granular-Activated Carbon Drinking Water Filter Cartridge
• W.5CB, Acid-Washed Bituminous Carbon Block Drinking Water Filter Cartridge (0.5 Microns)
