156026-02 has been discontinued
Discontinued November 20, 2024
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
125 MAX PSI
2"
2"
NPT Connection
29"
10" Diameter
Description
–

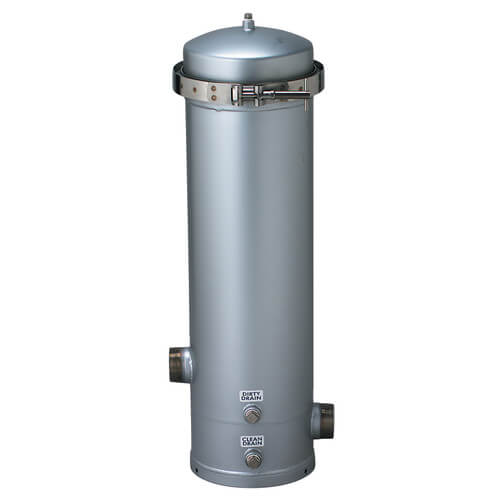

ST-BC-8, 2" Heavy-Duty Stainless Steel Housing (56 GPM)
ST-BC Series Stainless Steel Filter Housings offer a variety of solutions for your large-scale, heavy duty filtration needs. Simple to install and maintain, these housings are ideal for schools, restaurants, farms, institutions and industrial use. Holding from 4 to 20 cartridges, ST-BC Series Housings provide flow rates from 28-125 gpm (106-473 Lpm).
Housings are constructed of 304 stainless steel with a gray-silver epoxy finish. They include drains on both the “clean” and “dirty” sides of the sump.
ST-BC Series Housings are compatible with a complete range of filter cartridges, adding to their versatility.
Features:
Specifications:
Note: Image may not be actual representation of item.
Replacement Filter Cartridge Options:
ST-BC Series Stainless Steel Filter Housings offer a variety of solutions for your large-scale, heavy duty filtration needs. Simple to install and maintain, these housings are ideal for schools, restaurants, farms, institutions and industrial use. Holding from 4 to 20 cartridges, ST-BC Series Housings provide flow rates from 28-125 gpm (106-473 Lpm).
Housings are constructed of 304 stainless steel with a gray-silver epoxy finish. They include drains on both the “clean” and “dirty” sides of the sump.
ST-BC Series Housings are compatible with a complete range of filter cartridges, adding to their versatility.
Features:
- Heavy duty units for large scale commercial/industrial applications
- Brushed 304 stainless steel construction with a gray-silver epoxy finish
- Ideal for high-temperature applications
- Accepts complete range of standard double open end (DOE) cartridges
Specifications:
- Housing – Brushed 304 stainless steel
- Exterior finish – Epoxy
- Temperature Rating– 40-300ºF (4.4-149ºC)
- Maximum Pressure – 125 psi (8.6 bar)
- Pipe Size – 2" NPT
- Sealing Gasket – Buna-N
Note: Image may not be actual representation of item.
Replacement Filter Cartridge Options:
- EPM-10, Modified Epsilon Carbon Block Drinking Water Filter Cartridge (10 Microns)
- PCF1-10MB, 10" Deionization Specialty Filter Cartridge
- CFB-PB10, Modified Molded Carbon Block Drinking Water Filter Cartridge (0.5 Microns)
- R30-478, Pleated Polyester Fibers Sediment Filter Cartridge (30 Microns)
- W5P, Spun Polypropylene Fibers Sediment Filter Cartridge - 2 Pack (5 Microns)
- W25P, Spun Polypropylene Fibers Sediment Filter Cartridge, 25 Microns (2 Pack)
- WPD-110, Polydepth Thermally Bonded Polypropylene Sediment Filter Cartridge (5 Microns)
- WPD-25, Polydepth Thermally Bonded Polypropylene Sediment Filter Cartridge, 25 Microns (2 Pack)
- W30PE, Pleated Polyester Fibers Sediment Filter Cartridge, 2-Pack (30 Microns)
- W50PE, Pleated Polyester Fibers Sediment Filter Cartridge, 50 Microns (2 Pack)
- WGC478, Granular-Activated Carbon Drinking Water Filter Cartridge
- W.5CB, Acid-Washed Bituminous Carbon Block Drinking Water Filter Cartridge (0.5 Microns)
Specs
–
| Product Type: | Filter Housing |
|---|---|
| Type: | High Temperature Heavy-Duty |
| Application: | Commercial |
| Max Water Temp (°F): | 300°F |
| Flow Rate (GPM): | 56 |
| Max Pressure (PSI): | 125 |
| Outlet Size: | 2" |
| Inlet Size: | 2" |
| Connection Type: | NPT |
| Height: | 29" |
| Diameter (Inches): | 10" |
| Housing Color: | Stainless Steel |
