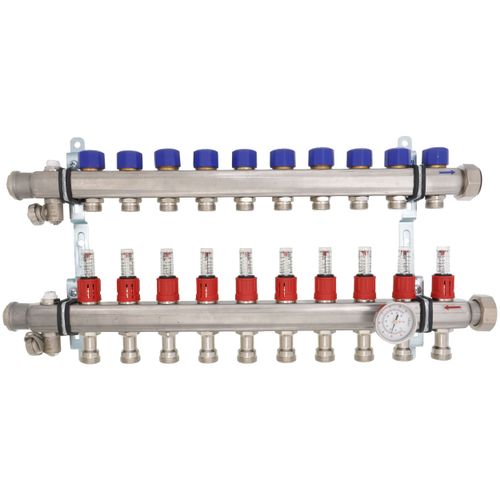

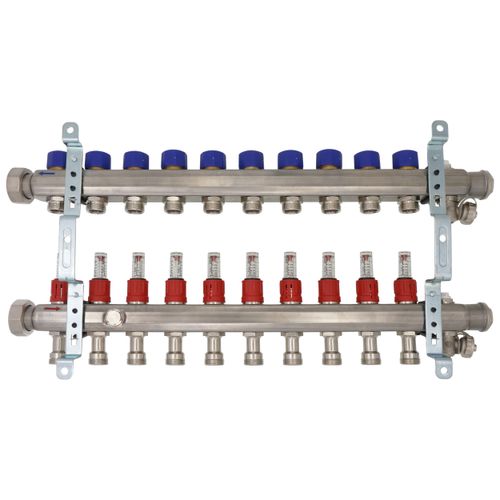

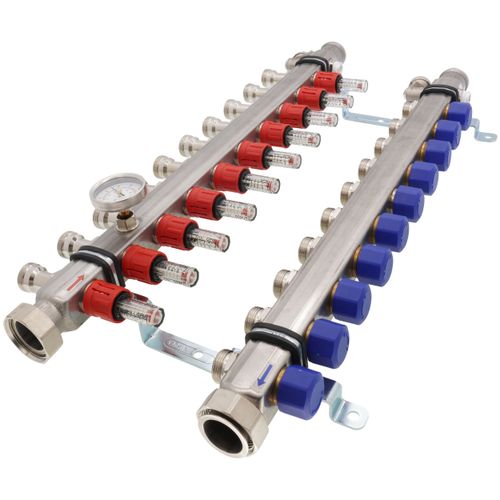

Stainless manifold is to be used in closed loop hydronic heating, cooling and snow melting systems. These
preassembled 1-1/4" diameter stainless supply and return manifolds come attached to two 6-5/8" spacing brackets
for compact remote mounting. This stainless manifold provides shut off and balancing valves with flow meters
for each circuit. Each flow meter/balancing valve allows graduated flow setting up to 2 gpm, maximum 18 gpm
per manifold. The air bleeder and purge valves are connected and factory tested. 1-1/4" Union connections, 1" NPT removable end caps. SVC Circuit connection fittings are sold separately.
This manifold requires (20) Loop Fitting Assemblies:
15070: 24 VACPowerhead for Stainless Manifold, 2-Wire Powerhead part number 15070 is a two position actuator which mounts on the return valve of the stainless manifold. A 24 V signal actuates the head to open the valve. The position of the valve is normally closed.
15069: 24 VAC Powerhead for Stainless Manifold, 4-Wire 4-wire two position actuator which mounts on the return valve of the stainless manifold. A 24 VAC signal actuates the head to open the valve. The position of the valve is normally closed. Upon opening the valve, the integral SPST contacts close. Typical applications include circulator control when used with Viega zone control 18060 or 18062, boiler heat call (T-T) or control of auxiliary devices requiring end-switch contact closure.
15068: 24 VAC Powerhead (0-10 VDC control) The Viega 0-10V powerhead is a thermo-electric powerhead that mounts on the return valve of a Viega 1-1/4" stainless manifold. A 24-volt signal powers the unit
open while controlled by a 0-10V DC signal, usually from either a thermostat or a central DDC building management system.
Note: Image may not be actual representation of item.
