0386474 has been discontinued
Discontinued May 14, 2026
This product was discontinued by the manufacturer.
Direct Replacement:
1/2" B9-11TM3 (Combination 1156F - 9D (Press x Press)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
1/2"
Bronze
25 MAX PSI
Press x Press Connection
10 PSI
212°F Max Temp
Description
–
Note: Do not use this item for any installation or repair of potable water applications. This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.

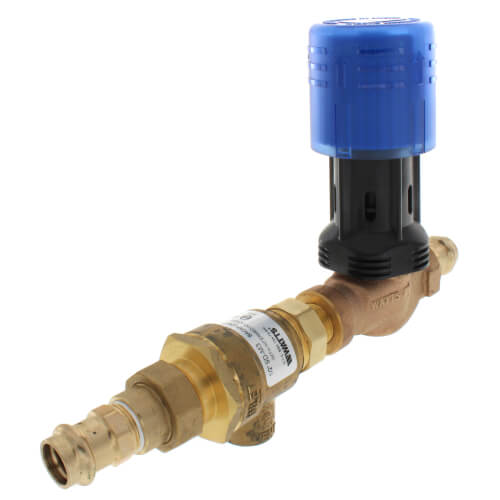

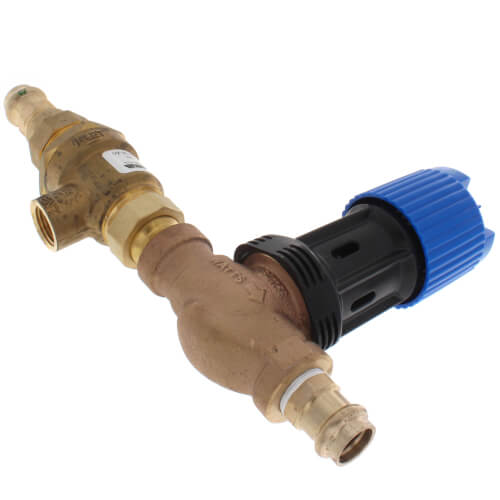

Series 911 combination fill valve and backflow preventer consists of a Model 9D backflow preventer and Model 1156F feed water pressure regulator in one pre-assembled unit. This valve is designed for use on boiler feed lines to provide make-up water to the boiler and prevent backflow when supply pressure fails below system pressure.
Specifications:
Features:
Series 911 combination fill valve and backflow preventer consists of a Model 9D backflow preventer and Model 1156F feed water pressure regulator in one pre-assembled unit. This valve is designed for use on boiler feed lines to provide make-up water to the boiler and prevent backflow when supply pressure fails below system pressure.
Specifications:
- A combination fill valve and backflow preventer shall be installed on the boiler feed line to provide make-up water to the boiler.
- The valve shall contain a Watts Regulator Model 9D backflow preventer and Model 1156 feed water pressure regulator.
- The combination fill valve and backflow preventer shall be a Watts Regulator Company Series 911.
Features:
- Pre-assembled for ease of installation
- Easy service accessibility
- High capacity fill valve for quick system filling and purging
Specs
–
| Size: | 1/2" |
|---|---|
| Connection Type: | Press x Press |
| Pressure Range: | 10 to 25 psi |
| Min Pressure (PSI): | 10 |
| Max Pressure (PSI): | 25 |
| Material: | Bronze |
| Max Temp (F): | 212°F |
| Application: | Heating |
| Thread Size: | 1/2" |
| Max Inlet Pressure: | 100 PSI |
| Pressure Set Point: | Factory Set at 15 psi |
| Inlet Type: | NPT |
| Outlet Type: | NPT |
| Width: | 8-1/2" |
| Height: | 5-1/4" |
| Weight (lbs): | 4.2 lbs |
