1/2" Boiler Feed Combination (NPT or Sweat)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$261.30 each
In Stock
Get 10 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
Brass
150 MAX PSI
NPT x Sweat, C x C, NPT x NPT, Sweat x NPT Connection
30 PSI
140°F Max Temp
Description
–
Applications:

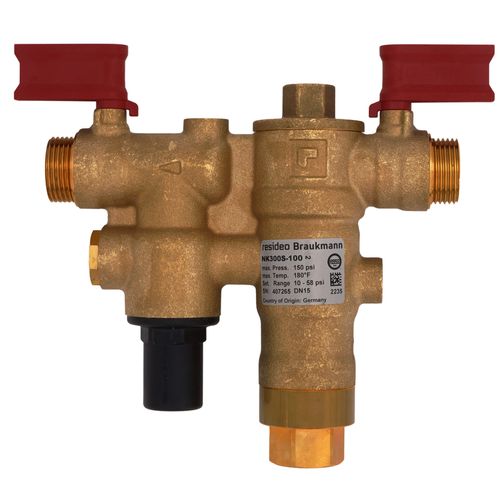

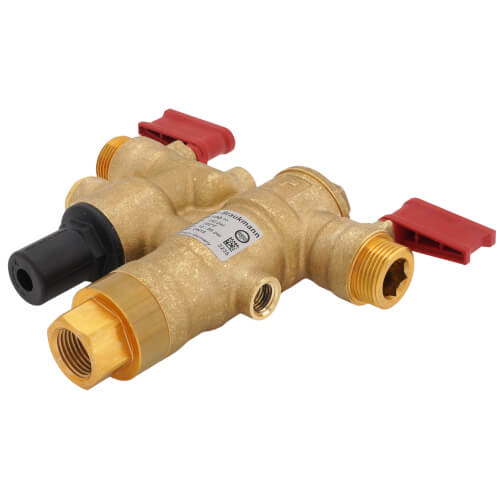

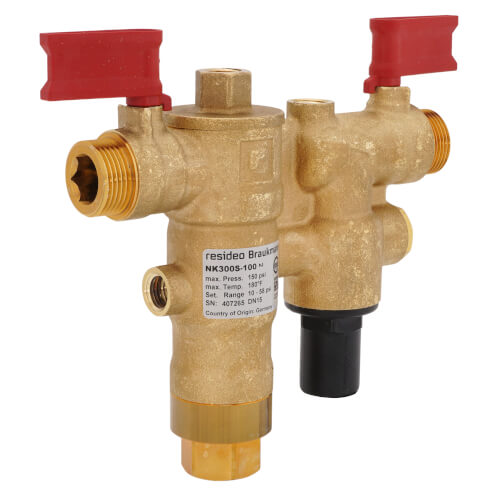

The Honeywell NK300S Boiler Feed Combination serves as a boiler fill valve used in closed loop heating systems. The NK300S is a (re)filling combination valve that contains an integrated pressure reducing valve, strainer, double check backflow preventer with air vent (to protect potable water supply against back flow of heating water into supply pipe), two shut-off ball valves, pressure gauge, and conveniently located test ports for easy inspections and check out.
Specifications:
The Honeywell NK300S Boiler Feed Combination serves as a boiler fill valve used in closed loop heating systems. The NK300S is a (re)filling combination valve that contains an integrated pressure reducing valve, strainer, double check backflow preventer with air vent (to protect potable water supply against back flow of heating water into supply pipe), two shut-off ball valves, pressure gauge, and conveniently located test ports for easy inspections and check out.
Specifications:
- Model: NK300S BOILER FEED COMBINATION
- Model Numbers: NK300S-100 (includes sweat and threaded connections)
- Medium: Water
- Regulator Mechanism: Fiber-reinforced EPDM diaphragm
- Filter Mechanism: Stainless steel fine filter mesh
- Inlet Pressure (Maximum): 150 psi (10.3 bar)
- Inlet Pressure (Min): 30 psi (2.0 bar)
- Outlet Pressure Range: 10 psi - 58 psi (0.7 bar - 4.0bar)
- Outlet Pressure: Factory set at 15 psi (1 bar)
- Pressure setting tolerance: ± 4 psi.
- Differential: 14.5 psi minimum (inlet to outlet)
- Fluid Temperature (Maximum): 180°F (82°C) according
- ASSE 1081
- Ambient Temperature Range: 33°F to 140°F (1°C to 60°C).
- Pressure Gauge: 0-60 psi @ max temp 140°F (60°C)
- Connection size: 1/2" NPT or sweat
- Connection size discharge: 1/4" NPT
- Connection size test ports: 1/4" NPT
- Installation position: horizontal pipework with discharge connection directed downwards
- Max. flow rate: 16 gpm (60 l/min @ 22 psi (1.5 bar) Approvals: ASSE 1081 Listed
Specs
–
| Size: | 1/2" |
|---|---|
| Max Pressure (PSI): | 150 |
| Min Pressure (PSI): | 30 |
| Connection Type: | NPT x Sweat C x C NPT x NPT Sweat x NPT |
| Material: | Brass |
| Max Temp (F): | 140°F |
| Application: | Water |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Max Pressure (PSI)
Connection Type
Material
Max Temp (F)
CURRENT ITEM
1/2"
150
NPT x Sweat
C x C
NPT x NPT
Sweat x NPT
C x C
NPT x NPT
Sweat x NPT
Brass
140°F
You May Also Need
Product Reviews
4.5 out of 4 reviews
75% would recommend this product
5 star
75%
4 star
0%
3 star
25%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Made in Germany
well built, easy to install, and comes with click-on insulation that I didn't realize was included
heat pump nut
Milwaukee, WI
3 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Jury is still out on this one
This valve acts a little spurious. When filling with it it likes to spit out the backflow preventor discharge upon initiation of fill pump and shutoff of fill pump. The pressure adjustment is very clunky also. Also had to reseat the provided input and output connectors a couple times to get them to seal. I also don't like that the manual says you need input pressure to be twice whatever you want set as output pressure, that's a little unrealistic in alot of cases. But, it's working. We'll see over the long haul. I'm not about to tear it out...yet.
73blazer
Houghton, MI
8 years ago
Verified Buyer
Was this review helpful to you?
So far so good
Needed to replace both pressure reducer and backflow and this seemed a simple way to do it. Product seems to be high quality. The ability to choose between sweat or NPT was also a nice touch.
Erik K
Pittsburgh
8 years ago
Was this review helpful to you?
unique with high quality German manufacutre
Nothing like this from any other manufactures. pretty ingenious and convenient design, the quality is superior. Haven't install it yet, so the long term reliability will be attested.
JJ
Boston, MA
8 years ago
Verified Buyer
Was this review helpful to you?
