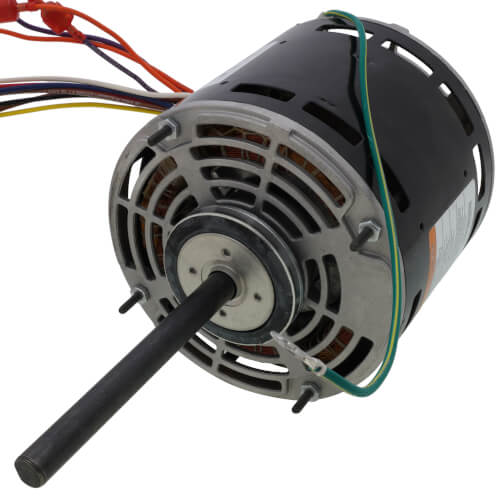

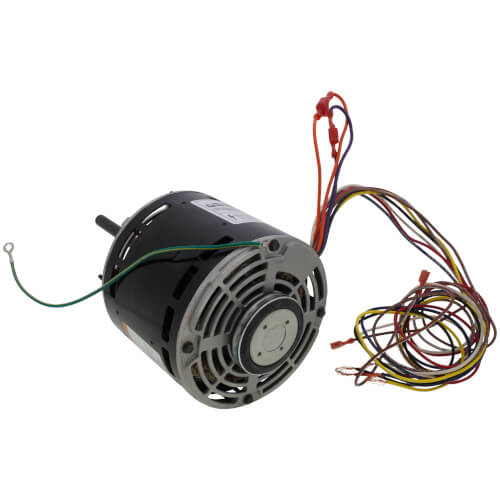

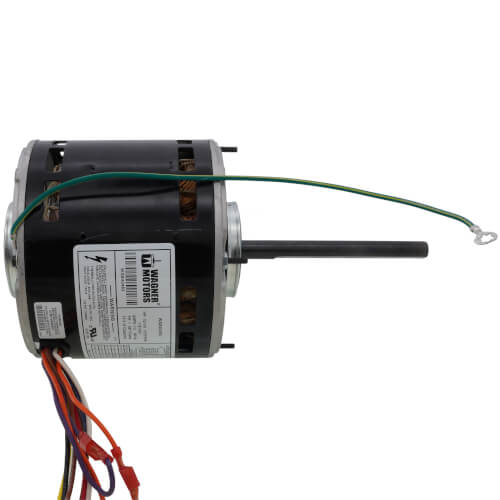

PSC Multi HP Furnace Blower Motor (1075 RPM, 115 VAC)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$91.85 each
In Stock
Get 401 Thu, Jul 31
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1075 RPM
CW/CCW
1/2, 1/6 HP
Shaft up, shaft down, or belly band
7, 6.7 Amps
Description
–
The Multi-Horsepower motors are specially designed to cover a range of applications. The direct drive furnace blower motors range from 1/2 to 1/6, all in 115 volts at 1075rpm. These motors feature reversing plugs, extended thru bolts 36 inch leads and are designed for 370 volt capacitors. Installs with all 48 mounting brackets.
Specs
–
| Motor: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/2 1/6 |
| Voltage: | 115V |
| Amperage: | 7 6.7 |
| RPM: | 1075 |
| Speeds: | 3 |
| Capacitor: | 370 VAC |
| Hertz: | 60 |
| Insulation Class: | B |
| Mount: | Shaft up, shaft down, or belly band |
| Finish: | Grey-green powdercoat |
| Frame Size: | 48 |
| Rotation: | CW/CCW |
| Temperature Rating: | 60 deg C / 140 deg F |
| Lead Wire Length: | 38" 35" |
| Lead Wire Gauge: | #18 AWG |
| Shaft Diameter: | 1/2" |
| Shaft Length: | 4-1/2" |
| Shaft Flats: | One flat |
